8.3 Abmessungen und Gewichte
8.3.1 Gehäuse

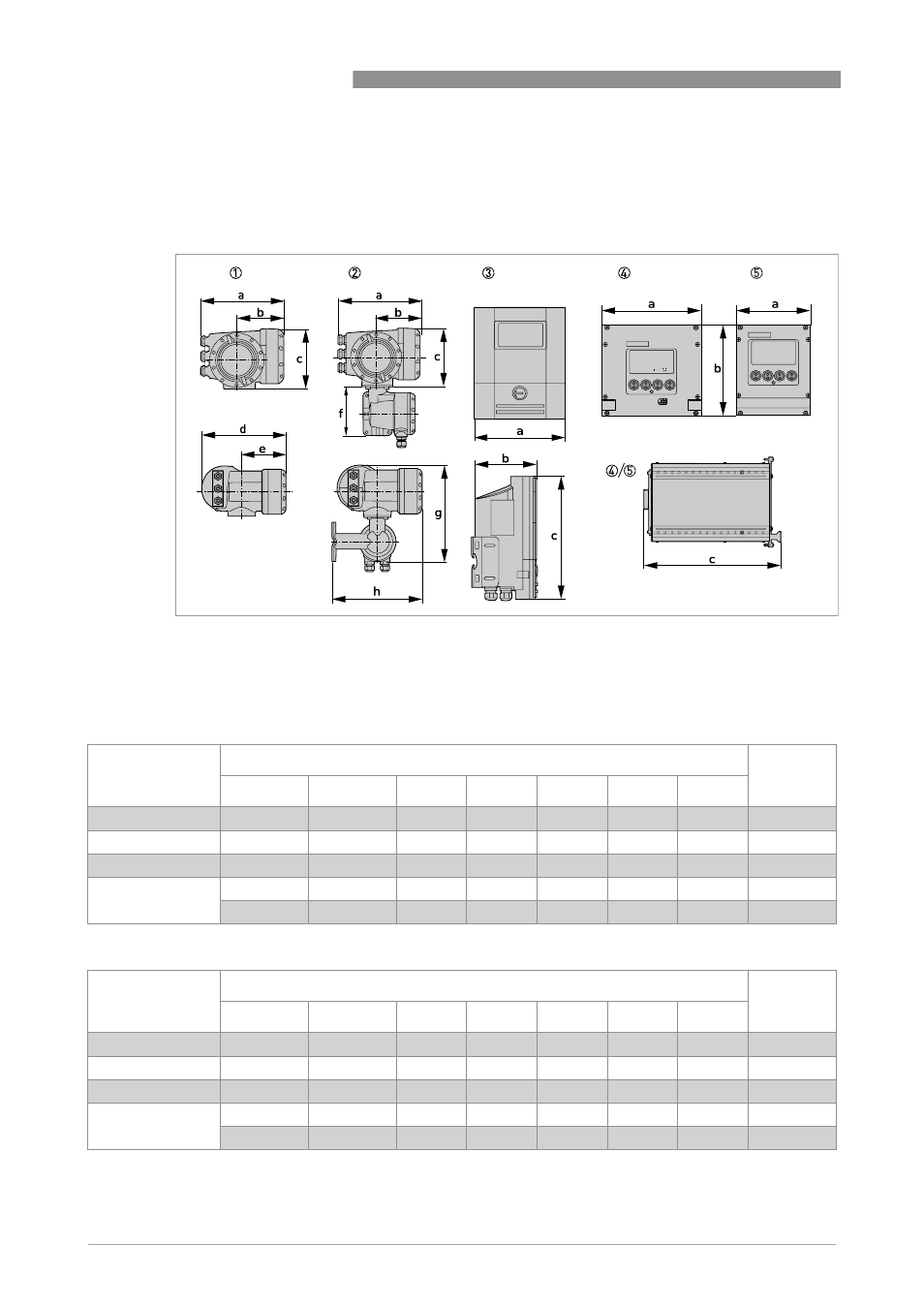

Abmessungen und Gewichte in mm und kg
Abmessungen und Gewichte in Zoll und lb
1 Kompakt-Ausführung (C)
2 Feldgehäuse (F) - getrennte Ausführung
3 Wandgehäuse (W) - getrennte Ausführung
4 19" Einschubgehäuse 28 TE (R) - getrennte Ausführung
5 19" Einschubgehäuse 21 TE (R) - getrennte Ausführung
Ausführung
Abmessungen [mm]
Gewicht
[kg]
a
b
c
d
e
g
h
C
202
120
155
260
137
-
-
4,2
F
202
120
155
-
-
295,8
277
5,7
W
198
138
299
-
-
-
-
2,4
R
142 (28 TE)
129 (3 HE)
195
-
-
-
-
1,2
107 (21 TE)
129 (3 HE)
190
-
-
-
-
0,98
Ausführung
Abmessungen [Zoll]
Gewicht
[lb]
a
b
c
d
e
g
h
C
7,75
4,75
6,10
10,20
5,40
-
-
9,30
F
7,75
4,75
6,10
-
-
11,60
10,90
12,60
W
7,80
5,40
11,80
-
-
-
-
5,30
R
5,59 (28 TE)
5,08 (3 HE)
7,68
-
-
-
-
2,65
4,21 (21 TE)
5,08 (3 HE)
7,48
-
-
-
-
2,16
