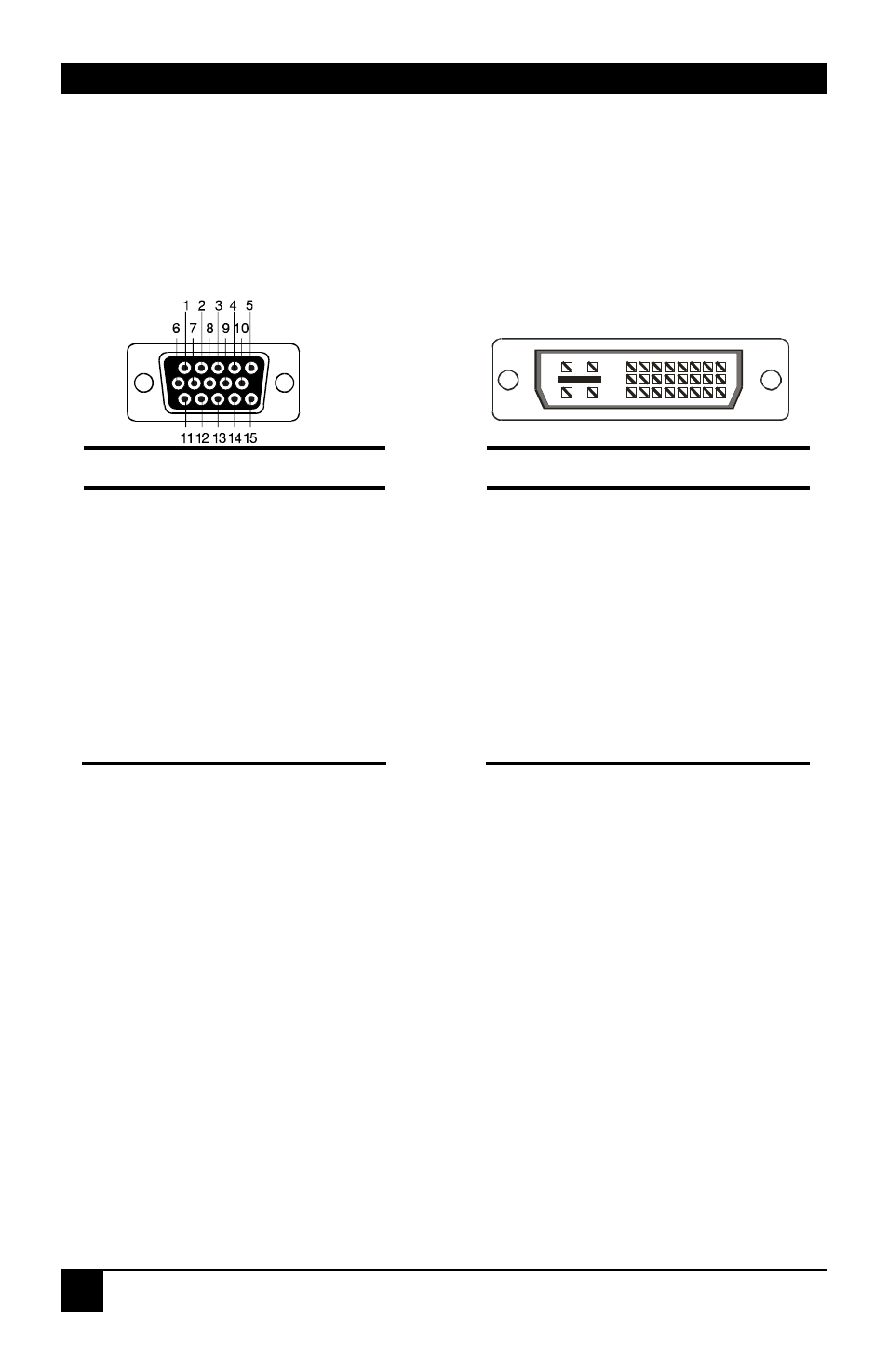

Local Unit VGA/DVI Adapter
CPU Grafik Karte: HD15 Stecker Local Unit: DVI-I Buchse
Pin Signal Pin Signal
15 DDC Input (SCL) 6 DDC Input (SCL)
12 DDC Output (SDA) 7 DDC Output(SDA)
14 Analog VSYNC 8 Analog VSYNC
1 Analog Red C1 Analog Red
2 Analog Green C2 Analog Green
3 Analog Blue C3 Analog Blue
13 Analog HSYNC C4 Analog HYSNC
6,7,8 Analog GND C5 Analog GND
8 C1 C2
24 C3 C4
1
17
C5
