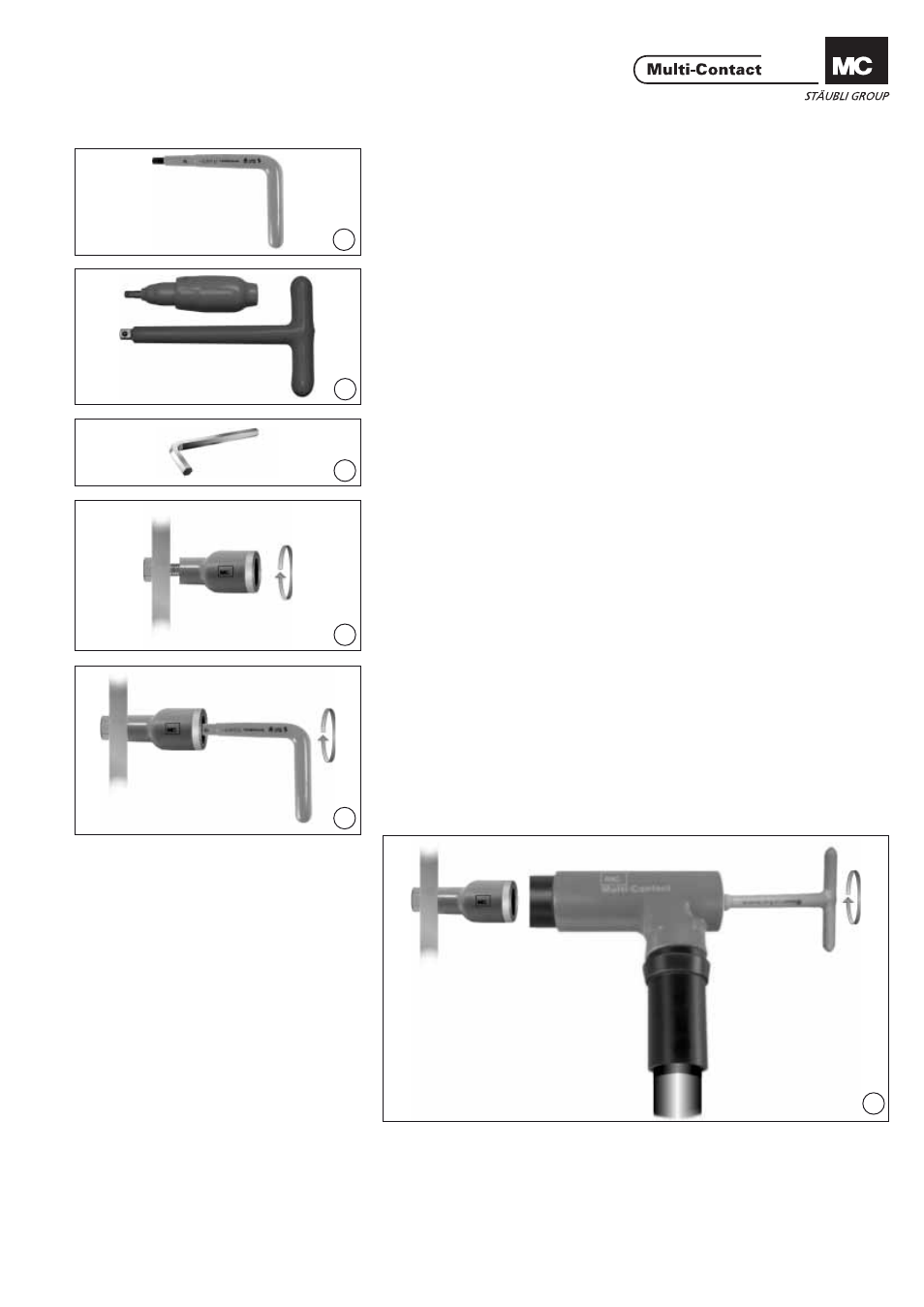

Notwendiges Werkzeug Tools required
(ill. 1)
6-kant Winkelschlüssel SW12, isoliert,
Bestell-Nr.: 19.5520 (ill. 1)
Hexagonal right angle wrench size 12,
insulated, Order No.: 19.5520
(ill. 2)
Isolierter 6-kant Schlüssel CLC mit
Drehmomentbegrenzer,
Bestell-Nr.: 19.5509 (ill. 2)
Insulated hexagonal wrench CLC with
torque limiter, Order No.: 19.5509
(ill. 3)
6-kant Schlüssel BTR6. (ill. 3)
Hexagonal wrench BTR6.
Montage Connection
(ill. 4)
Adapter von Hand auf den M8
Schraubbolzen schrauben. (ill. 4)
Screw adapter onto the M8 threaded
bolt by hand.
(ill. 5)
Adapter mit dem 6-kant Winkelschlüs-
sel anziehen. (ill. 5)
Tighten adapter with the right-angle
hexagonal wrench.
(ill. 6)
Den CV400 mit Hilfe des 6-kant
Schlüssels mit Drehmomentbegrenzer
oder mit dem 6-kant Winkelschlüssel
BTR6 auf den Adapter schrauben. (ill. 6)
Screw the CV400 onto the adapter us-
ing the hexagonal wrench with torque
limiter or by means of the right-angle
hexagonal wrench BTR6.
