Multi-Contact MA081 - Handbuch

Advanced Contact Technology
www.multi-contact.com 1 / 8

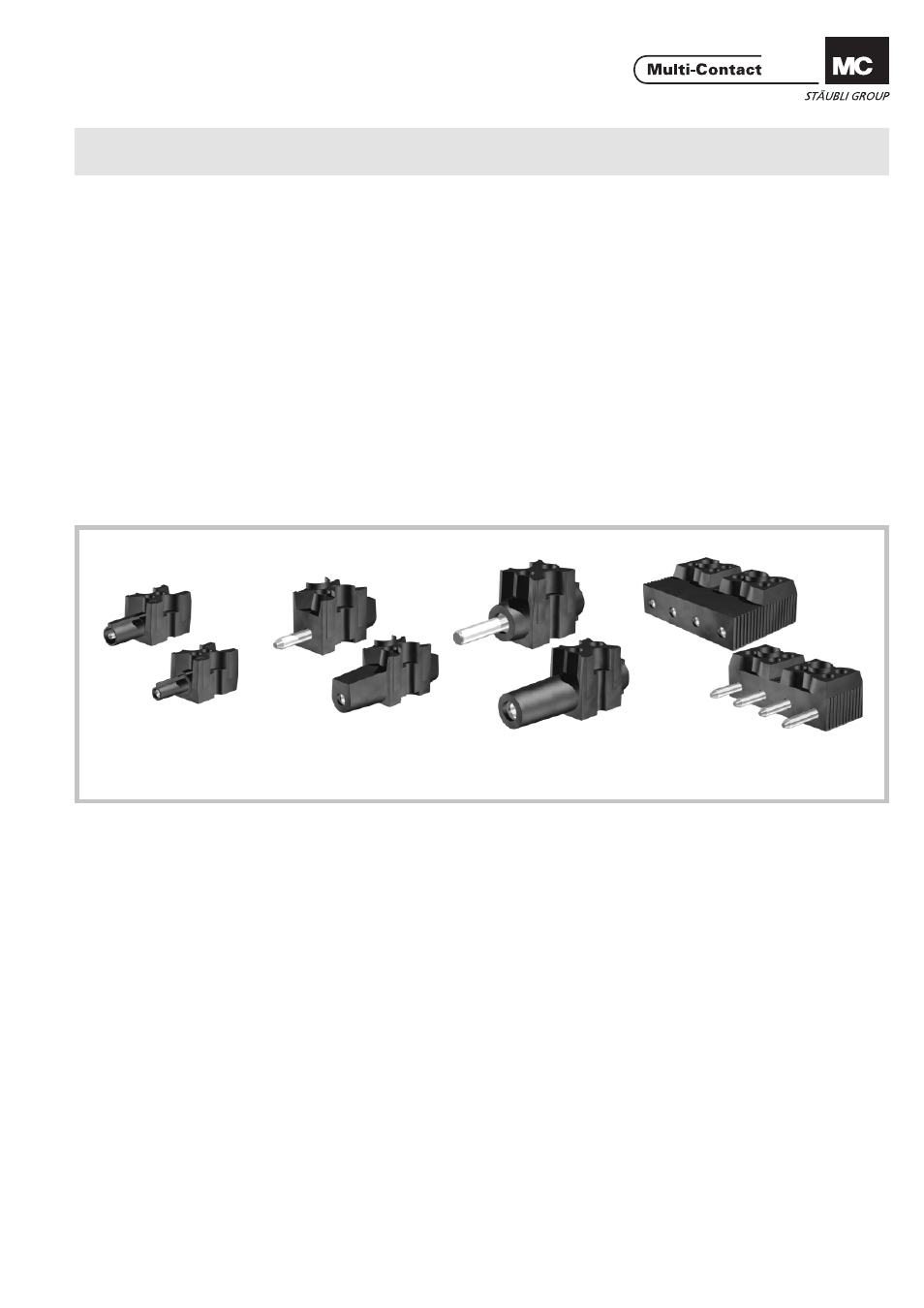

P1/30... P1/100... P1/63...
P4/50...
P4/63...
MA000 (de_en)
Montageanleitung MA000 (de_en)
Assembly instructions MA081 (de_en)
Montageanleitung MA081 (de_en)
Assembly instructions
Buchsen- und Steckerleisteelement P1/30...,
P1/63..., P1/100..., P4/50... und P4/63... mit
Schraubklemmenanschluss und Crimpanschluss Socket and plug module P1/30..., P1/63...,
P1/100..., P4/50... and P4/63... with screw termi-
nation and with crimp termination
Inhalt
Sicherheitshinweise....................................................................2
Erforderliches Werkzeug ...........................................................3
Vorbereitung der Leitung ...........................................................3
Montage mit Schraubklemmenanschluss .................................3
Montage mit Crimpanschluss ...................................................4
Maximaler Versatz beim Einbau ................................................5
Montageanordnung für Bemessungsspannungen
von 500V und 600V .................................................................5
Befestigungsmaterial .................................................................6
Notizen ......................................................................................7 Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Cable preparation ......................................................................3
Assembly with screw termination .............................................3
Assembly with crimp termination ............................................4
Maximum mounting offset ........................................................5
Mounting for rated voltage
500V and 600V ........................................................................5
Fixing material ...........................................................................6
Notes .........................................................................................7
