KTM FAHRGESTELL 400/620 - Handbuch (Seite 25)

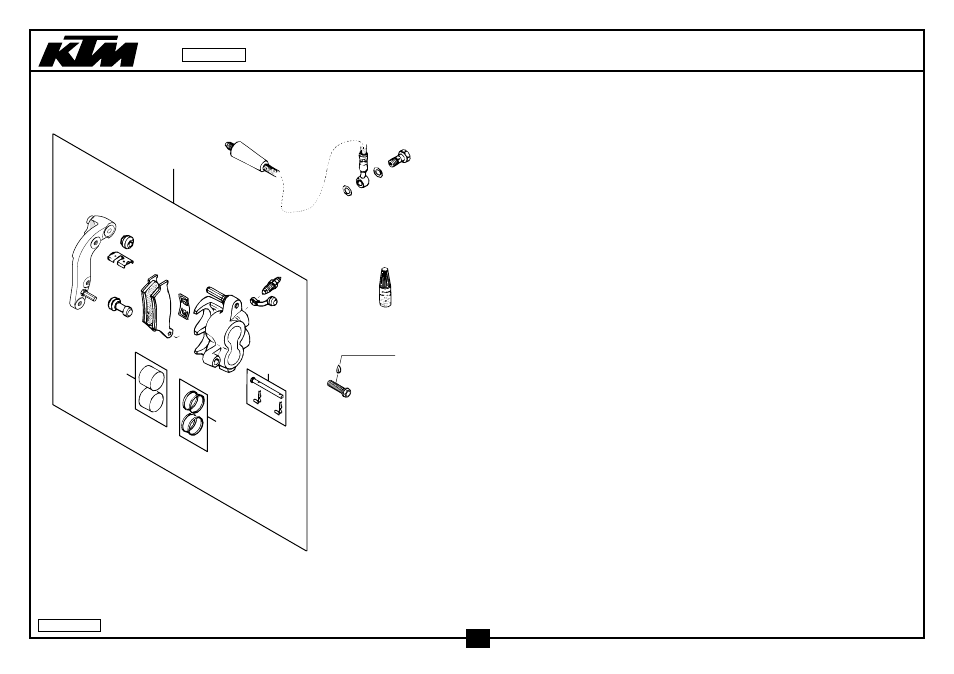

BREMSZANGE VORNE BRAKE CALIPER FRONT 400/620 ‘99
21
30
31
35
1
12
12
9
8
8
10
6
5
7
VORNE
FRONT
15
LOCTITE 242
60
99-583.13.5
23
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 590.13.015.044 BREMSZANGE VORNE KPL.BREMBO’99 BRAKE CALIPER FRONT BREMBO ‘99 1
5 546.13.205.000 REPARATURSATZ 28MM REPAIR KIT 28MM 1
6 546.13.206.000 REPARATUR SATZ KOLBEN 28MM REPAIR KIT PISTON 28MM 1
7 546.13.210.100 BOLZEN KPL. 6X56 BOLT CPL. 6X56 1
8 546.13.212.000 HALTEBLECHE GARNITUR BREMBO RETAINING PLATE SET BREMBO 1
9* 503.13.030.000 GARN.BREMSKLÖTZE TOSHIBA H38 BRAKE PAD SET TOSHIBA H38 1
9 546.13.209.044 GARN. BREMSKLÖTZE FERODO ID450 BRAKE PAD SET FERODO ID450 X
10 545.13.214.000 ENTLÜFTUNGSSCHRAUBE M10X1 BLEEDER SCREW M10X1 1
12 546.13.218.000 MANSCHETTENSATZ CUP SET SHORT 1
15 0015 080353 SK.BUNDSCHRAUBE M 8X35 SW=10 HH COLLAR SCREW M 8X35 WS=10 2
21* 583.13.011.100 BREMSSCHLAUCH VO.WP 1290MM ‘99 BRAKE HOSE FRONT WP 1290MM ‘99 1
30 420.13.226.000 CU-DICHTRING DIN7603-10X16X1 CU-SEAL RING DIN7603-10X16X1 2
31 420.13.026.000 CU-DICHTRING DIN7603-10X16X1,5 CU-SEAL RING DIN7603-10X16X1,5 2
35 502.13.025.000 HOHLSCHRAUBE M10X1X19 HOLLOW SCREW M10X1X19 1
60 6 899 785 LOCTITE 242 BLAU 6CCM LOCTITE 242 BLUE 6CCM 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
99-583.13.5
