KTM FAHRGESTELL 400/620 - Handbuch (Seite 7)

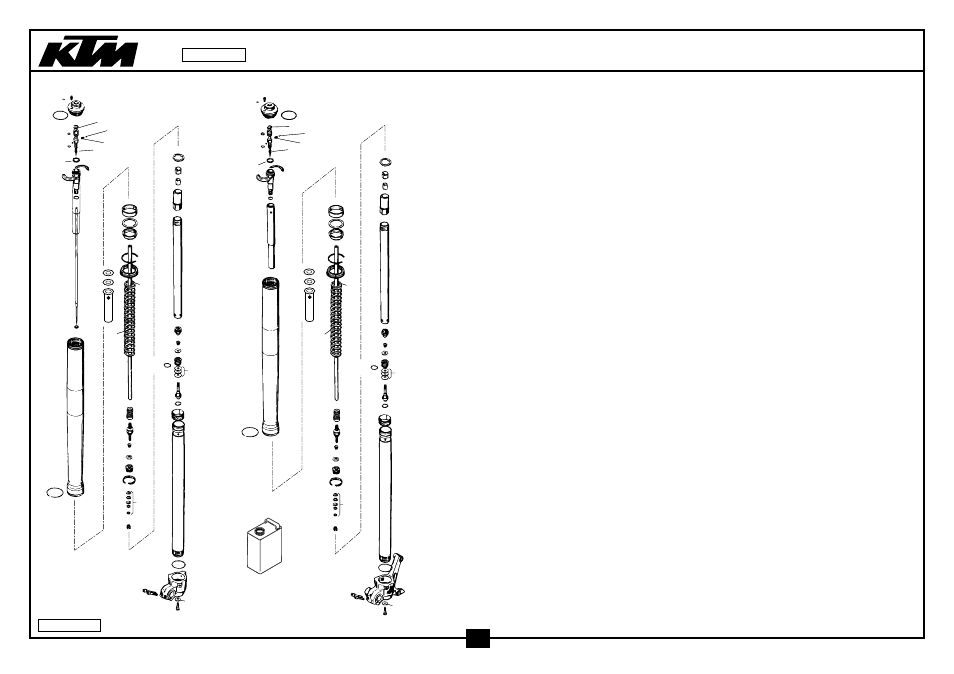

GABELBEINE WP USD43 FORK LEGS USD43 400/620 ‘99
5 LITRE
5 L IT R E
3
2
3
1
4
4
4 4 5 5
8
8
9
9
12
13
14
12
13
14
16 16
20
21
21
22
22
25
25
31
34
35
34
35
36
36
40
30
6
63
66
67
68 68
67
66
63
6
7
10
10
10
10 15
17
18
19
17
18
19
41
43
44
37 37
38
32
33
70 70
45
69 69
45
46
47
48
49
46
47
48
49
50 50
51
52
53
54
55
56
57
58
51
52
53
54
55
56
57
58
59
60
56
62
20
41
42
44
59
60
56
62
64 65
99-583.01.3
5
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 4054.1269 VERSCHLUSSCHRAUBE M49X1,5 COMP SCREW CAP M49X1,5 COMP 1
2* 4054.1273 VERSCHLUSSKAPPE M49X1,5 ZUGST. SCREW CAP M49X1,5 REBOUND 1
3* 4054.0026 O-RING NBR 43X3 O-RING NBR 43X3 2
4* 4054.0470 HALBMOND KEIL D=47MM SPRINGRETAINER D=47MM 4
5* 4054.0492 GUMMIRING 14,1 X 22 X 4 RUBBER RING 14,1 X 22 X 4 2
6* 4054.1270 LUFT EINSTELLSCHRAUBE AIR ADJUSTING SCREW 2
7* 4054.1246 EINSTELLSCHRAUBE ZUGSTUFE TAP ADJ. REBOUND 1
8* 4357.0091 AUSSENROHR L=577MM D=54/57MM OUTER TUBE L=577MM D=54/57MM 2
9* 4357.0099 DRAHTSPRENGRING D=53MM GUIDING RING D=53MM 2
10* 4054.1257 O-RING NBR 4X2 O-RING NBR 4X2 4
12* 4357.0019 STAUBMANSCHETTE 47 X 43 X 20 DUST BUSH 47 X 43 X 20 2
13* 4357.0092 TRÄGERRING 45 X 52,5 X 1,5 SUPPORT RING 45 X 52,5 X 1,5 2
14* 4357.0009 ÖLDICHTRING 43 X 52,5 X 10,5 OIL SEAL RING 43 X 52,5 X 10,5 2
15* 5060.0083 EINSTELLSCHRAUBE DRUCKSTUFE TAP ADJ. COMPRESSION 1
16* 9601.0045S FEDER 3,8 N/MM SET D=4,75MM SPRING 3,8 N/MM SET D=4,75MM X
16* 9601.0046S FEDER 4,0 N/MM SET D=4,75MM SPRING 4,0 N/MM SET D=4,75MM X
16* 9601.0047S FEDER 4,2 N/MM SET D=4,9MM SPRING 4,2 N/MM SET D=4,9MM 1
16* 9601.0050S FEDER 4,4 N/MM SET D=4,9MM SPRING 4,4 N/MM SET D=4,9MM X
16* 9601.0048S FEDER 4,6 N/MM SET D=5,0MM SPRING 4,6 N/MM SET D=5,0MM X
16* 9601.0049S FEDER 4,8 N/MM SET D=5,0MM SPRING 4,8 N/MM SET D=5,0MM X
17* 4054.0359 VORSPANNBÜCHSE L=2,5MM PRELOAD SPACER L=2,5MM 2
18* 4054.0040 VORSPANNBÜCHSE L=5MM PRELOAD SPACER L=5MM 2
19* 4357.0121 FEDER FÜHRUNG TA SPRING GUIDE TA 2
20* 4054.0851 KOLBENRING 5 X 1 X 62 PISTON RING 5 X 1 X 62 2
21* 4357.0020 STAUBMANSCHETTE 43,8 X 43 X 20 DUST BUSH 43,8 X 43 X 20 2
22* 4357.0089 GABELHOLM D=43MM L=600MM INNER TUBE D=43MM L=600MM 2
25* 4357.0023 O-RING NBR 41X2 O-RING NBR 41X2 2
30* 4357.0087 GABELFAUST LI. USD43 260MM ‘99 AXLE CLAMP L/S USD43 260MM ‘99 1
31* 4357.0086 GABELFAUST RECHTS USD43 M8 ‘99 AXLE CLAMP R/S USD43 M8 ‘99 1
32* 4054.1267 O-RING NBR 3X1 O-RING NBR 3X1 1
33* 4054.1374 NADEL ZUGSTUFE D=4MM L=542MM REBOUND NEEDLE D=4MM L=542MM 1
34* 4681.0360 KUPFERSCHEIBE 8X12X1,5 WASHER COPPER 8X12X1,5 2
35* 5060.0130 SK-BUNDSCHRAUBE M8X20 SW=13 HH-COLLAR SCREW M8X20 WS=13 2
36* 5060.0061 SK BUNDSCHRAUBE M 8X30 HH COLLAR SCREW M 8X30 4
37* 4054.1373 KOLBENSTANGE M9X1 L=528MM PISTON ROD M9X1 L=528MM 2
38* 4054.1376S HYDR.STOP L=222,5MM KPL. COMP. HYDR.STOP L222,5MM KPL. COMP. 1
40* 4054.0882 GABELÖL REZ 71 SAE 5 FORKOIL REZ 71 SAE 5 1
41* 4054.1346 FEDER ZUGSTUFE C=60N/MM REBOUND SPRING C=60N/MM 2
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
99-583.01.3
