KNF Motor M 56 Ex
Installation and connection
Translation of orignal Operating and Installation Instructions, english, KNF 121220-121648 01/13
14
5. Close the terminal box cover.
Î
Keep the inside of the terminal box clean.
Î
The seals must be unblemished and correctly seated.
6. Tighten the clamping screw (compression screw) on the cable
gland with a torque of 2.5 Nm.
7. Close open bores in the terminal box with certified plugs.

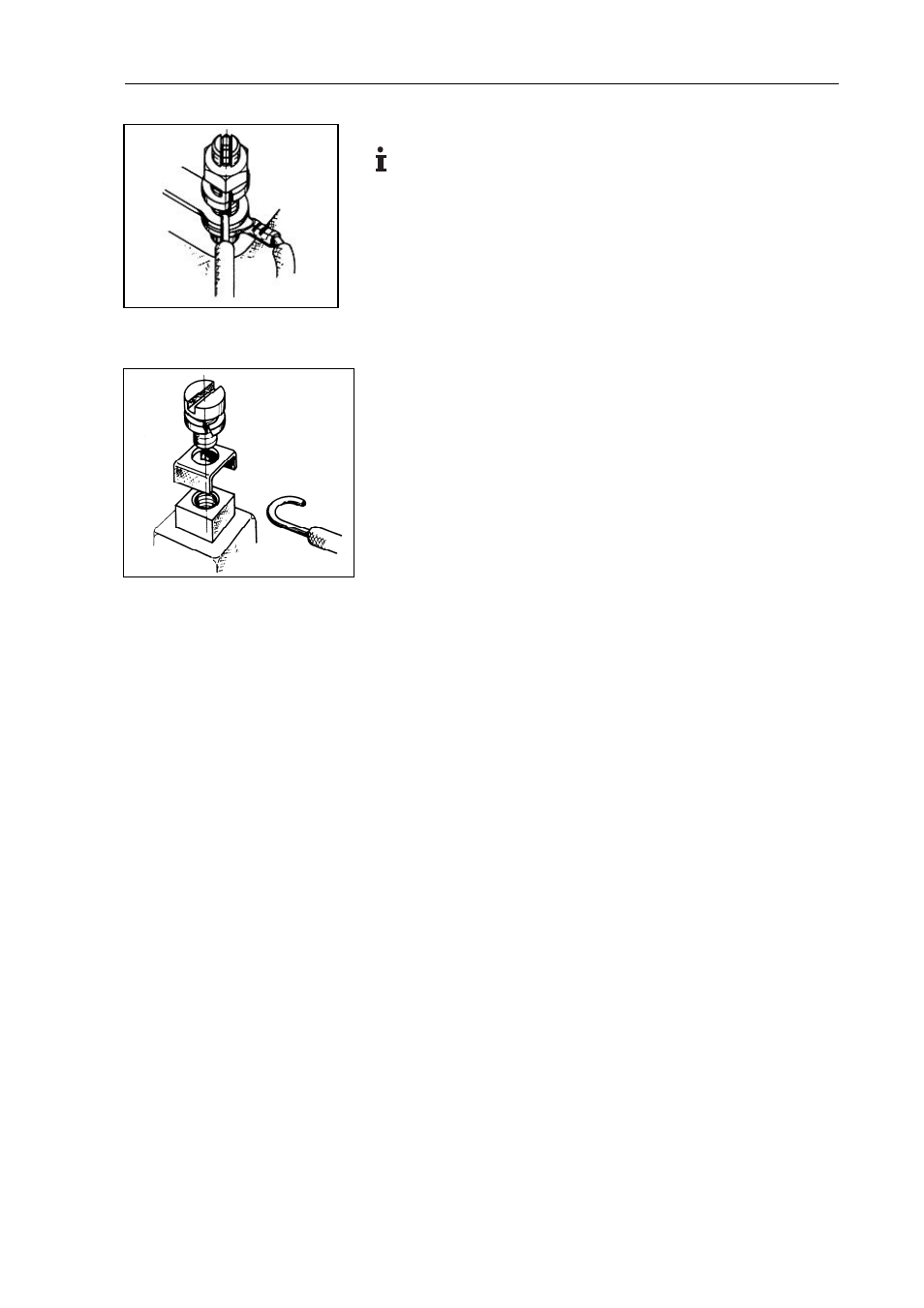

Fig. 6: Connection to the slotted
terminals
Fig. 7: Protective ground
lead connection
