The DLV-Power expansion
G&D DL-Vision(M/S) · 47
English

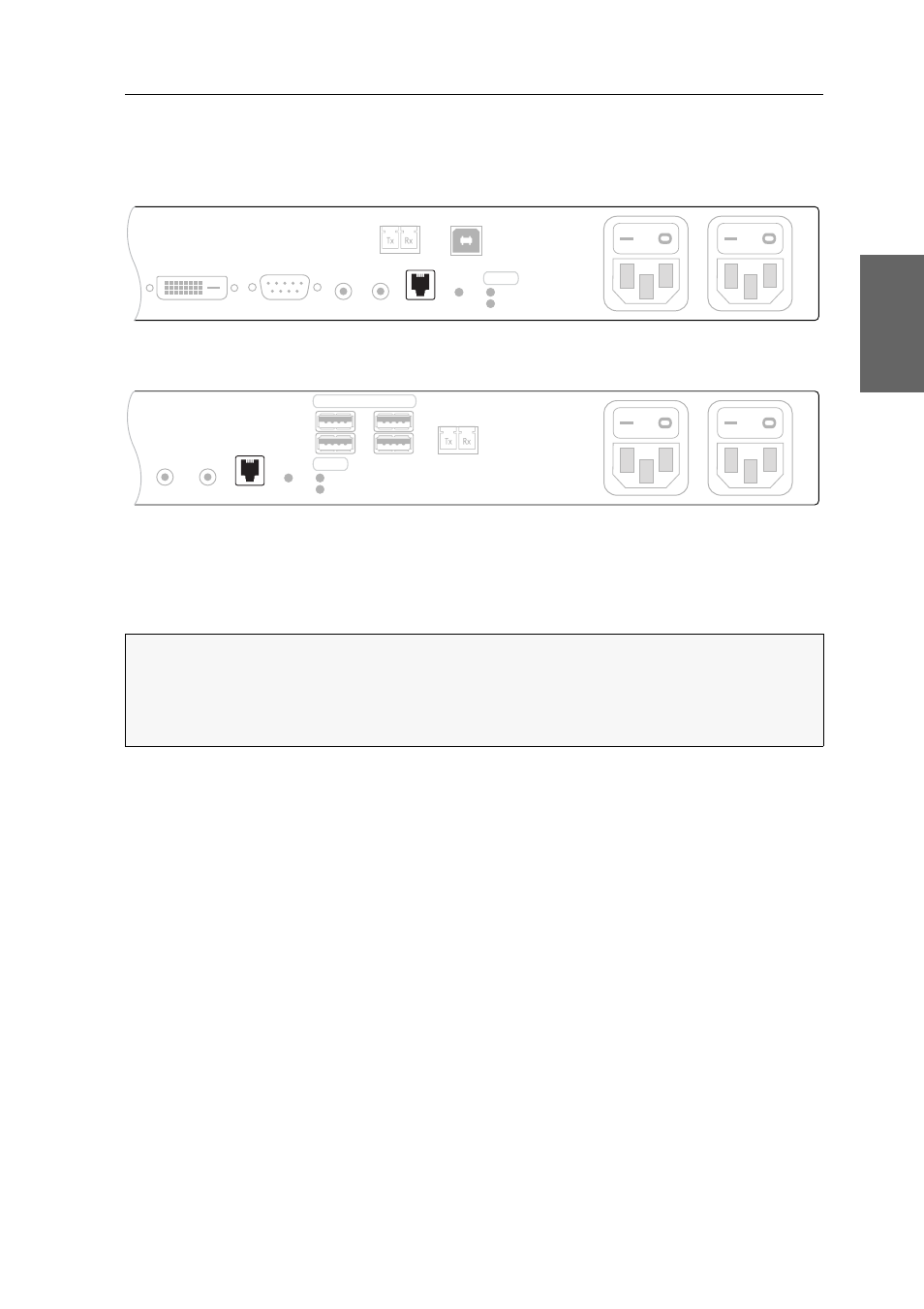

Connecting the G&D Power Card and the panel with the modules
Power Card: Connect this interface of the computer module to the interface on the
back panel of the G&D Power Card
Control Panel: Connect the panel cable to this interface at the user module.
Operating the DLV-Power expansion
The functions of the panel buttons correspond to the functions of both the ATX-Power
button and the Reset button at the computer casing.
Depending on the BIOS setting of the computer, in some cases the panel’s ATX-
Power button has to be pressed for five seconds to turn off the computer.
If necessary, check and change the respective setting in the BIOS of the computer
to deactivate the delay.
Power Card
USB 2.0 CPU
Red. Power Main Power
RS232 DVI-D DL CPU Line In Line Out
Power
Red.
Main
USB 2.0 Trans.
Ident.
Control Panel
Red. Power Main Power
Micro In Speaker
USB 2.0 Devices USB 2.0 Trans.
Power
Red.
Main
Ident.
