Encoder outputs
The IK 220 also feeds the encoder signals from inputs X1 and
X2 as sinusoidal current signals (11 µA
PP
) to two 10-pin

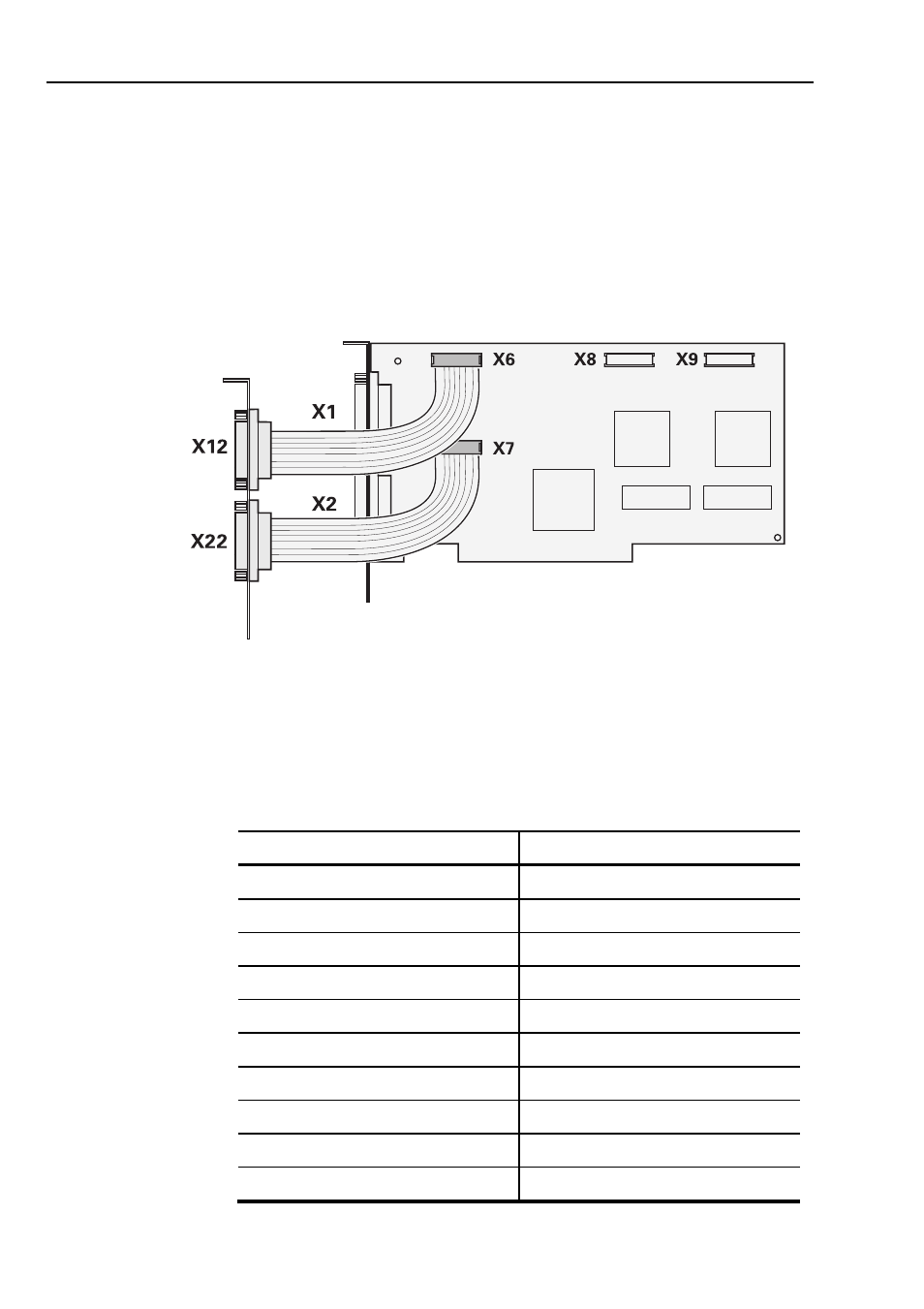

MICROMATCH connectors (female) on the PCB. An additional
cable assembly with PC slot cover (Id. Nr. 340 252-01) can be
used to lead these connections out to 9-pin D-sub connectors.
Adapter cables (Id. Nr. 309 781-xx) for connecting HEIDENHAIN
position displays and interpolation units are available (see
“Items supplied” and “Accessories”).
The maximum cable length depends on the input circuit of the
subsequent electronics.
Plug-in PCB for encoder outputs
Connections X6, X7
MICROMATCH with female contact 10-pin
Connection no.
1)
Signal
1a I
1
-
1b I
1
+
2a
0 V (U
N
)
2b Not
assigned
3a I
2
-
3b I
2
+
4a Not
assigned
4b I
0
+
5a I
0
-
5b Not
assigned
1)
Pin 1a is located on the side with the polarizing key.
Encoder outputs
11 µA
PP
