Hardware
80

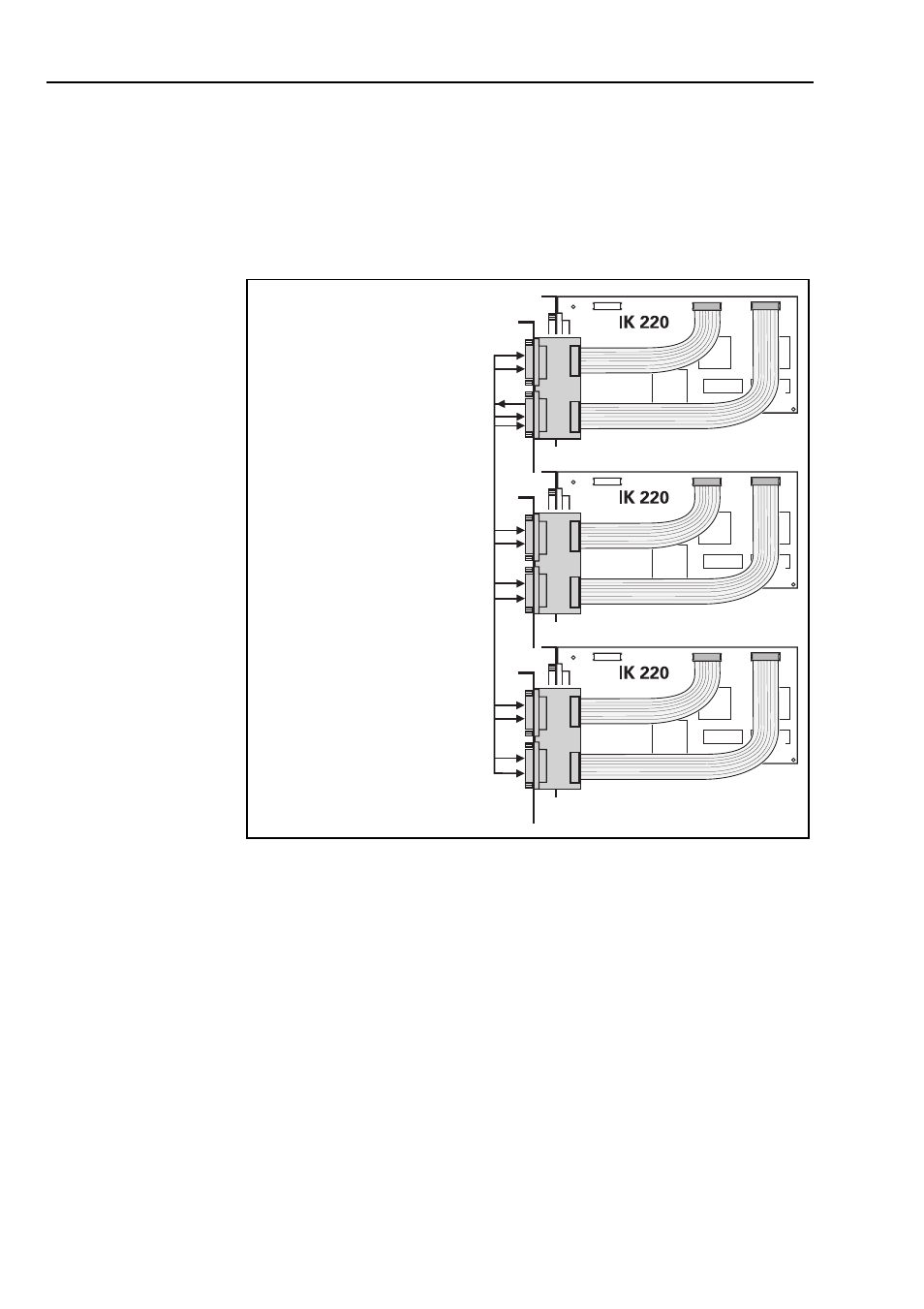

Latching the measured values of more than one IK 220
For the measured values of all axes of more than one IK to be
saved simultaneously, the output signal -Lout 2 must be led to
all corresponding encoder inputs (-L0 or -L1), even to the input
from which -Lout 2 is led. This enables latching on all axes
simultaneously — without differences in run time.
X11 Pin 2 (-L0) or Pin 3 (-L1)
X21 Pin 1: -Lout 2
X21 Pin 2 (-L0) or Pin 3 (-L1)
X11 Pin 2 (-L0) or Pin 3 (-L1)
X21 Pin 2 (-L0) or Pin 3 (-L1)
X11 Pin 2 (-L0) or Pin 3 (-L1)
X21 Pin 2 (-L0) or Pin 3 (-L1)
