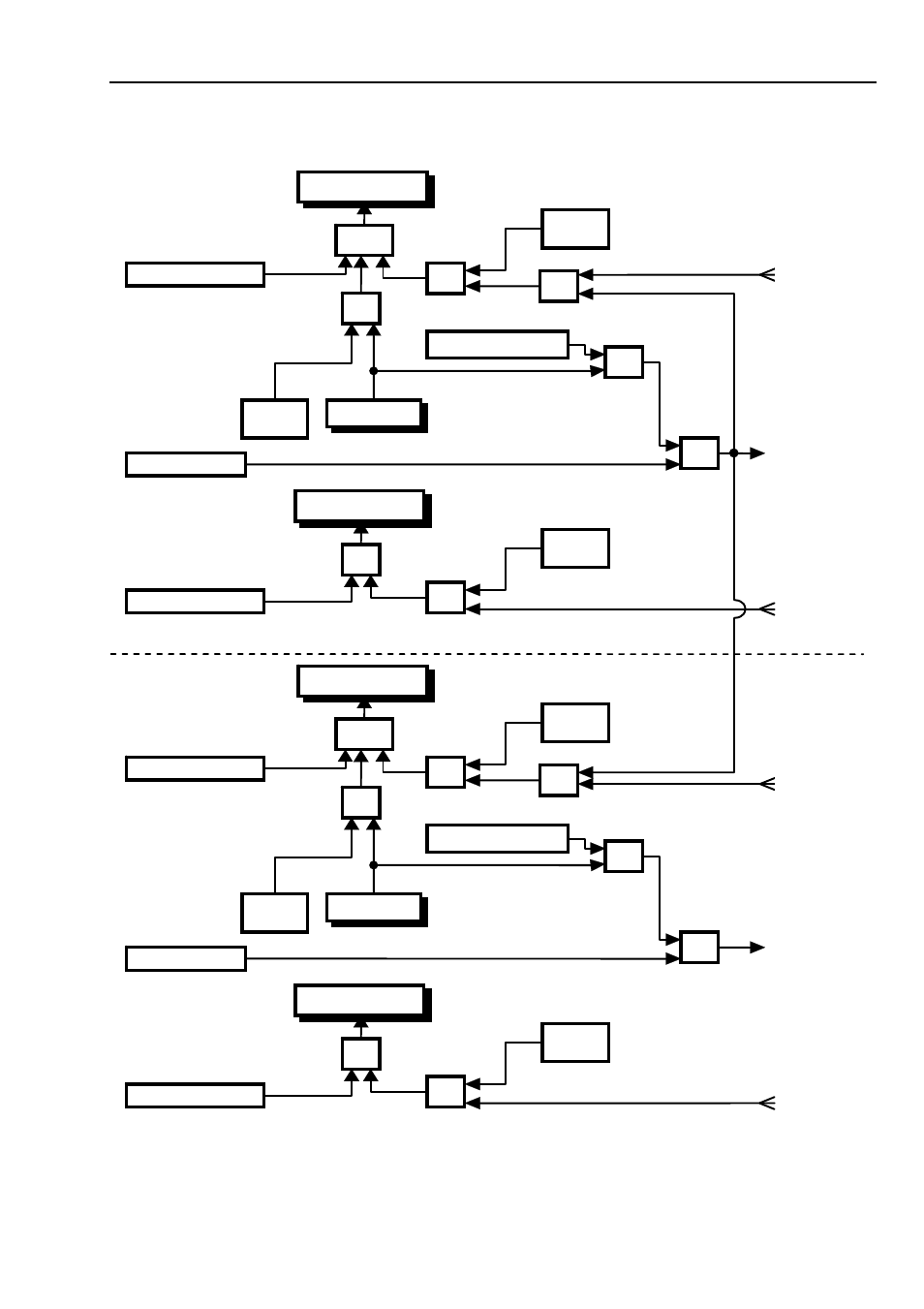

Flow chart: Saving measured values
Latch 0
OR
&
Software latch 0
&
Par. 14
Bit 0
Timer
Par. 14
Bit 1
IK220ModeTimer
IK220LatchInt
-Lout 1 X11/1
-L0 X11/2
Latch 1
Software latch 1
OR
-L1 X11/3
&
Par. 14
Bit 2
OR
&
OR
Latch 0
OR
&
Software latch 0
&
Par. 14
Bit 0
Timer
Par. 14
Bit 1
IK220ModeTimer
IK220LatchExt
-Lout 2 X21/1
-L0 X21/2
Latch 1
Software latch 1
OR
-L1 X21/3
&
Par. 14
Bit 2
OR
&
OR
Axis 0
Axis 1
