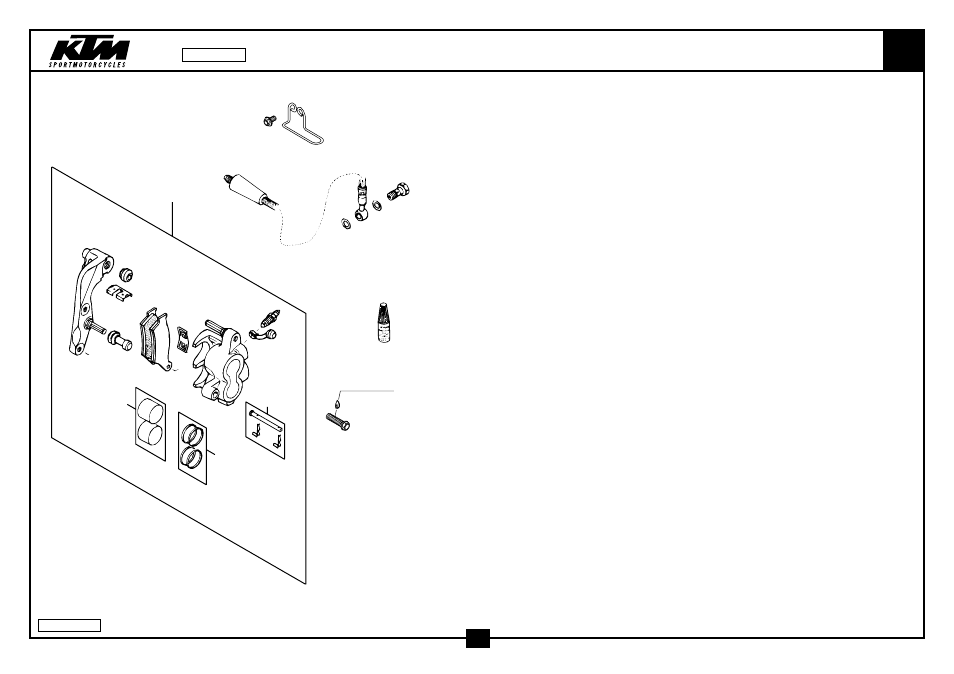

BREMSZANGE VORNE BRAKE CALIPER FRONT 640
21
30
31
35
1
12
12
9
8
8
10
6
5
7
VORNE
FRONT
15
17 18
LOCTITE 242
60
98-582.13.2
23
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1 584.13.015.044 BREMSZANGE VO. KPL. 2KOLBEN’98 BRAKE CALI.FRONT CPL. 2 PISTON 1
5 546.13.205.000 REPARATURSATZ 28MM REPAIR KIT 28MM 1
6 546.13.206.000 REPARATUR SATZ KOLBEN 28MM REPAIR KIT PISTON 28MM 1
7 546.13.210.100 BOLZEN KPL. 6X56 BOLT CPL. 6X56 1
8 546.13.212.000 HALTEBLECHE GARNITUR BREMBO RETAINING PLATE SET BREMBO 1
9 584.13.030.000 GARN.BREMSKLÖTZE TEXTART4069GF BRAKE PAD SET TEXTAR T4069 GF 1
10 545.13.214.000 ENTLÜFTUNGSSCHRAUBE M10X1 BLEEDER SCREW M10X1 1
12 546.13.218.000 MANSCHETTENSATZ CUP SET SHORT 1
15 0015 080353 SK.BUNDSCHRAUBE M 8X35 SW=10 HH COLLAR SCREW M 8X35 WS=10 2
17 582.13.010.050 BREMSSCHLAUCHFÜHRUNG ADV.’97 BRAKE HOSE GUIDE ADV.’97 1
18 0014 060103 SK.BUNDSCHRAUBE M 6X10 SW=8 HH COLLAR SCREW M 6X10 WS=8 2
21 582.13.010.000 BREMSSCHLAU. VO.1230MM ADV.’97 BRAKEHOSE FRONT 1230MM ADV.’97 1
30 420.13.226.000 CU-DICHTRING DIN7603-10X16X1 CU-SEAL RING DIN7603-10X16X1 1
31 420.13.026.000 CU-DICHTRING DIN7603-10X16X1,5 CU-SEAL RING DIN7603-10X16X1,5 1
35 502.13.025.000 HOHLSCHRAUBE M10X1X19 HOLLOW SCREW M10X1X19 1
60 6 899 785 LOCTITE 242 BLAU 6CCM LOCTITE 242 BLUE 6CCM 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
98-582.13.2
2000
