Status displays
11 · G&D CATVision-USB 2.0

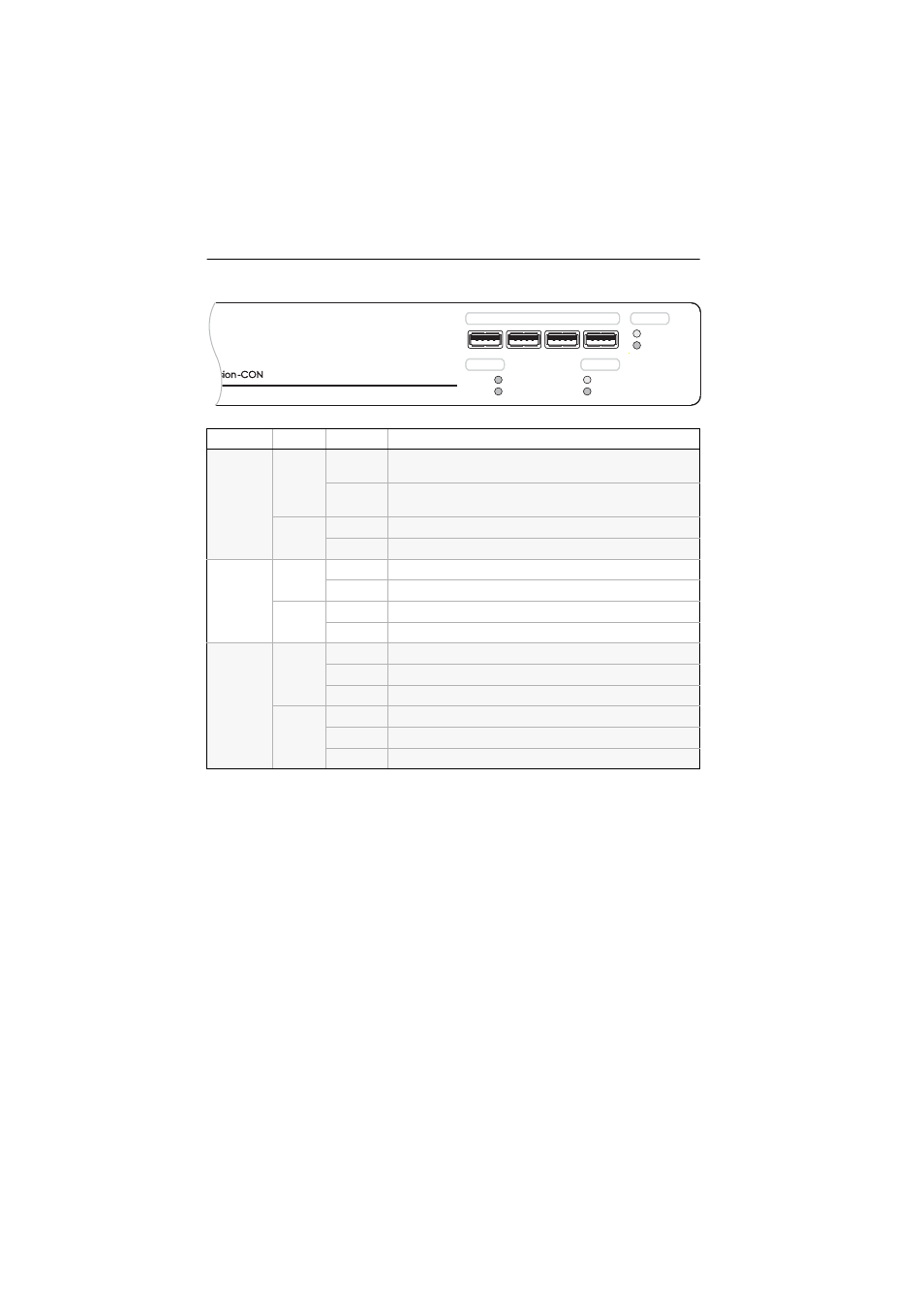

Status displays at the user module (CATVision-CON)
Range
LED
Status
Meaning
Device
Status
on
connection to computer module via twisted pair cable ok and
USB component ready for operation
off
no conenction to computer module possible or USB compo-
nent not ready for operation
Power
on
voltage of USB transmission module ok
off
no voltage at USB transmission module
Power
Red.
on
power pack connected, necessary voltage supplied
off
no power pack connected or no connection to mains
Main
on
power pack switched on, necessary voltage supplied
off
power pack switched off or no connection to mains
Remote
Active
on
remote console active
off
local console active
blinking
no remote console keyboard found
Status
on
device ready for operation
off
no voltage at PS/2 interface and USB bus
blinking
defective internal communication
