Connecting the computers
Line In: I f the audio signals of the computers are to be output over the speakers which are
connected to the KVM switch, use one of the audio connection cables (Audio-M/M) to
connect the computer’s Line Out interface to this interface.
Line Out: If you want to use a microphone or a headset at the console, use one of the
audio connection cables (Audio-M/M) to connect this interface to the computer’s
microphone input.
USB 2.0: Use one of the USB connection cables (USB-AM/BM) to connect one of the
computer‘s USB interfaces to this interface.
DVI-I CPU x.1: Connect the computer‘s video output to this interface.
If the computer provides a DVI-D video output, use a digital video cable
(DVI-D-DL-M/M). In case of an analog VGA output, use an analog video
cable (VGA-M/DVI-A-M).
IMPORTANT: KVM cable sets are required to connect the computers to the KVM
switch. A list of the available KVM cable sets can be found on page 32.
Assign the KVM cable sets to the different computers and place them ready for
installation.
NOTE: To connect the (maximum four) computers to the KVM switch, the inter-
faces as shown below are available for each computer.
The label (e.g.
CPU 1 ) assigns the interface to a specific computer and to the corre-
spondent button on the front panel.

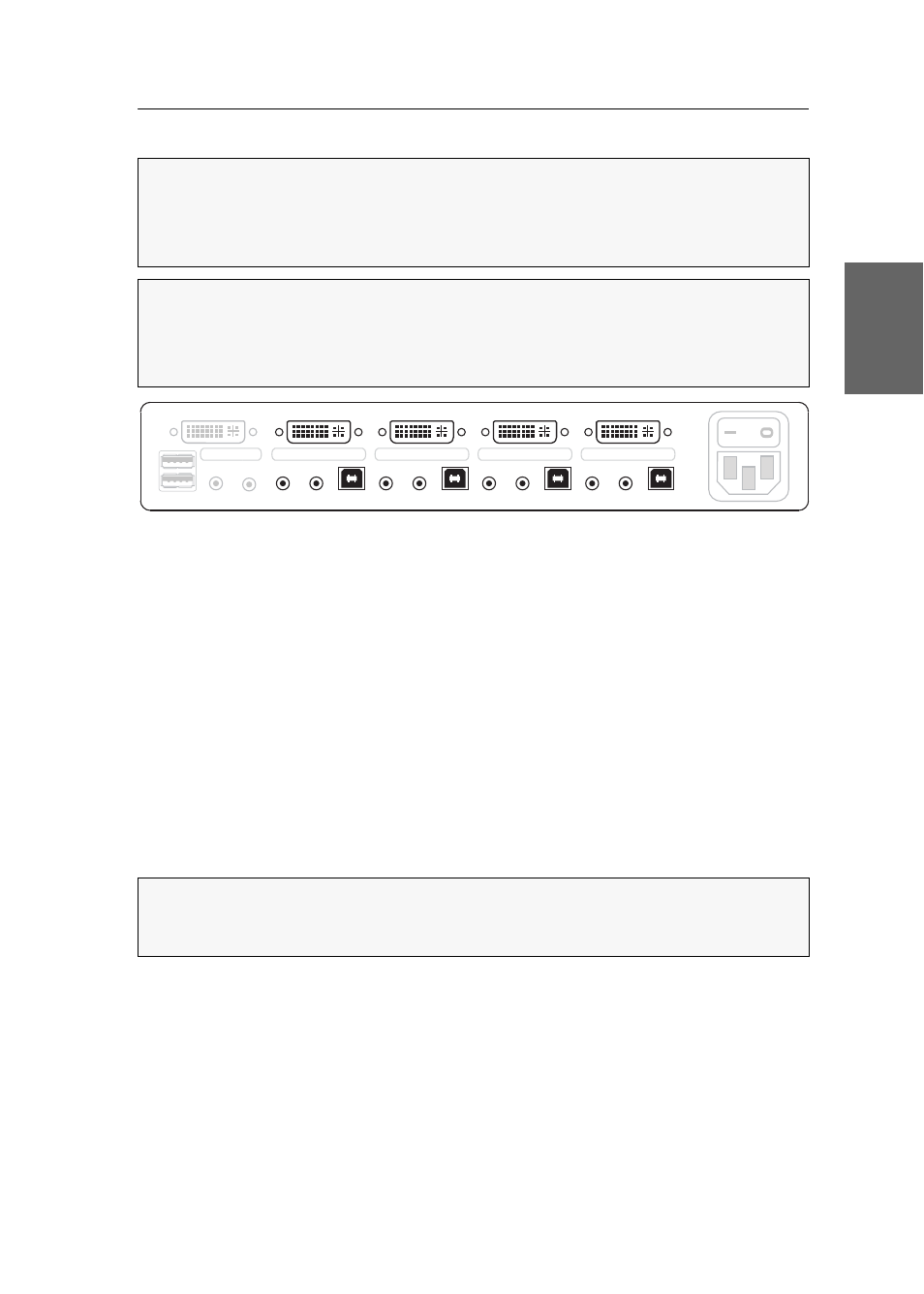

Figure 3: Interfaces to connect the computers
NOTE: When deploying a multi-channel variant of the KVM switch, connect the
computer’s second, third, and fourth video output to the DVI-I CPU 1.x to 4.x ínter-
faces.
