Assembly
FGW 84 A1
GB
CY

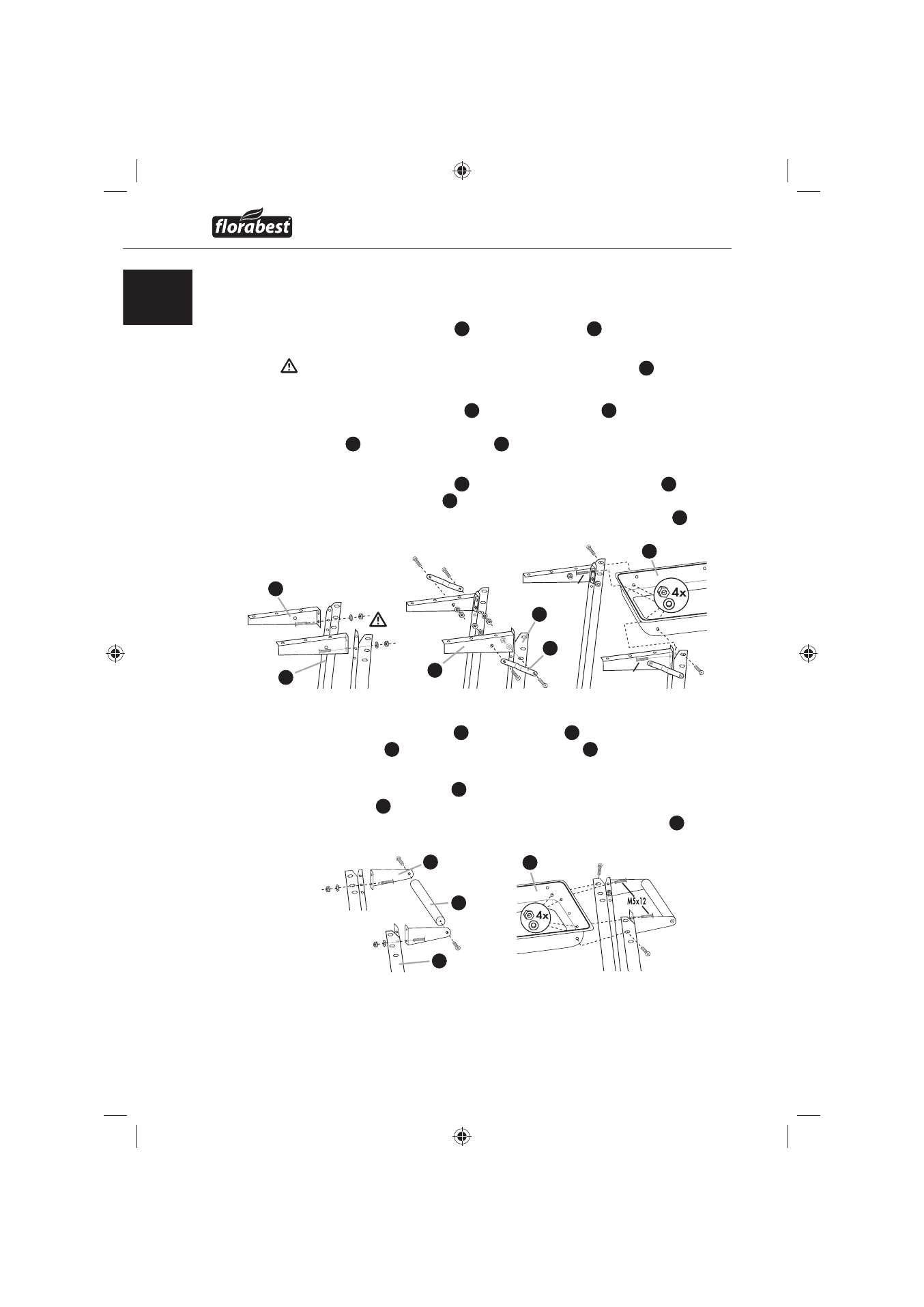

Assembly procedure
Step 1
Connect the storage holder
♦
15
with the wheel brace
14
by means of the
washers Ø 5.4, M5 x 10 screws and nuts M5.
Please take note that only the lower hole of the storage holder
15
is to be
used for the screws.
Secure the reinforcing braces
♦
16
with the wheel braces
14
by means of
the washers Ø 5.4, M5 x 10 screws and nuts M5. Secure the reinforcing
braces
16
with the storage holders
15
by means of the washers Ø 5.4,
M5 x 10 screws and nuts M5.
Assemble the wheel braces
♦
14
, with the assembled storage holder
15
,
to the left of the fi re bowl
6
by means of the washers Ø 5.4, 2 M5x12
screws and nuts M5. For this, use the upper hole in the wheel braces
14
.
M5x10
M5x10
M5x12
M5x12
Step 2
Assemble the handle holder
♦
8
and stand braces
9
as described in step 1.
Fix the handle
7
between the short handle holders
8
and then secure
them by means of the wood screws Ø 4 x 10.
Assemble the stand braces
♦
9
, with the assembled handle, to the right of
the fi re bowl
6
by means of M5 x 12 screws, washers Ø 5.4, M5x10
screws and nuts M5. For this, use the upper hole in the stand braces
9
.
M5x10
M5x10
15
15
14
14
16
6
8
7
9
6
