Installation
Audio-Transceiver-Fiber · 4
English
Installation
Transmitting audio data between a computer and a remote console requires two sig-
nal extenders of the Audio-Transceiver-Fiber series.
Place one signal extender next to a computer. Place the second signal extender next
to the console’s input and output devices.

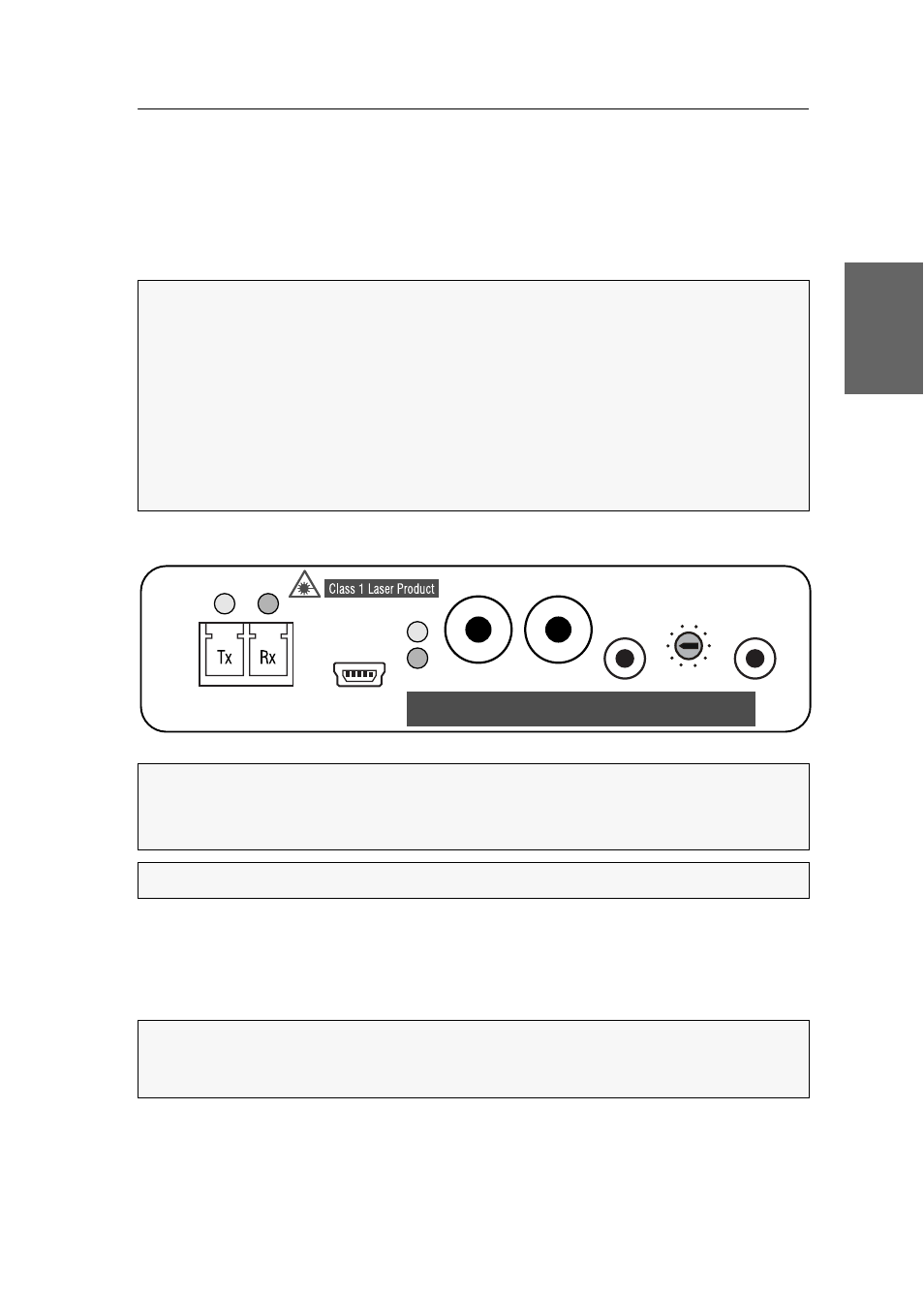

Connecting a signal extender to a computer
Transmission – Tx: Insert the LC plug of a fibre optic cable. Connect the other end of
the cable to the Transmission – Rx interface of the signal extender at the console.
Transmission – Rx: Insert the LC plug of a fibre optic cable. Connect the other end of
the cable to the Transmission – Tx interface of the signal extender at the console.
Digital Audio – Out: Use an optional RCA (Cinch) audio cable to connect the com-
puter’s SPDIF-In interface to this interface.
IMPORTANT: The devices use components with laser technology complying with
laser class 1.
They meet the requirements according to EN 60825-1:2007 , EN 60825-2:2004+A1:2007 ,
U.S. CFR 1040.10 and 1040.11 .
Please consider the following safety instructions regarding this matter:
 Avoid eye contact with laser beam on page 2
 Always connect optical connections or cover them with protection caps on page 2
 Only use G&D certified transmission modules on page 2
IMPORTANT: The devices use components with laser technology complying with
laser class 1.
Do not use optical instruments to look into the beam!
NOTE: Remove the protection caps from the Transmission interface and cable plugs.
NOTE: Signal extenders of the Audio-Transceiver series automatically convert incom-
ing audio signals. The analogue ( Line Out ) or the digital audio signal ( Digital Audio –
Out ) can be used at the remote station.
Transmission
Link Status
Audio
Power
Service
Audio-Transceiver-Fiber
0
1
3
7
2
4
6
8
5
9
Line In/
Micro In Speaker
Line Out/
Digital Audio
Out In
