Amplifying the analogue input signal
Audio-Transceiver-Fiber · 6
English
Amplifying the analogue input signal

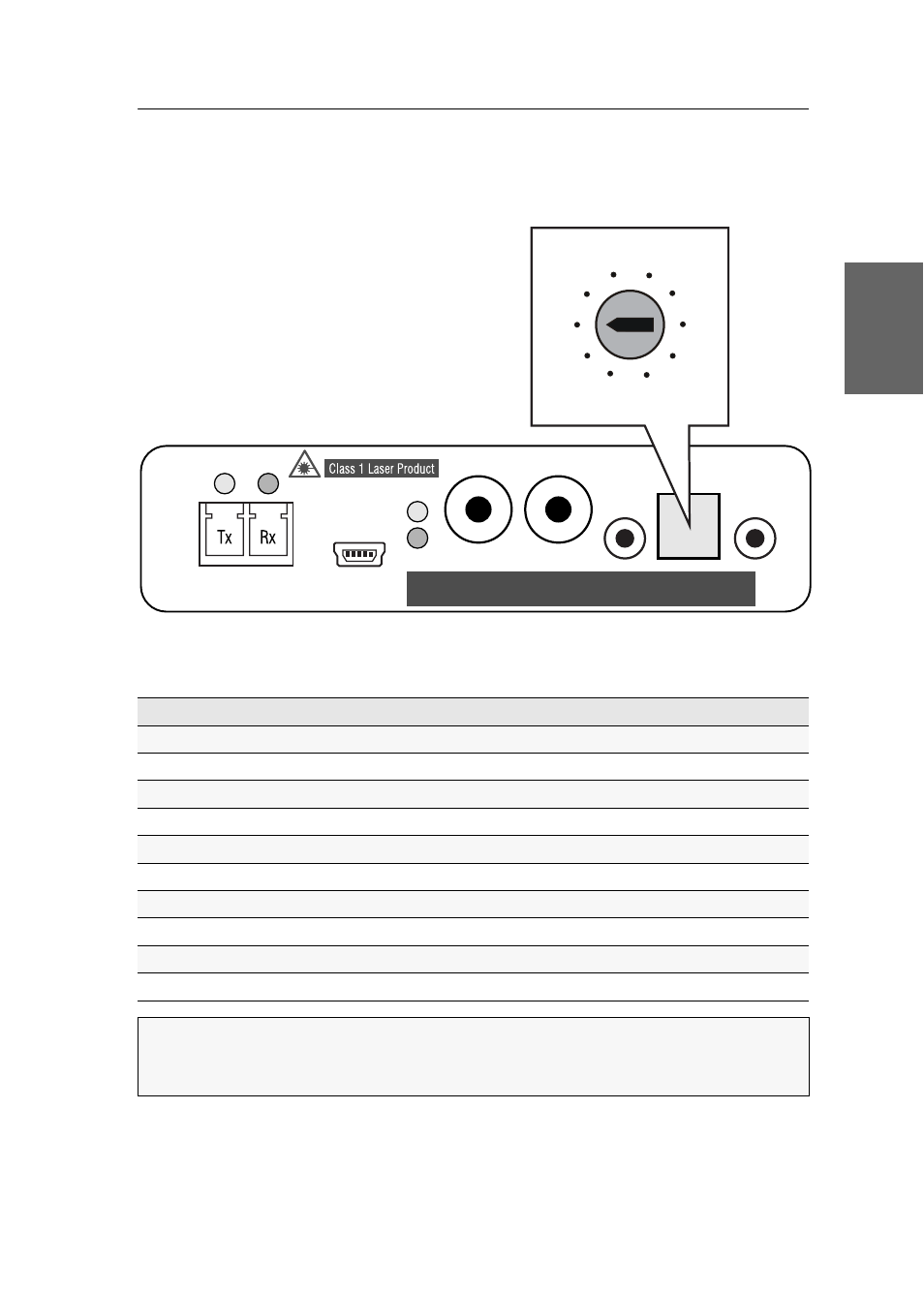

A rotary switch lets you amplify the analogue audio signal coming in at the
Line In/
Micro In
interface. In the defaults, the rotary switch is set to
0
:
The following table lists the different switch settings and the respective amplification of
the input signal:
Switch setting
Amplification of the analogue input signal (Line In/Micro In)
0
0 dB (no amplification)
1
3 dB
2
6 dB
3
9 dB
4
12 dB
5
15 dB
6
18 dB
7
21 dB
8
24 dB (maximum amplification)
9
24 dB (maximum amplification)
NOTE:
A high level of the input signal and the simultaneous amplification may
lead to an overdriving of the audio signal. Decrease the level of amplification if
the audio signal is distorted.
