Status displays
13 · Audio-Transceiver-Fiber
Status displays

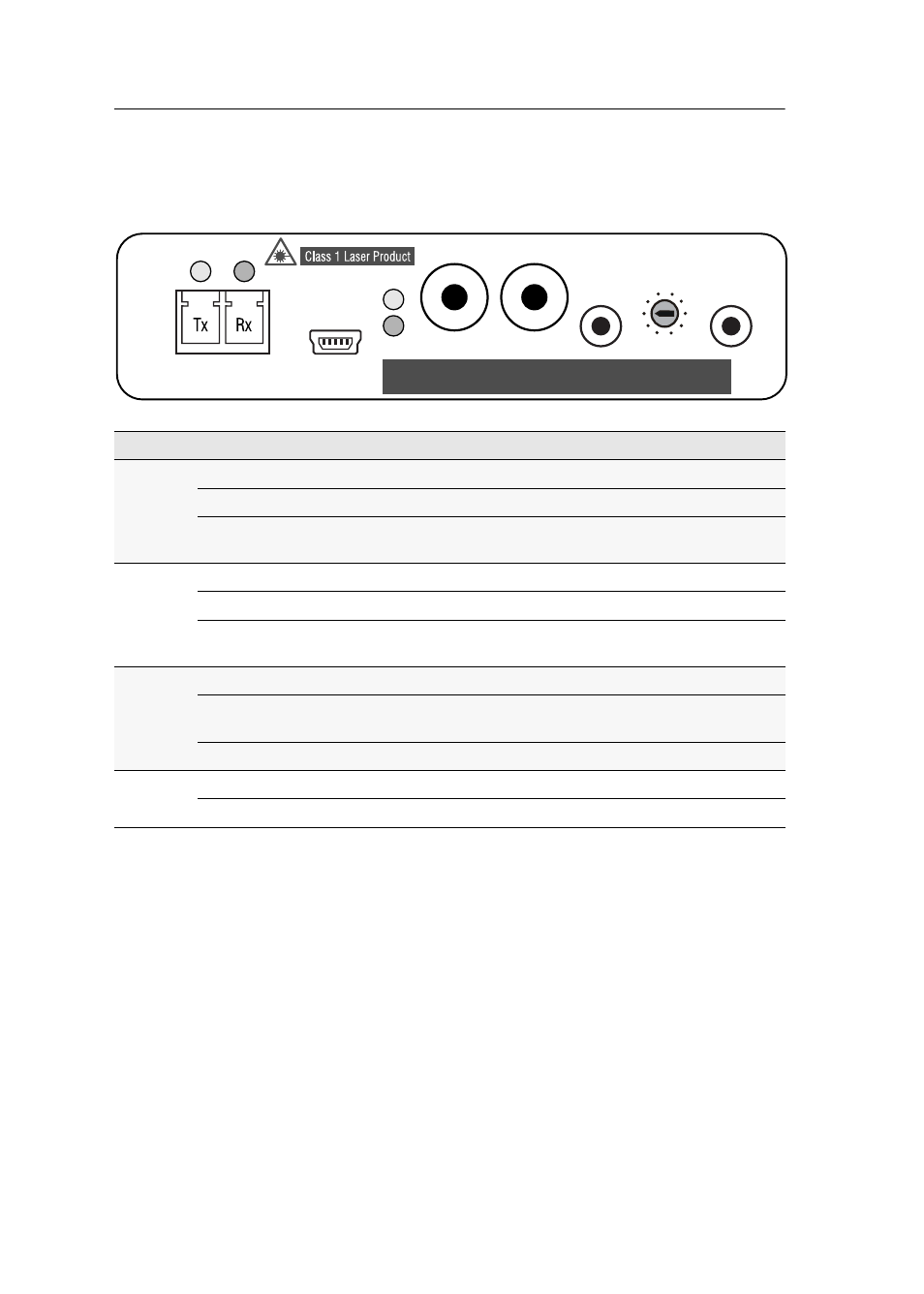

The LEDs on the front panel of the signal extender enable you to control the opera-
tional status at any time.
LED
Status
Meaning
Link
On
Established connection to remote signal extender.
Off
No connection to remote signal extender.
Flashing
No SFP module plugged in or
SFP module could not be detected.
Status
On
The device is ready for operation.
Off
The device is ready for operation.
Flashing
Audio input »Auto« or »SPDIF« is active and a compatible audio
signal is detected at the »Digital Audio – In« interface.
Audio
On
Incoming audio signal of remote signal extender detected.
Normal
flashing
No incoming audio signal of remote signal extender detected.
Fast flashing
SFP module signals transmission error.
Power
On
Signal extender supplied with power.
Off
Signal extender not supplied with power.
Transmission
Link Status
Audio
Power
Service
Audio-Transceiver-Fiber
0
1
3
7
2
4
6
8
5
9
Line In/
Micro In
Speaker
Line Out/
Digital Audio
Out
In
