Installation Guide
9 · G&D CATCenter NEO4

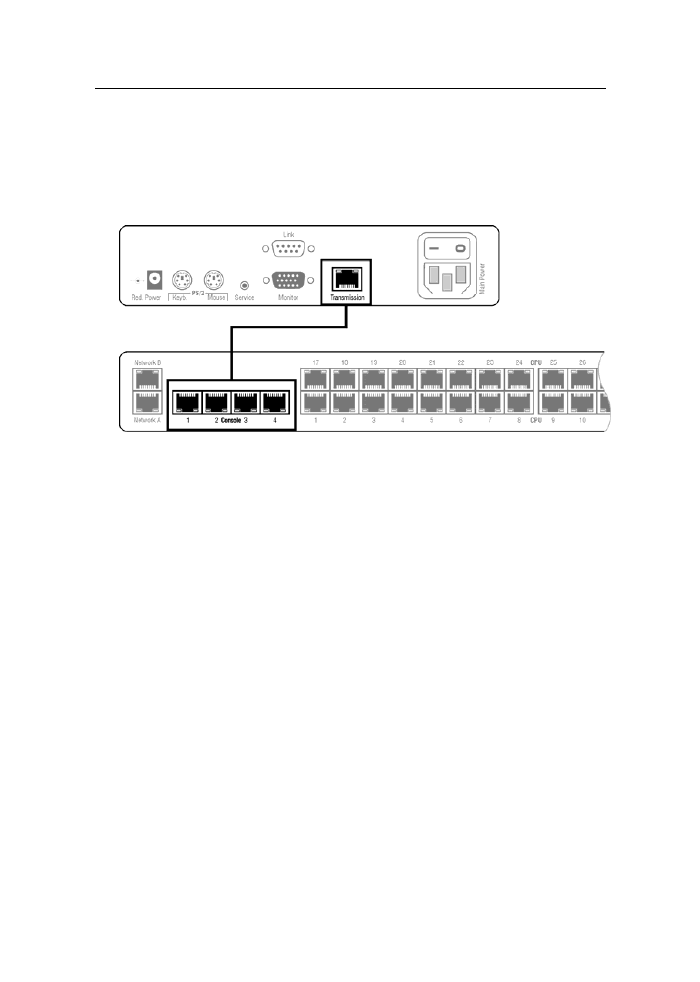

Connection via the user module UCON-a
 Insert one end of the category 5 (or better) twisted pair cable into the
Transmission port of the user module.
 Connect the other end of the twisted pair cable to any of the 4 Console ports of
the matrix switch CATCenter NEO4.
user module UCON-a
twisted pair cable
A b i l d l UCO
matrix switch CATCenter NEO4
 Connect the monitor to the Monitor interface of the user module.
 Connect the keyboard to the PS/2 Keyb. interface of the user module.
 Connect the mouse to the PS/2 Mouse interface of the user module.
