Status Displays
«
Matrix switch
10 · G&D CompactCenter X2
LEDs at the back panel
Each RJ45 interface at the back panel of the matrix switch provides additional status
LEDs. Those LEDs have the following meanings:

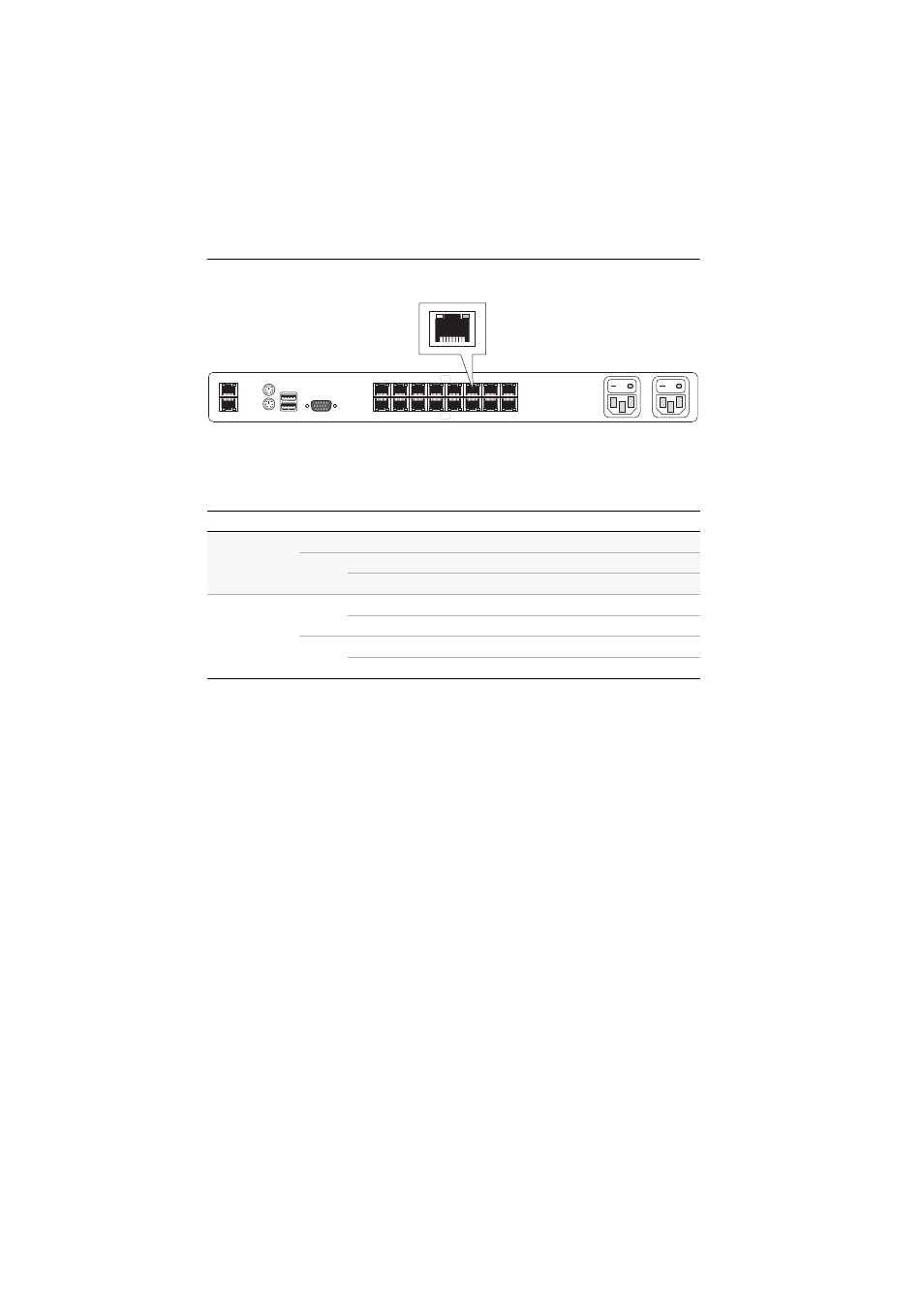

Figure 4: Status displays at the RJ45 interfaces of the matrix switch
Interface
LED
Status
Meaning
Network
left
green
Activity at the network interface.
right
green
Active 1 GBit/s connection.
yellow
Active 10 or 100 Mbit/s connection.
CPU
yellow on
Port is currently occupied by a user.
off
Port is available.
green
on
Connection to the target module has been established.
off
The target module is currently not accessing the system.
Table 2: Status displays at the RJ45 interfaces of the matrix switch
USB K/M
Keyb.
Mouse
Network A
Network B
Main
Po
wer
R
ed.
Po
wer
Monitor
9
1
2
3
4
5
6
7
8
10
11
12
13
15
16
CPU
CPU
