ERSATZTEILELISTE
7
6-2
Command THC
(
Roboter)
Betriebsanleitung
THC-Steuermodul
Index-Nr.
Teil-Nr.
Beschreibung
Menge
–
053018
THC Control Module
1
1
002261
Enclosure, THC Control Module
1
129067
Heatsink SA, THC Control Module
1
2
004705
Heatsink, THC
3
005186
Module, Power Entry, Fused Filter
1
4
008971
Fuse, T,3.15 Amp H 250V 5 mm x 20 mm
2
5
229070
Power Source, 130W (see Fig. 6-2)
1
6
041511
PCB Assy, Motor Driver (see Fig. 6-2)
1
7
128407
PCB Assy, Control (see Fig. 6-2)
1
081061
Firmware, Real-Time Microprocessor
1
081062
Firmware, Interface Microprocessor
1
8
123254
Cable, THC 50/C Ribbon (not shown)
1
9
129066
Harness Wiring THC (not shown)
1

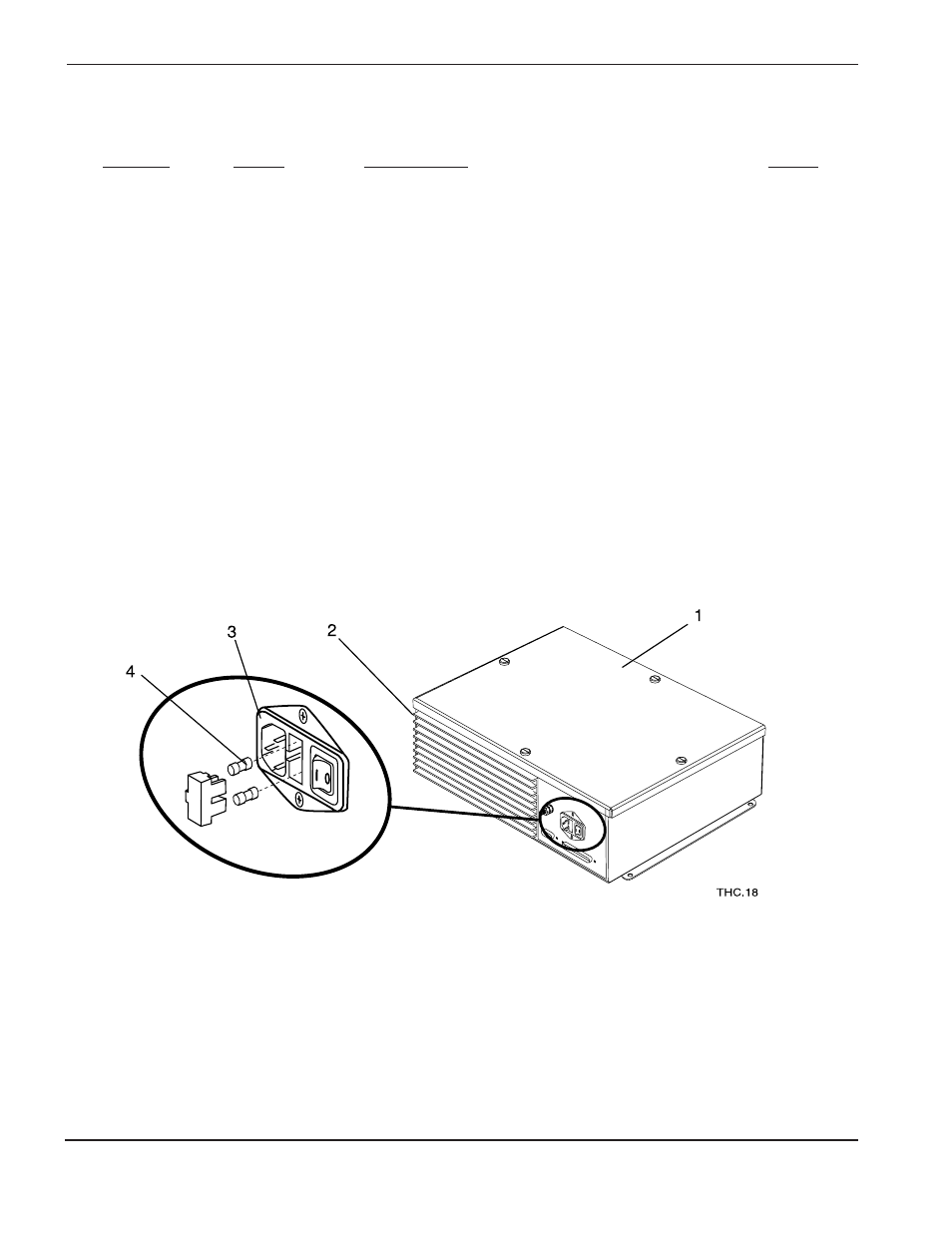

Abbildung 6-1
Außenansicht des THC-Steuermoduls
