17
ERSATZTEILLISTE
6-4
HD3070
mit automatischer Gaskonsole Betriebsanleitung
Stromquelle – Vorderseite außen
Teile-
Pos.
Nummer
Beschreibung
bestimmt für
Menge
029946
HD3070 Enclosure SA
1
1
041246
PC BD assy, relay
1XPCB4
1
2
003113
Relay, DPDT, 12V Coil
CRE
1
3
003142
Relay, DPDT, 120 VAC
CRF, CRG
2
4
041349
Power source, 12V 2.1A
1
5
041752
PC BD assy, controller
1XPCB3
1
081077
Firmware
1
129307
Fan Assembly
1
6
027080
Fan, 225 CFM, 120 VAC, 50/60 Hz
M2
1
027568
Fan Guard (not shown)
1
129308
Fan Assembly
1
7
027079
Fan, 450-550 CFM, 120 VAC, 50/60 Hz
M4
1
027567
Fan Guard (not shown)
1

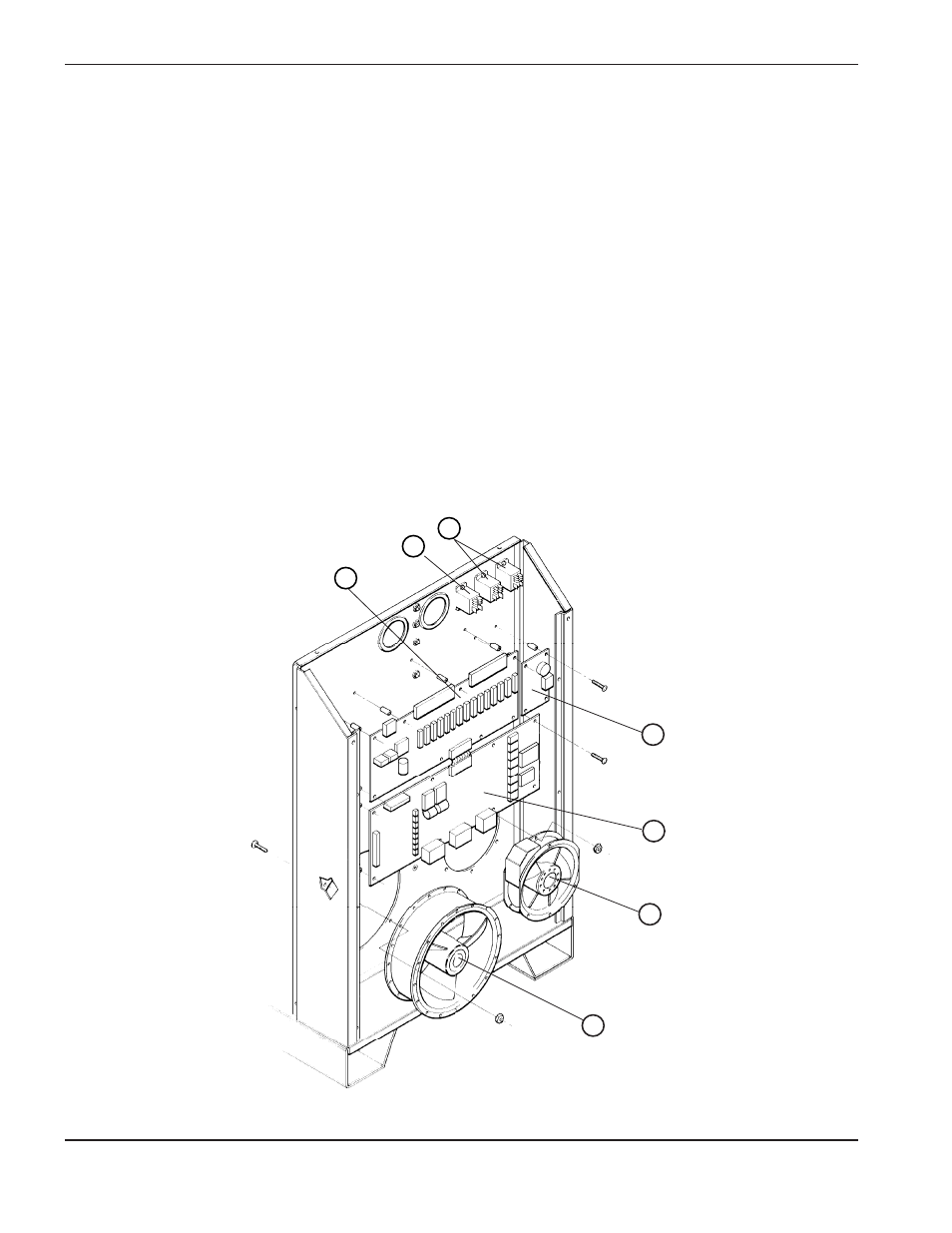

Abbildung 6-2
Vorderseite außen
1
2
3
4
5
6
7
