STANDARD-KOMPONENTEN
20
9-34 HySpeed HT2000 Betriebsanleitung

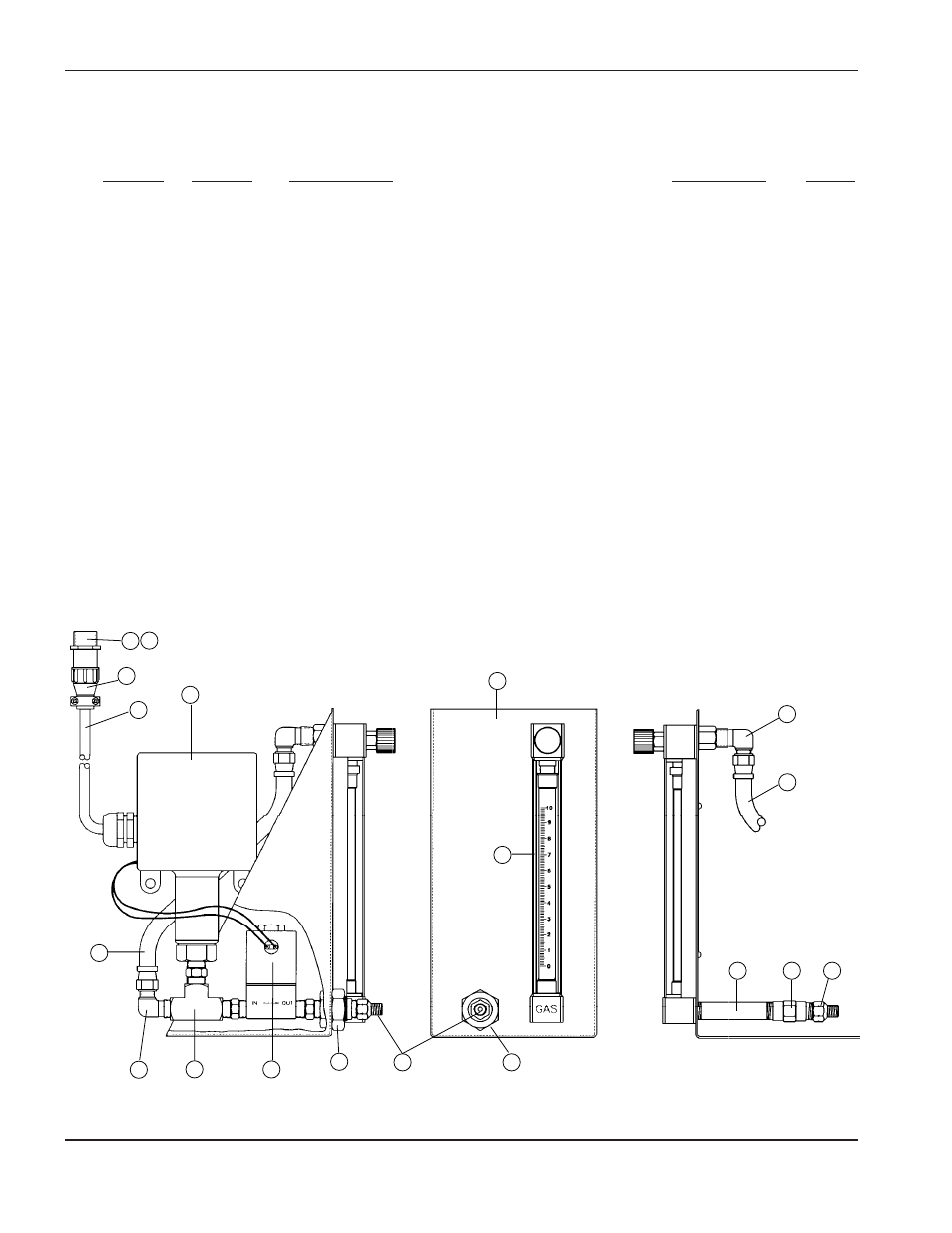

Abbildung 9-18 Argon-Wasserstoff-Verteiler
Argon-Wasserstoff-Verteiler
ቨ
Nr. 073109
Teile-
Position nummer Beschreibung bestimmt für Menge
073109 Argon-Hydrogen Manifold 1
1 002050 Bracket: Ar/H2 Manifold 1
2 011005 Flowmeter: 0-10 SC/BT-8 w/valve FM1 1
3 015014 Adapter: 1/4NPT X #4 Male 90° Brass 1
4 015047 Adapter: 1/4NPT X AC 'A' Male Brass 1
5 015512 Nipple: 1/4 X 3" long Brass 1
6 015551 Coupling: 1/4 Brass 1
7 024143 Hose Assy, #4 X 9" 1
029831 Manifold SA: 073109 H35 Manifold 1
8 005046 Pressure Switch: 0-200 1/4FPT PS1 1
9 006009 Solenoid Valve:200# 1/4FPT 120V NC SV5 1
10 015001 Adapter: 1/4FPT X 15/16 Brass 1
11 015014 Adapter: 1/4NPT X #4 Male 90° Brass 1
12 015047 Adapter: 1/4NPT X AC 'A' Male Brass 1
13 015596 Tee: 1/4 Brass 1
023702 Cable: HT2000 H35 Manifold Press. Sw. 1
14 008195 CACLP:CPC Size 11 1
15 008205 Pin: 18-16 AWG Type III + CRP 4
16 008807 Receptacle Shell:CPC 11-4 14X1 1
17 047055 Cable, 18-2 TW PR, Unshielded 6 ft
2
3
5 6 4
7
7
9
10 10
11
12
13
17
14
8
1
15 16
