Hypertherm HySpeed HT2000 Plasma Arc Cutting System Rev.24 - Handbuch (Seite 232)

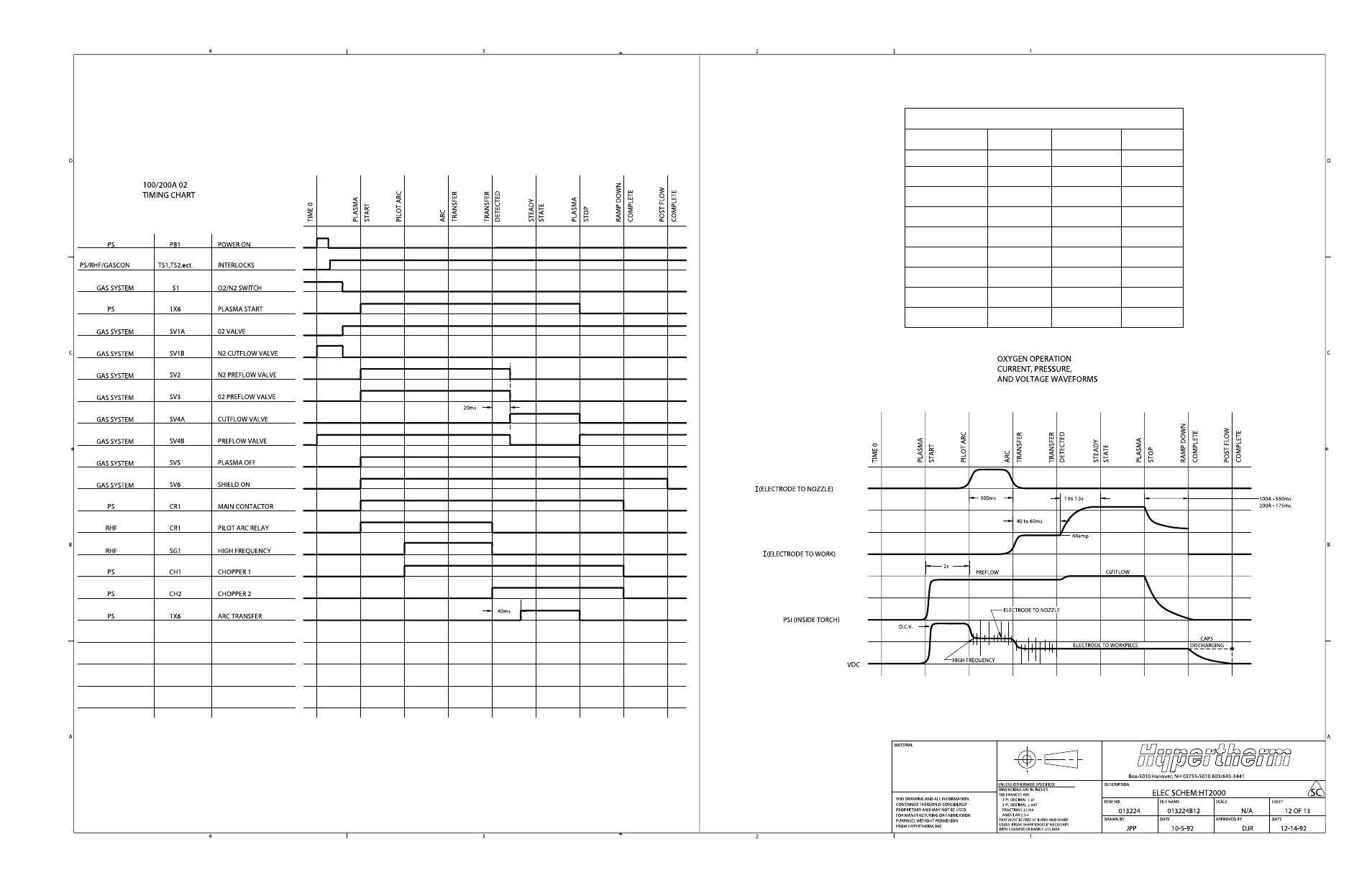

Solenoid valve status for O
2
timing chart
O
2
or Air Cutting Mode
Component Idle Cutflow Preflow
SV1A ON ON ON
SV1B OFF OFF OFF
SV2 OFF OFF ON
SV3 OFF OFF ON
SV4B OFF OFF ON
SV4B OFF OFF ON
SV5 OFF ON ON
SV6 OFF ON ON
SV7 ON ON ON
