ND 780
3

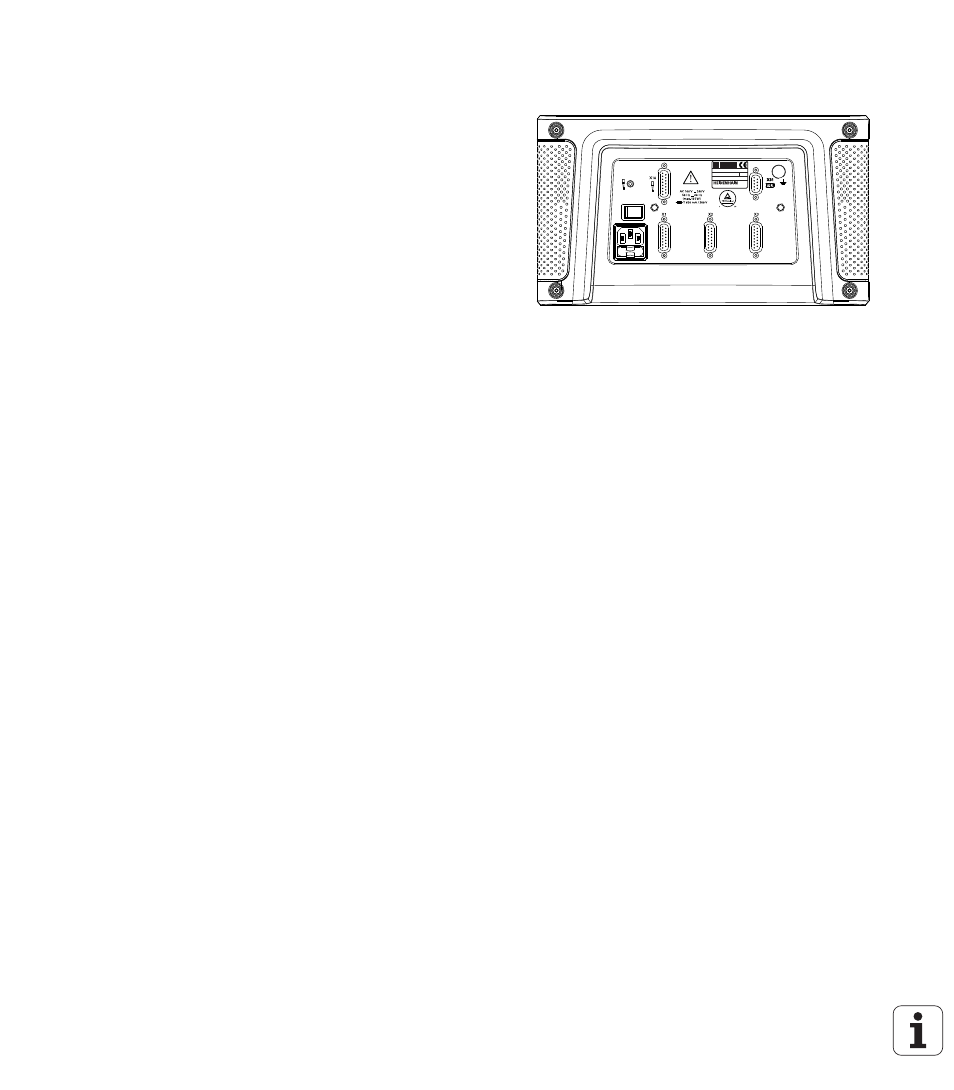

ND 780 Back Panel
ZZZKHLGHQKDLQGH
ND 780
ID 123456-xx
xx
SN 12 345 678 x
O I
1
2
3
4
6
7
5
8
9
10
1
Power switch
2
Power connector
3
Replaceable fuse holder
4
Grounding Edge Finder
5
KT 130 Edge Finder
6
Encoder inputs: X1, X2, X3, axis interface encoders 11 µApp and
1 Vpp
7
RS-232-C: PC communication
8
Earth (ground) terminal
9
Warning to protect against personal injury
10
Product name, ID lable
