ND 780
53
I - 3 Milling Specific Oper
ations
Preparation:
 Select the tool with the appropriate tool data.
 Pre-position the tool to an appropriate location (such as X = Y =
-20 mm).
 Move the tool to milling depth.

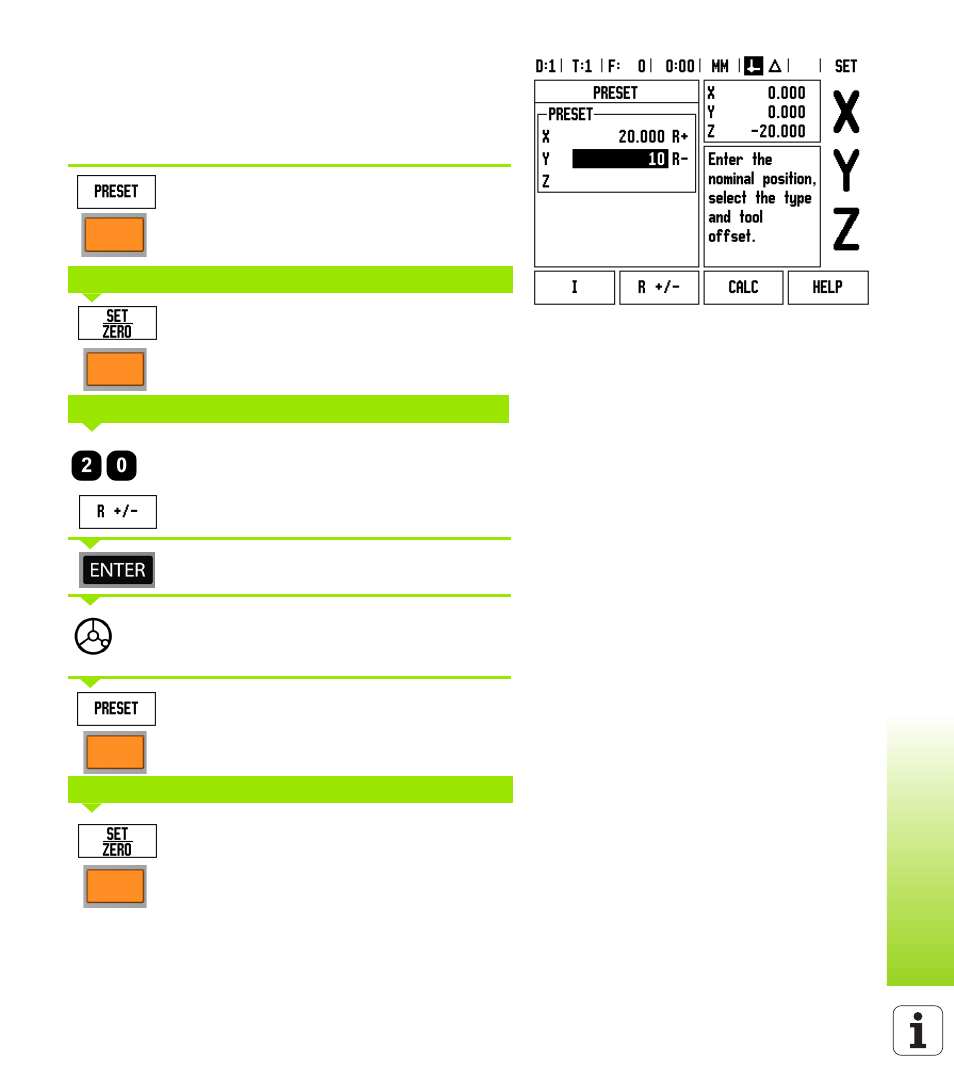

Press the PRESET soft key.
Press the Y axis key
Press the SET/ZERO soft key so that you are in Set
mode.
Press the Y axis key.
Enter nominal position value for corner point 1 :
Y = 20 mm and
select tool radius compensation R + with R+/- soft
key. Press until R+ is shown next to axis form.
Press ENTER.
Traverse the Y axis until the display value is zero. The
square in the graphic positioning aid is now centered
between the two triangular marks.
Press the PRESET soft key.
Press the X axis key
Press the SET/ZERO soft key so that you are in Set
mode.
Press the X axis key.
- ALTERNATIVE METHOD -
NOMINAL POSITION VALUE
- ALTERNATIVE METHOD -
