Measured Value Output
With the measured value output feature, the current axis display
positions and probe measurement values can be sent over the serial
port. Output of the current display positions is activated via an external
hardware signal or via a command (Ctrl B) sent to ND 780 over the
serial port.
The Measured Value Output form is used to set data output during
probing operations to ON or OFF. It is also used to set the display
freeze option.
 Data Output Probing (Milling Only) - This may be set to either ON or
OFF. When ON, the measurement data is output when the probe
operation is completed.
 Display Freeze - Set to either:
 OFF - The display is not stopped during measured value output.
 CONCURRENT - The display is stopped during measured value
output and remains stopped while the switching input is active.
 FREEZE - The display is stopped, but is updated by every
measured value output.
Refer to Measured Value Output for information on the format of the
output data.

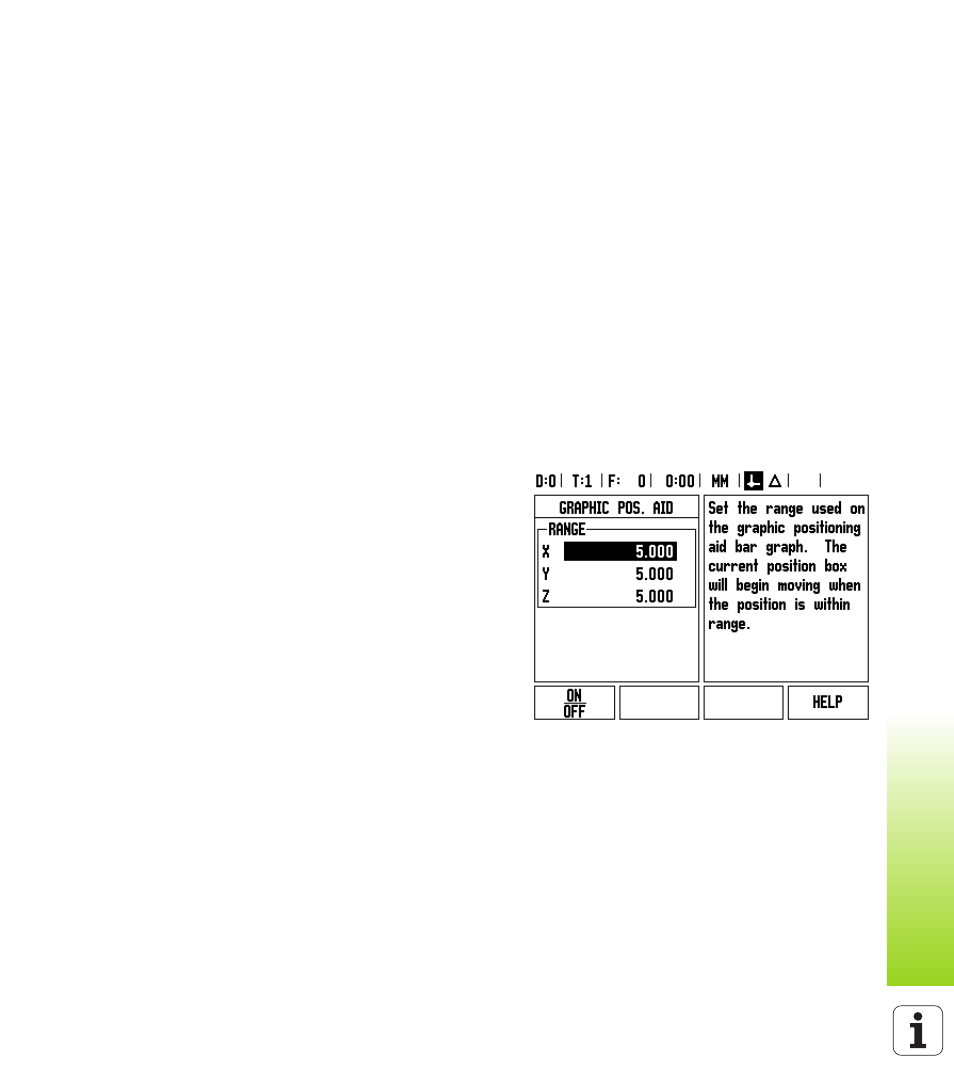

Graphic Positioning Aid
The Graphic Positioning Aid form is used to configure the bar graph
that is shown below the axes’ display in Distance-To-Go mode. Each
axis has its own range.
 Press the ON/OFF soft key to enable or simply begin entering values
using the numeric keys. The current position box will begin moving
when the position is within range.
Status Bar Settings
The Status Bar is the segmented bar at the top of the screen which
displays current datum, tool, feed rate, stop watch and page indicator.
 Press the ON/OFF soft key for each setting you want to see
displayed.
