I Operating Instructions
I - 3 Milling Specific Oper
ations

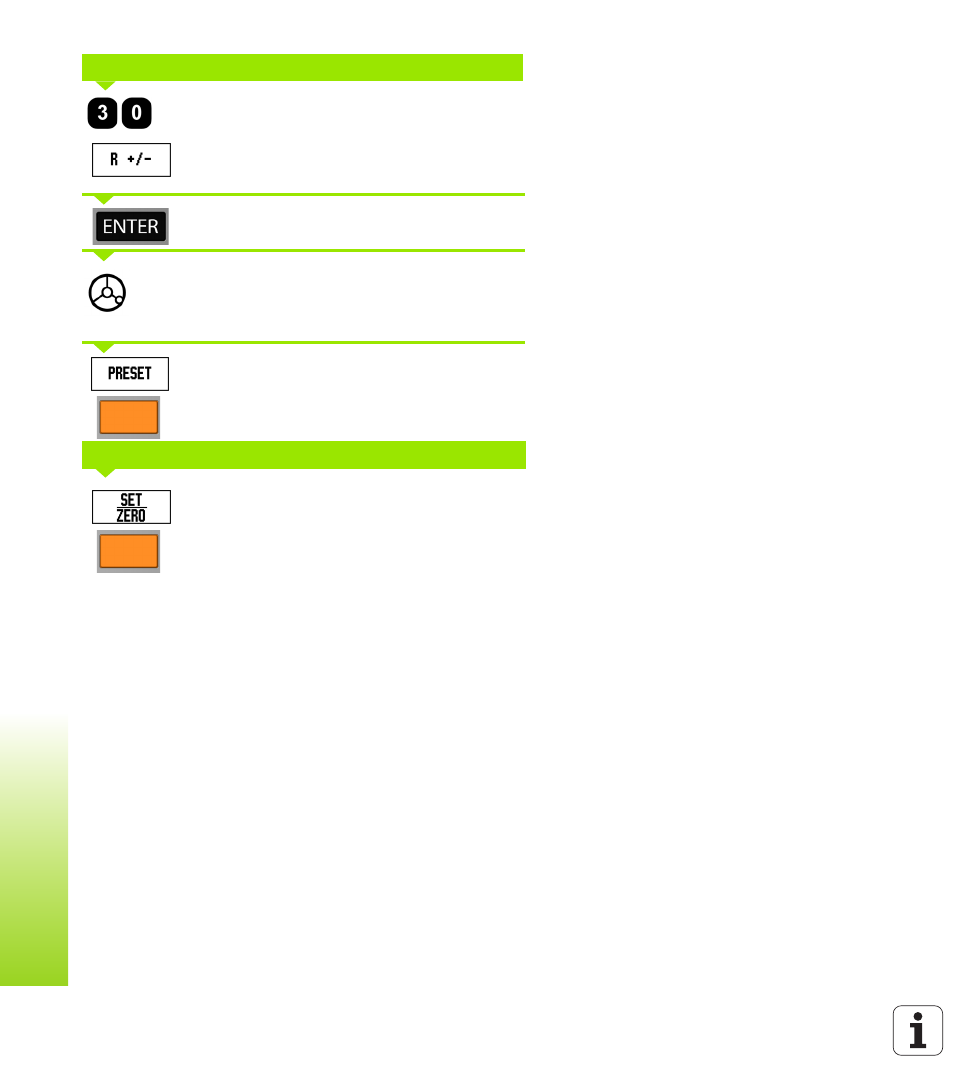

Enter nominal position value for corner point
2
:
X = +30 mm,
select tool radius compensation R – with R+/- soft
key. Press twice until R- is shown next to axis form.
Press ENTER.
Traverse the X axis until the display value is zero. The
square in the graphic positioning aid is now centered
between the two triangular marks.
Press the PRESET soft key.
Press the Y axis key
Press the SET/ZERO soft key so that you are in Set
mode.
Press the Y axis key.
NOMINAL POSITION VALUE
- ALTERNATIVE METHOD -
