ND 780
65
I - 3 Milling Specific Oper
ations

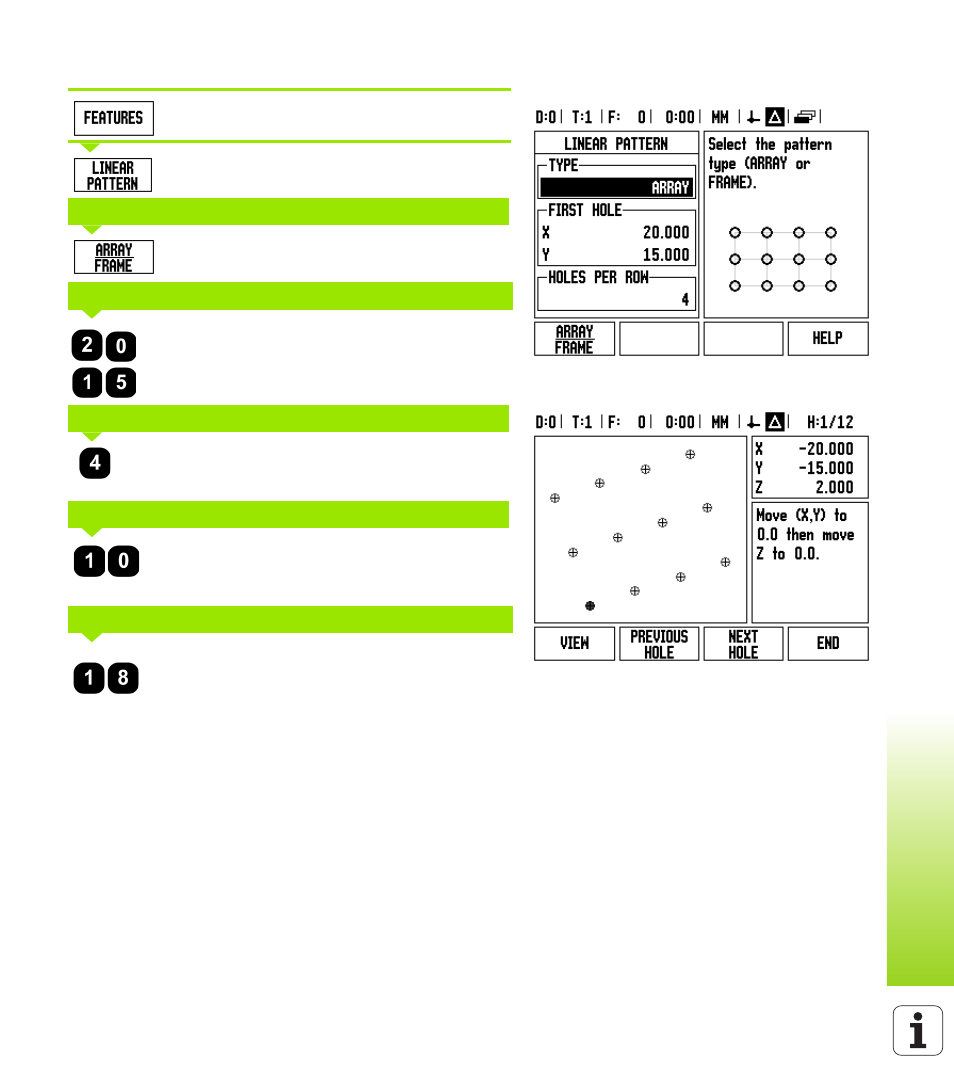

1st step: Enter data
Press FEATURES soft key.
Press LINEAR PATTERN soft key.
Enter the type of pattern (Array). Cursor to the next
field.
Enter the X and Y coordinates (X = 20), (Y = 15).
Cursor to the next field.
Enter the number of holes per row (4).Cursor to the
next field.
Enter the hole spacing (10).
Enter the tilt angle (18°).
PATTERN TYPE
FIRST HOLE X AND Y
HOLES PER ROW
HOLE SPACING
ANGLE
