Connecting the interfaces on the front panel
The transmitter’s front panel provides interfaces that are described in the following.
Transmission 1:
Insert the SC plug of the fibre optic cable, which is available as acces-
sory, into this interface. Connect the other end of the cable to the Transmission 1
interface of the user module.
Transmission 2:
Insert the SC plug of the fibre optic cable, which is available as acces-
sory, into this interface. Connect the other end of the cable to the Transmission 2
interface of the user module.
Power:
Insert the supplied power pack.

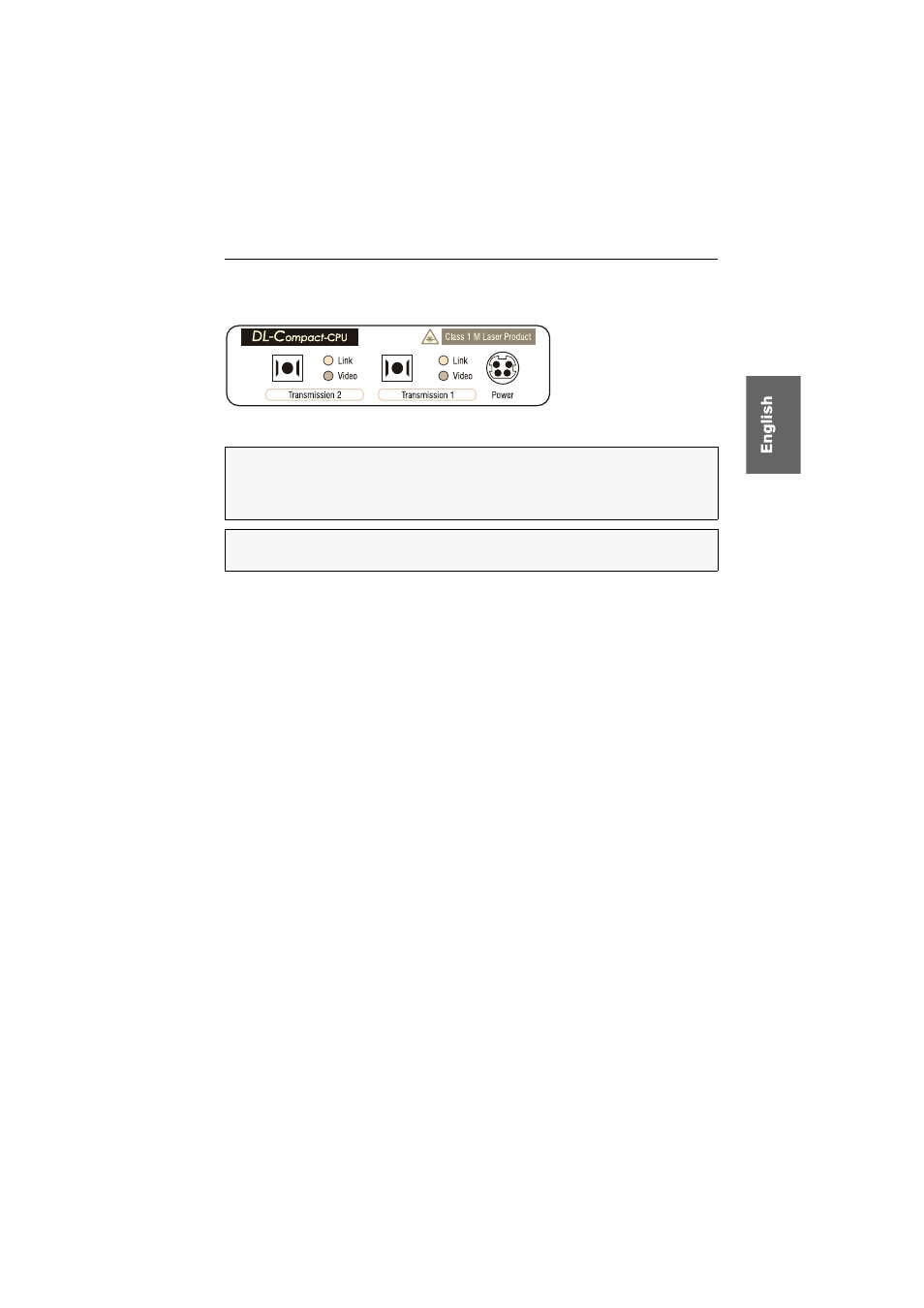

Figure 2: Front view of the transmitter
IMPORTANT:
The device uses components with laser technology which comply
with laser class 1M. Although class 1M laser are considered as being nonhazard-
ous, direct eye contact should be avoided. Do not stare into the beam or view
directly with optical instruments.
NOTE:
Remove the protection caps from the Transmission interface and from the
cable plugs.
