Installing the receiver
The console is connected to the receiver (DL-Compact-CON).
Connecting the interfaces of the back panel
The receiver’s back panel provides interfaces to connect the computer. These inter-
faces are described in the following paragraph.
Keyboard:
Connect the PS/2 console keyboard.
Mouse:
Connect the PS/2 console mouse.
K/M USB:
Connect the USB console mouse and/or the USB console keyboard.
DVI-D dual link:
Connect the console monitor.
ADVICE:
Preferably connect the cables to the computer module from left to right.
This way you avoid that already connected cables complicate the connection of
further cables.

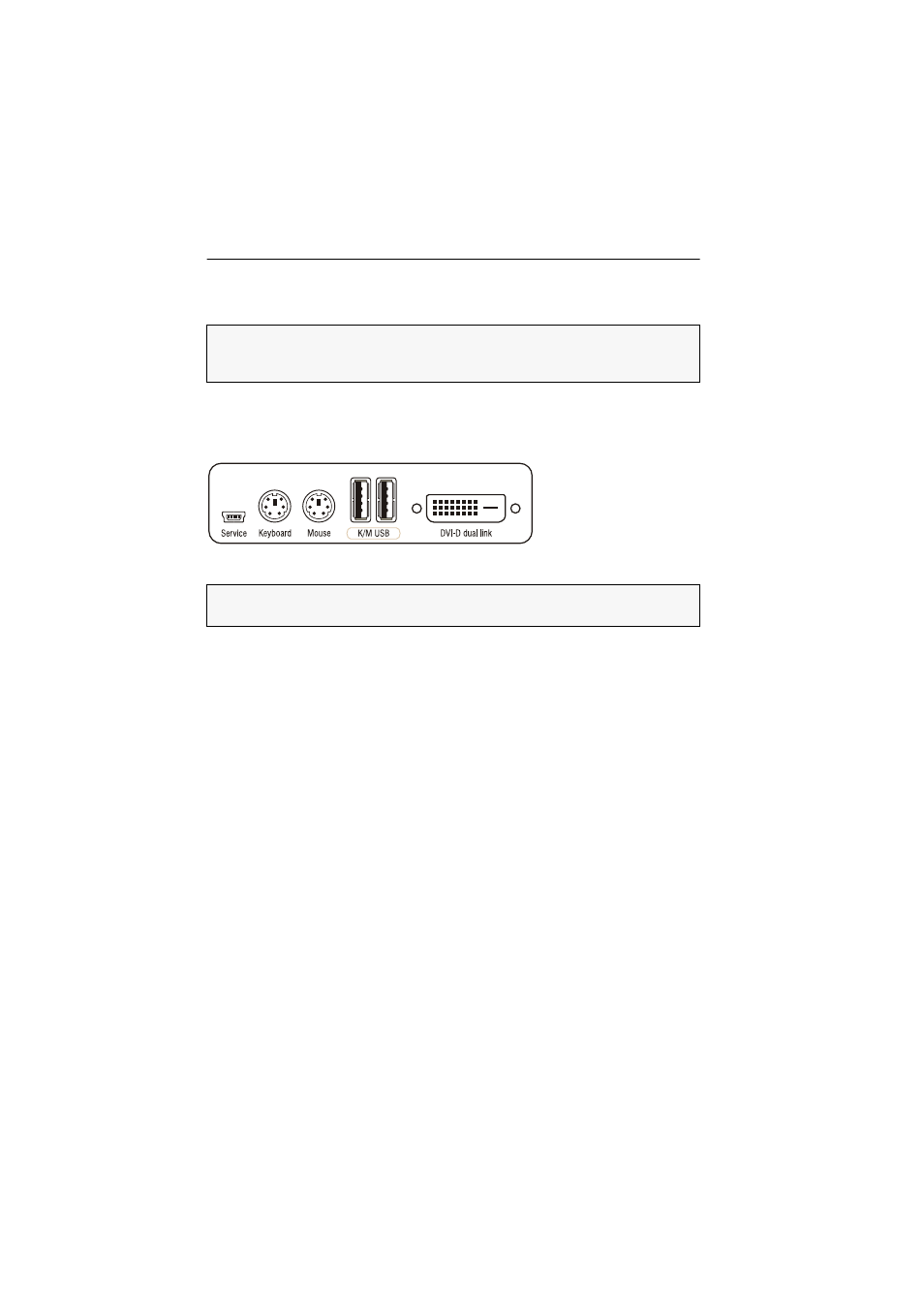

Figure 3: Back view of the receiver
NOTE:
The console mouse as well as the console keyboard can either be PS/2
(Mouse or Keyb. interfaces) or USB devices (K/M USB interfaces).
