Installation
9 · G&D DVIVision-USB 2.0

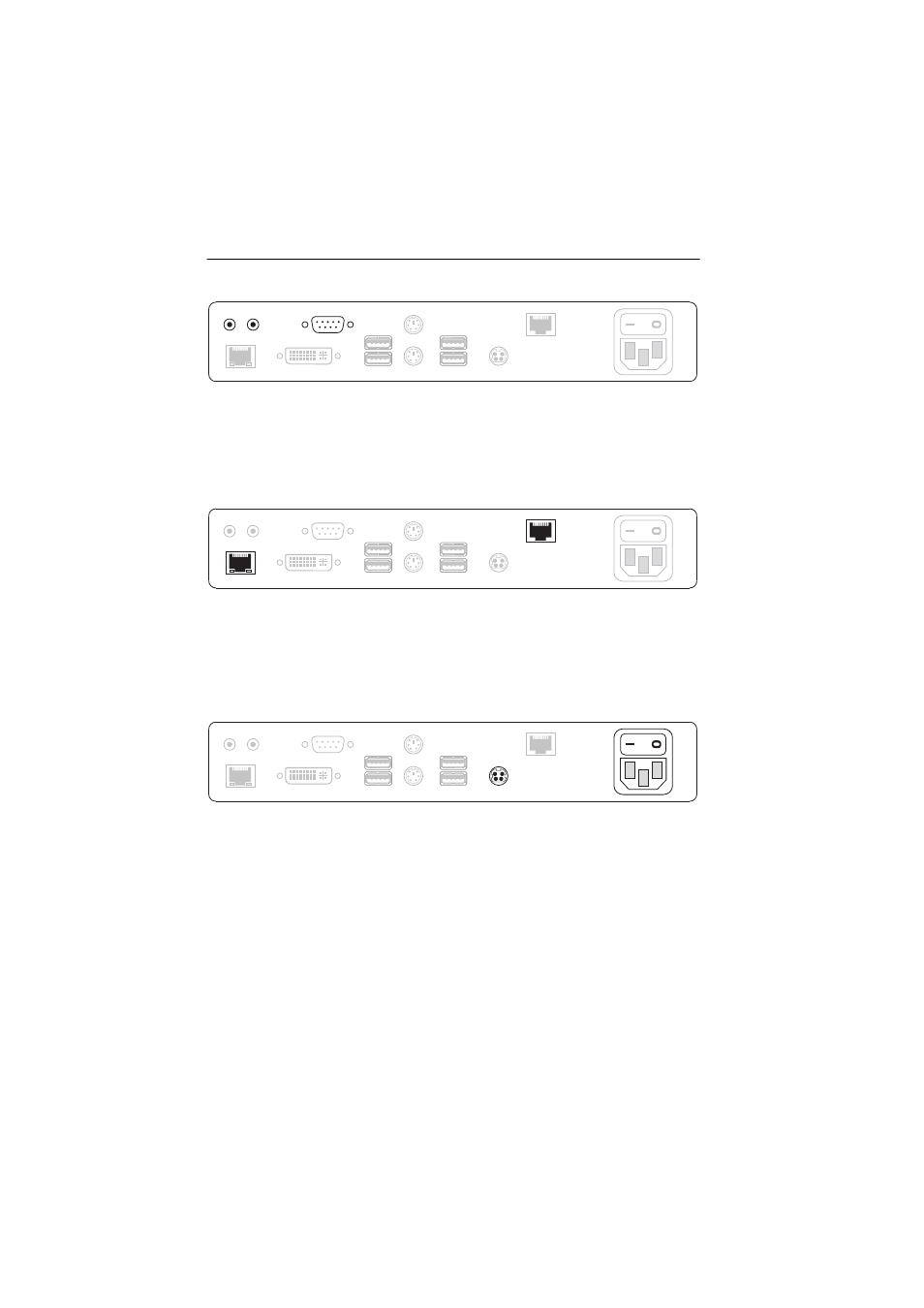

Additional interfaces of enhanced variants
Speaker:
Connect the speakers of the console to this interface.
Micro In:
If desired, connect the console microphone to this interface.
RS232:
Connect the serial device to this interface.
Interfaces for data transmission
Transmission:
Insert the twisted pair cable, which is connected to the Transmission
interface of the computer module.
USB 2.0 Trans.:
Insert the twisted pair cable, which is connected to the USB 2.0 Trans.
interface of the computer module.
Interfaces for power supply
Main Power:
Insert the supplied PowerCable-2 Standard IEC cable.
Red. Power:
Use this interface to connect an optional power pack, which enables a
second, redundant power supply.
Main
Power
DVI/VGA Out
Red. Power
Transmission
Keyb.
Mouse
USB 2.0 Trans.
Keyb./Mouse
USB 2.0 Devices
RS232
Speaker Micro In
Main
Power
DVI/VGA Out
Red. Power
Keyb.
Mouse
RS232
Speaker Micro In
Keyb./Mouse
USB 2.0 Devices
Transmission
USB 2.0 Trans.
DVI/VGA Out
Transmission
Keyb.
Mouse
USB 2.0 Trans.
RS232
Speaker Micro In
Keyb./Mouse
USB 2.0 Devices
Main
Power
Red. Power
