The user module UCON-s
Front panel

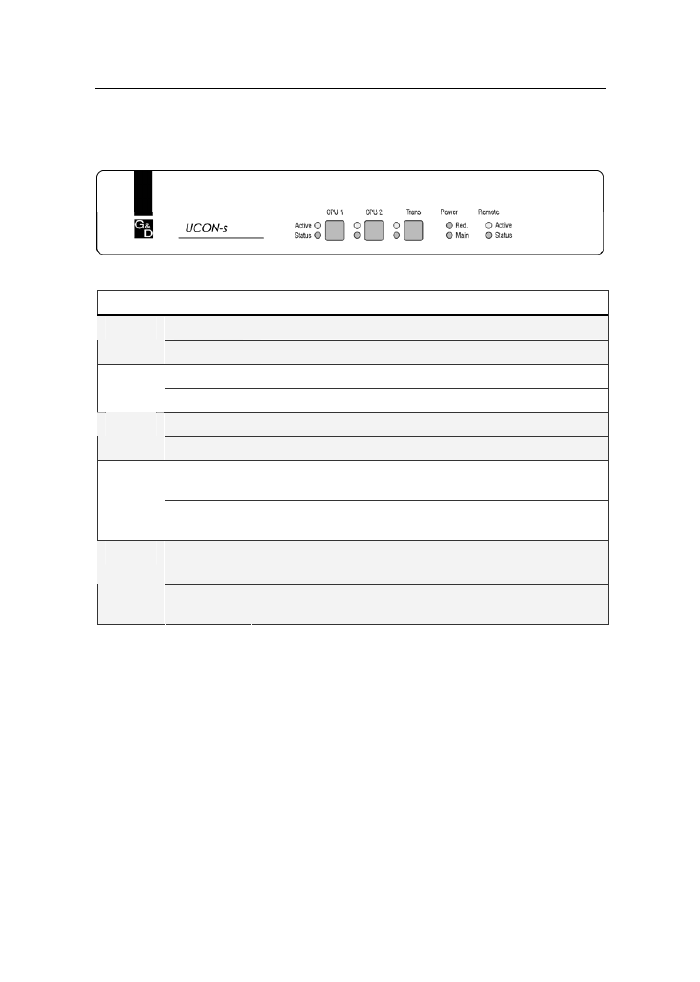

The LEDs at the front panel of the user module UCON-s have the following function:
Section LED Meaning
Active Lights up if the local target computer 1 is accessing. PC1
Status Lights up if the local target computer 1 is switched on.
Active Lights up if the local target computer 2 is accessing. PC2
Status Lights up if the local target computer 2 is switched on.
Active Lights up if the CATCenter system is accessing. Trans
Status Lights up if the CATCenter system is switched on.
Redundant Lights up if an external power pack is connected and is
supplying 12V.
Power
Main Lights up if the main power supply is connected and is
supplying power.
Active  Lights up if a keyboard has been initialised.
 Flashes if no keyboard has been initialised.
Remote
Status Always Lights up when the CATCenter system is ready
for operation.
