Compressed air hose drum GB
10190 Operating instructions RU-89560 5 State: 10190-13-2013
information on the type plate.
If you fail to observe these
instructions, there is a risk of the
compressed air hose bursting or of
a defect in the connections.
• If a defect is discovered, put the
unit out of service.
Put the compressed air hose drum
out of service if malfunctions,
defects or damage are discovered.
Defects could occur, for example, if
cuts and bruises are received from
the hose.
Have the compressed air hose
drum inspected, and if necessary
repaired, before putting it back into
service.
Take Care: Avoid damage to
property.
• Protect the compressed air hose.
Protect the compressed air hose
from oil, acids, sharp edges and
high temperatures. If you fail to
observe this, there is the possibility
of a defect occurring.
4 Scope of supply
Immediately after unpacking check the
goods supplied to see that they are
complete and in a satisfactory
condition.
1 x Compressed air hose drum
5 Technical Data
Product: Compressed air
hose drum
Article number : 10190
Classification: Soft PVC
compressed air hose, transparent blue
with fabric lining
Working temperature: -20°C to +60°C
Hose length:
Approx. 20m
Diameter: 6,3 / 11,3 mm
Operating pressure: Max. 15 bar
Connections: Brass
connection nipple and one-hand quick
release coupling
Frame: Galvanised
steel
tubing with hose guide
Housing: Plastic
reel
Dimensions (HxDxW):
35,5 x 19 x 28,5 cm
6 Product overview
This Chapter gives an overview of the
operating devices and indicators of the
product and a short functional
description. In the following Chapter
(Chapter 7) the operation will be
described in more detail.

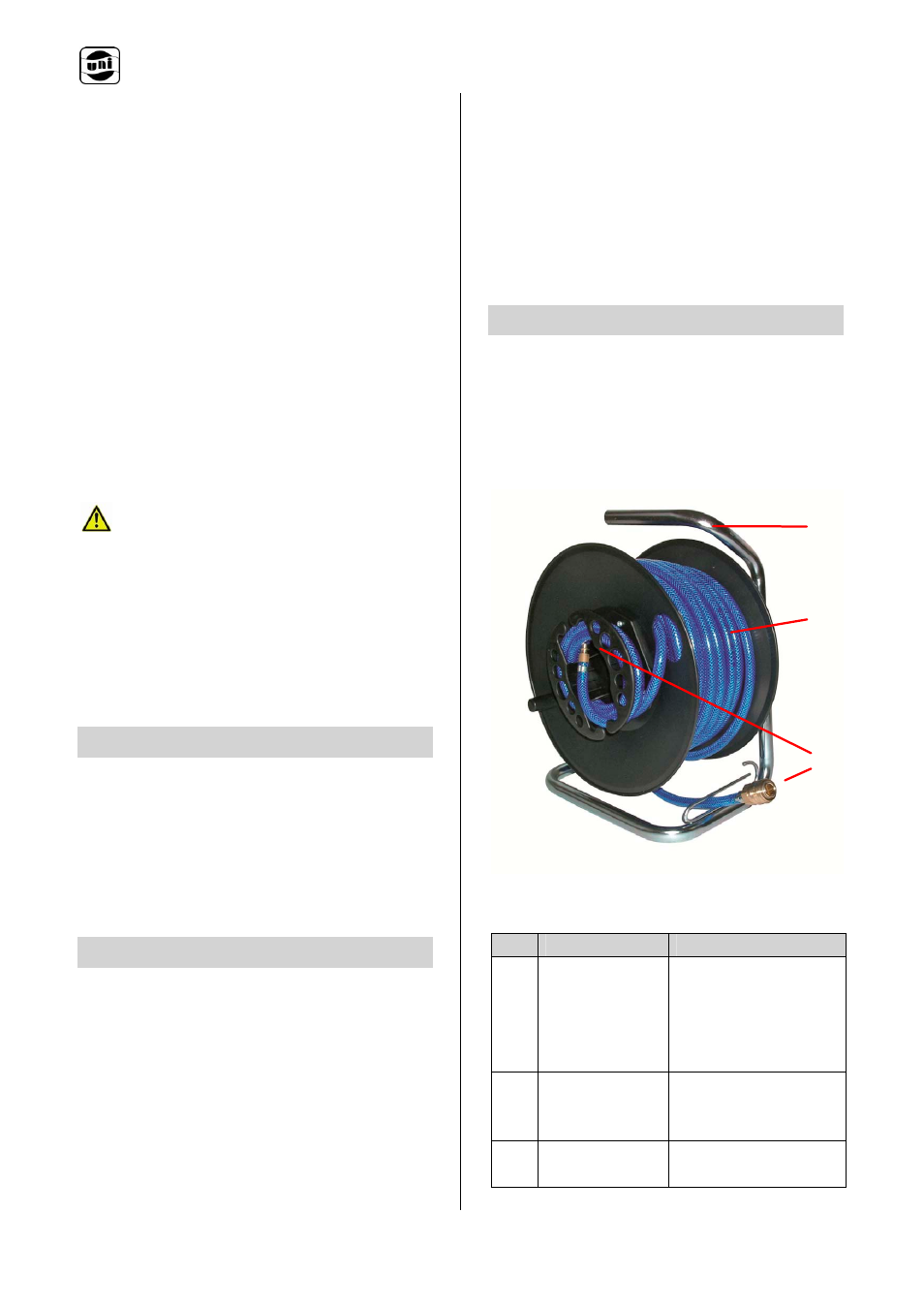

Figure 1: Equipment overview – Compressed air
hose
drum
Item Designation Function
1 Frame with
hose guide
Facilitates the
winding and
unwinding of the
compressed air
hose
2 Compressed
air hose
Connecting the
tool with the
compressor
3 Connections One-hand
operation
Tab.2: The parts of the compressed air hose drum
1
2
3
