Connecting up to two local networks
If desired, connect the network interfaces to up to two local networks to access the
Config Panel web application from the networks and to send SNMP traps or syslog
messages to these networks.
Network A:
Connect a category 5e (or better) twisted pair cable which is available as
accessory to this interface. Connect the other end of the cable to a local network.
Network B:
Connect a category 5e (or better) twisted pair cable which is available as
accessory to this interface. Connect the other end of the cable to a local network.
Connecting the power supply
Main Power:
Connect an IEC cable to a power outlet and this socket.
Red. Power:
If desired, connect another IEC cable to a power outlet and this socket.
This provides the device with a second, redundant power supply.

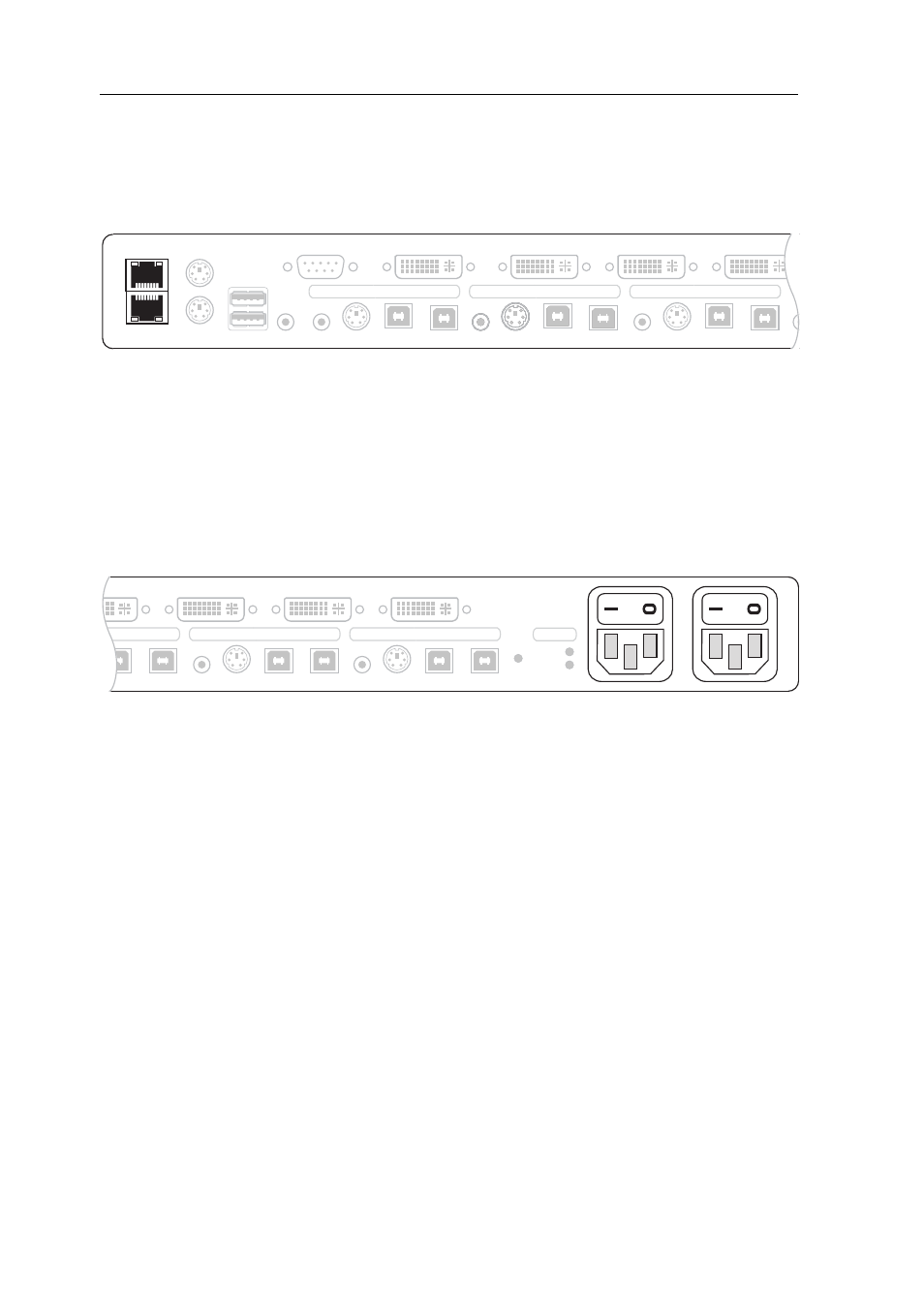

Figure 4: Interfaces to connect local networks
Figure 5: Interfaces to connect the power supply
