Hypertherm MAXPRO200 Rev.1 - Handbuch (Seite 208)

206
1
A
B
C
D
4 3 2 1
A
B
C
D
4 3 2

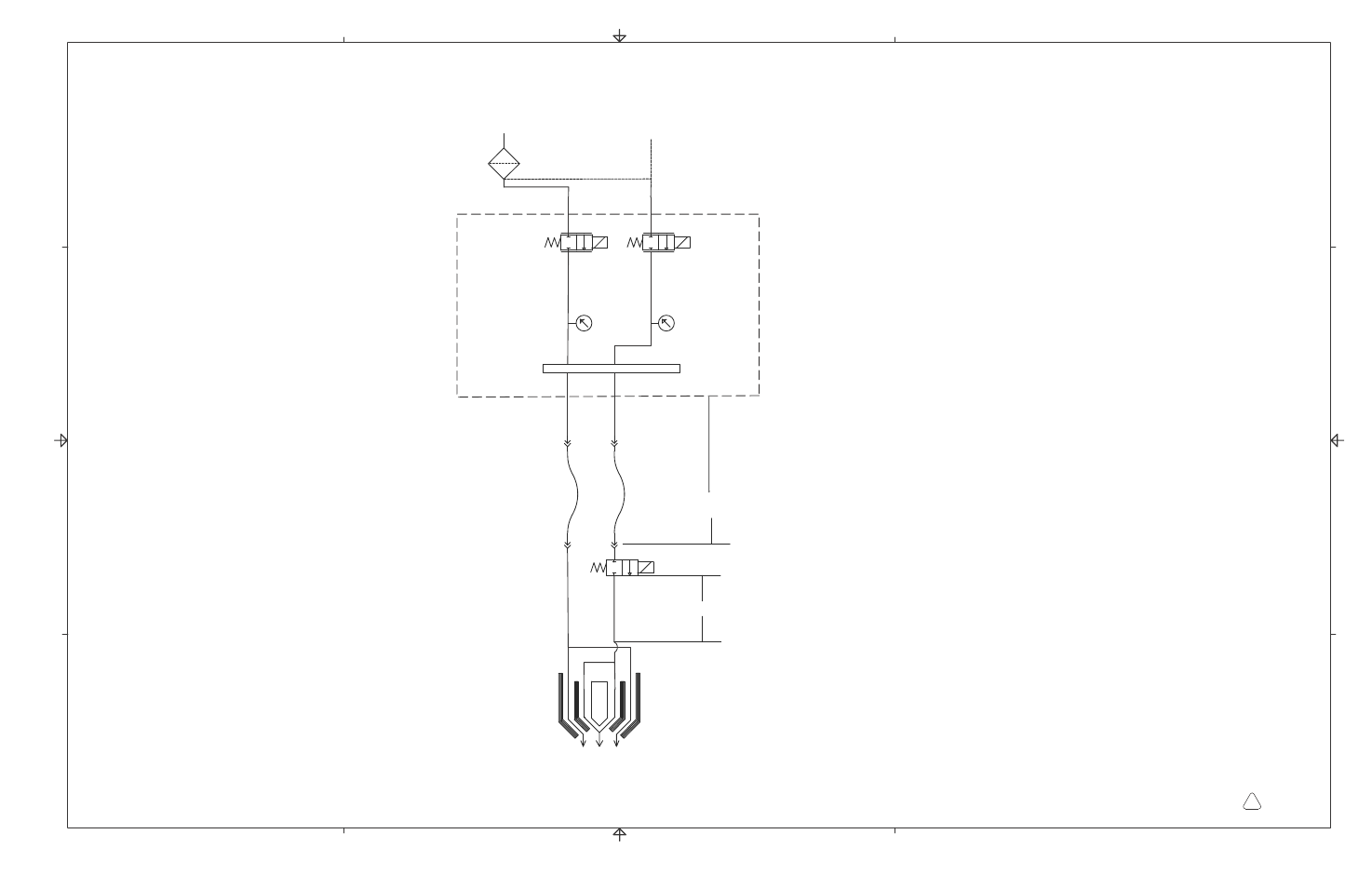

ELEC SCH:MAXPRO200 POWER SUPPLY
A
013384
SHEET 7 OF 9
POWER SUPPLY
SHIELD PLASMA
Plasma
Air/N2 N2/02
4'
TORCH VALVE
21', 46', 71', 96'
B1 B2
P1 P2
I/O BOARD
