Varyscan
®
4 1200 HMI

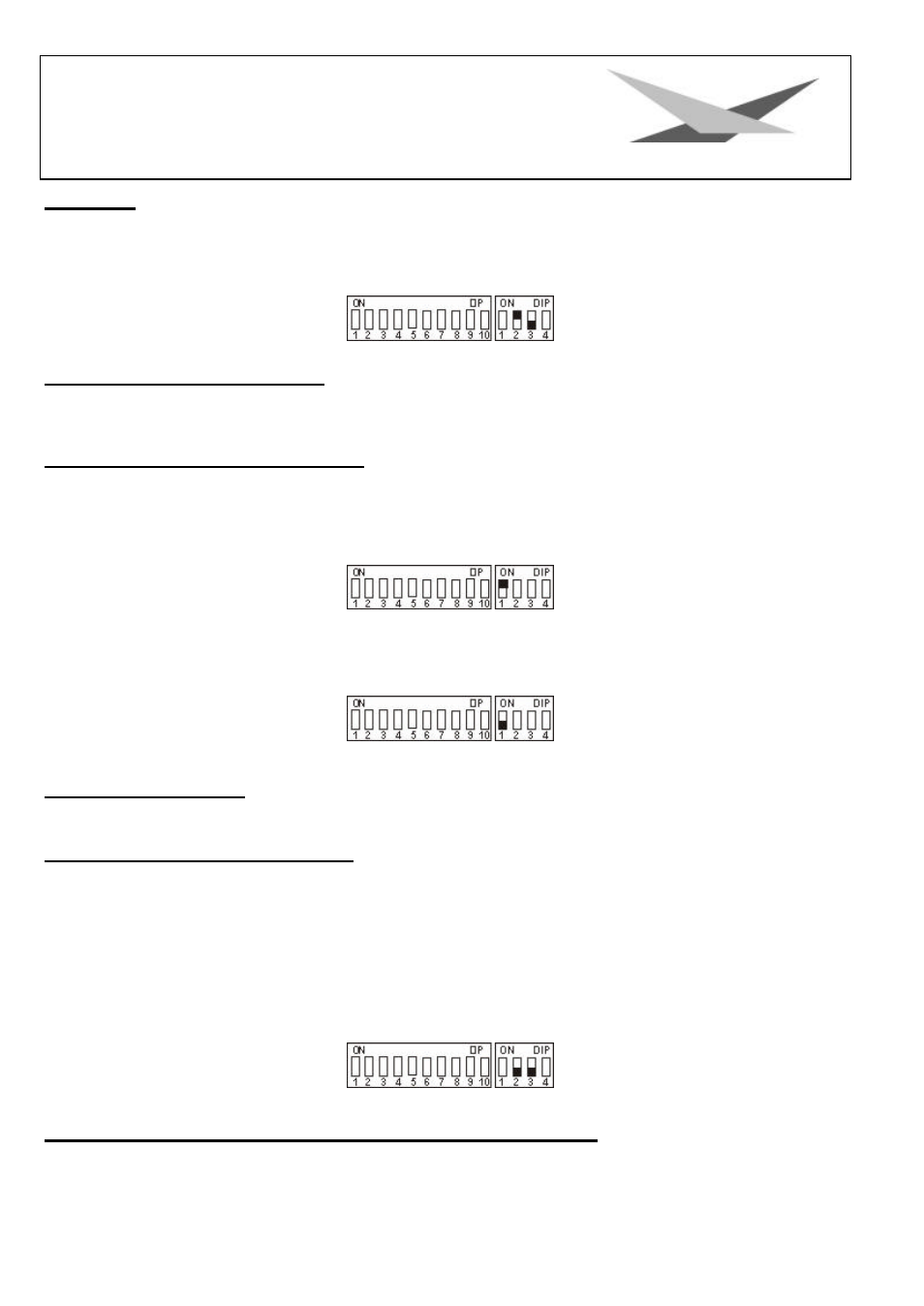

Test Mode
To see the variety of functions of your Varyscan ® easily, start the test mode by turning switch 3 off and switch 2 on at
DIP-switch No.2. Now plug in your scanner and you will largely see it's functions .
Adjustments at DIP-Switch No.2
Before adjusting DMX-addresses, you have to choose a certain drive mode and then make the right choice of addresses.
At DIP-switch No.2 you find 4 switches for choosing the following functions.
Infinitely Variable Colour Changing: DIP-switch No.2 switch 1
i.e. the moment this function is turned on, every DMX-factor between 0 and 128 corresponds to an adjustment of the
colour wheel. You can produce not only half colours but 1/3- 2/3 colours or 1/4- 3/4 colours etc. To choose this function,
turn switch 1 at DIP-switch No.2 on.
Is switch 1 on position off, you get only full colours, respectively half colours.
Optional Drive Modes: DIP-switch No.2 switch 2 and 3
You have 3 DMX-channel formats to your disposal, which are explained precisely in the following text.
1. JB lighting 8 channel drive mode
channel 1 x-axis
channel 2 y-axis
channel 3 gobo
channel 4 colour
channel 5 shutter/dimmer
channel 6 iris
channel 7 rotating gobos; positioning and rotation
channel 8 effect wheel
DIP-switch position: DIP-switch No.2 switch 2 and 3 off
2. 6 channel drive mode (Clay Paky - Goldenscan 3 compatible)
channel 1 iris and gobo rotation
channel 2 colour
channel 3 gobo and effect wheel
channel 4 dimmer/shutter
channel 5 x-axis
channel 6 y-axis
