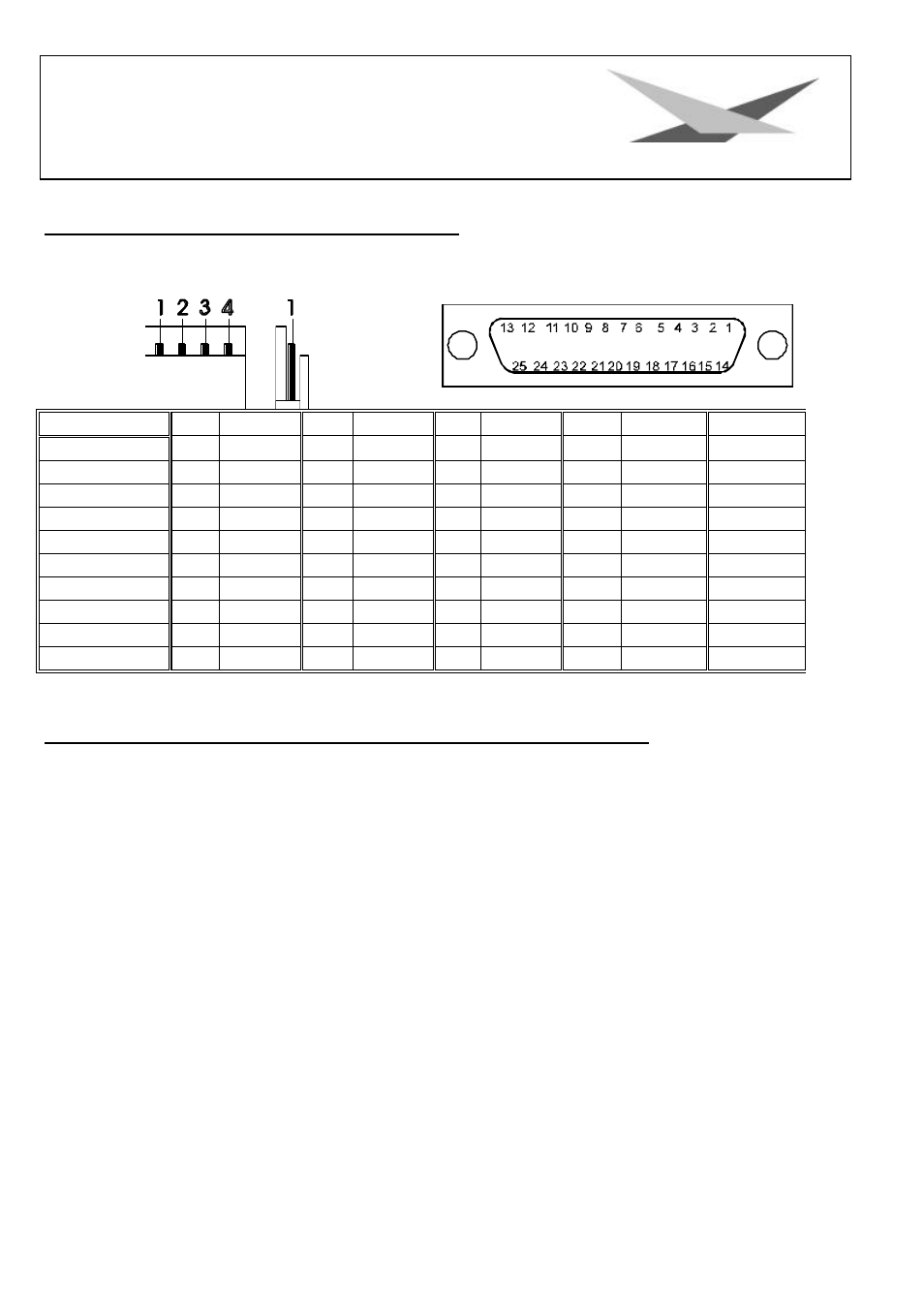

Occupation of connectors and Jumper
Pin colour Pin colour Pin colour Pin colour connector
x-motor 1 blue 2 green 3 rot 4 yellow JP4
y-motor 1 blue 2 white 3 rot 4 yellow JP5
effect wheel 1 blue 2 green 3 rot 4 yellow P2
colour wheel 14 blue 15 green 16 rot 17 yellow P1
shutter/dim.1 5 blue 6 orange 7 rot 8 yellow P2
shutter/dim.2 9 blue 10 orange 11 rot 12 yellow P2
gobo wheel 5 blue 6 green 7 rot 8 yellow P1
gobo rotation 9 blue 10 green 11 rot 12 yellow P1
Iris 1 blue 2 green 3 rot 4 yellow P1
DMX In/Out 1 green 2 black 3 rot 4 white JP3
List of parts or electronic board of Varyscan ® 4 1200 HMI
R1
10M 0,6W R41 30R 0,6W
R2 22K 0,6W R42 60R 0,6W
R3 9*10K Sip 0,25W R43 240R 0,6W
R4 9*10K Sip 0,25W R44 120R 0,6W
R5 10K 0,6W R45 30R 0,6W
R6 10K 0,6W R46 60R 0,6W
R7 10K 0,6W R47 240R 0,6W
R8 2,2K 0,6W R48 120R 0,6W
R9 15K 0,6W R49 1,2R 1W
R10 1,2R 1W R50 1,2R 1W
R11 1K 0,6W R51 30R 0,6W
R12 1,2R 1W R52 60R 0,6W
R13 1K 0,6W R53 240R 0,6W
R14 1,5R 1W R54 120R 0,6W
R15 1K 0,6W R55 30R 0,6W
R16 1,5R 1W R56 60R 0,6W
R17 1K 0,6W R57 240R 0,6W
R18 15K 0,6W R58 120R 0,6W
R19 1,5R 1W R59 300R 0,6W
R20 1,5R 1W R60 150R 0,6W
R21 37R 0,6W R61 75R 0,6W
R22 75R 0,6W R62 37R 0,6W
R23 300R 0,6W R63 300R 0,6W
R24 150R 0,6W R64 150R 0,6W
R25 37R 0,6W R65 75R 0,6W
R26 75R 0,6W R66 37R 0,6W
