KTM 65 SX - Handbuch (Seite 26)

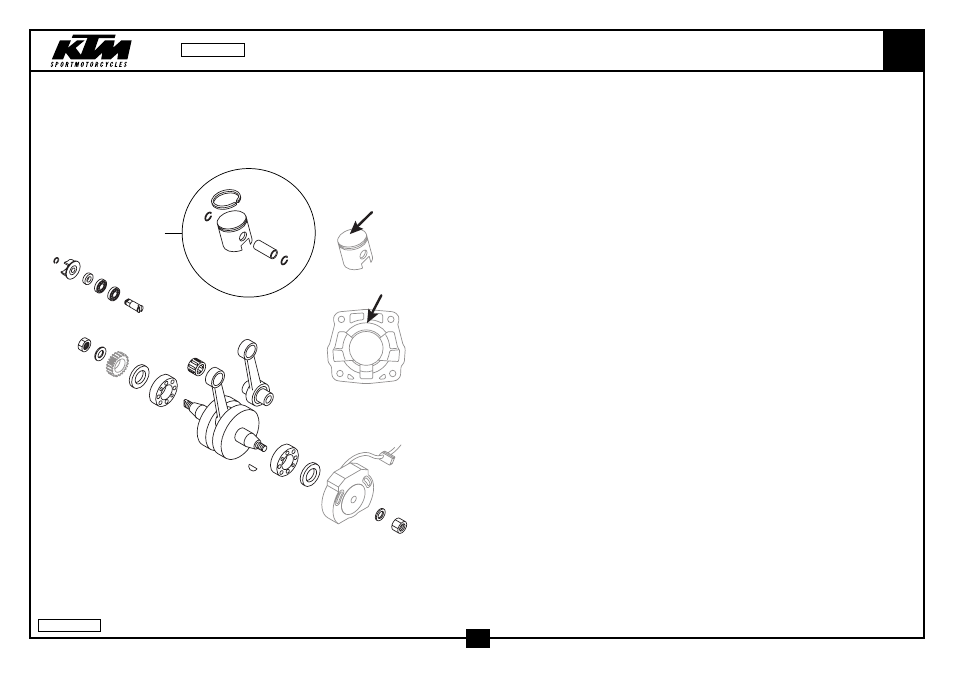

KURBELWELLE, KOLBEN CRANKSHAFT, PISTON 65
A,B,C
A,B,C,D,E,F
X
X
1
3
4
5
5
bk
bl
bm
bm
bo
bo
br
bs
bt
ck
cl
cm
cn
co
cp
cq
cr
ct
02-461.30.2
24
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1 460.30.007.500/ A KOLBEN KPL. 45MM „A“ 65’98 PISTON CPL. 45MM „A“ 65’98 X
1 460.30.007.500/ B KOLBEN KPL. 45MM „B“ 65’98 PISTON CPL. 45MM „B“ 65’98 X
1 460.30.007.500/ C KOLBEN KPL. 45MM „C“ 65’98 PISTON CPL. 45MM „C“ 65’98 X
1* 460.30.007.500/ D KOLBEN KPL. 45MM „D“ 65’98 PISTON CPL. 45MM „D“ 65’98 X
1* 460.30.007.500/ E KOLBEN KPL. 45MM „E“ 65’98 PISTON CPL. 45MM „E“ 65’98 X
1* 460.30.007.500/ F KOLBEN KPL. 45MM „F“ 65’98 PISTON CPL. 45MM „F“ 65’98 X
3 460.30.033.000 KOLBENBOLZEN 12X38 PISTON PIN 12X38 1
4 460.30.030.500 KOLBENRING 45MM 65CCM PISTON RING 45MM 65CCM 1
5 460.30.074.000 DRAHTSPRENGRING 12X1 CIRCLIP 12X1 2
10 460.30.018.100 KURBELWELLE KPL.HUB 40MM ‘99 CRANKSHAFT CPL. STROKE 40MM’99 1
11 460.30.015.000 PLEUEL-REP.SATZ 60/65 CCM CONN. ROD REPAIR SET 60/65 CCM 1
12* 460.30.082.200 RILLENKUGELLAGER 20X52X15 NTN GROOVED BALL BEAR.20X52X15 NTN 2
14 460.30.077.000 WELLENDICHTRING 20X35X6 SHAFT SEAL RING 20X35X6 2
17 460.30.034.000 NADELLAGER KOLBENBOLZ.12X15X17 NEEDLE BEAR.PISTONPIN 12X15X17 1
18 460.30.078.100 SICHERUNGSSCHEIBE 14X20X1 LOCKING WASHER 14X20X1 X
19 460.30.029.100 SK-MUTTER M14X1,25X5 ‘99 HH-NUT M14X1,25X5 ‘99 1
20 460.35.056.100 WELLENDICHTRING 10X18X4 SHAFT SEAL RING 10X18X4 1
21 460.35.057.000 WASSERPUMPENLAGER 10X19X5 WATER PUMP BEARING 10X19X5 1
22 460.35.058.000 WA.PU.LAGER 10X19X5 DOPPELLIP. WA.PU.BEAR. 10X19X5 DOUBLELIP 1
23 460.35.054.000 WASSERPUMPENWELLE 60/65 ‘99 WATER PUMP SHAFT 60/65 ‘99 1
24 460.35.055.100 WASSERPUMPENRAD 60/65 ‘99 WATER PUMP WHEEL 60/65 ‘99 1
25 0471 090010 SICHERUNGSRING DIN0471- 9X1 CIRCLIP DIN0471- 9X1 1
26 0127 100003 FEDERRING DIN0127-B10 SPRING RING DIN0127-B10 1
27 460.30.028.000 SK.MUTTER M10X1,25X17 SW=15 HH NUT M10X1,25X17 WS=15 1
29 460.30.075.000 SCHEIBENFEDER 3X3,7X9,7 WOODRUFF KEY 3X3,7X9,7 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
02-461.30.2
2002
