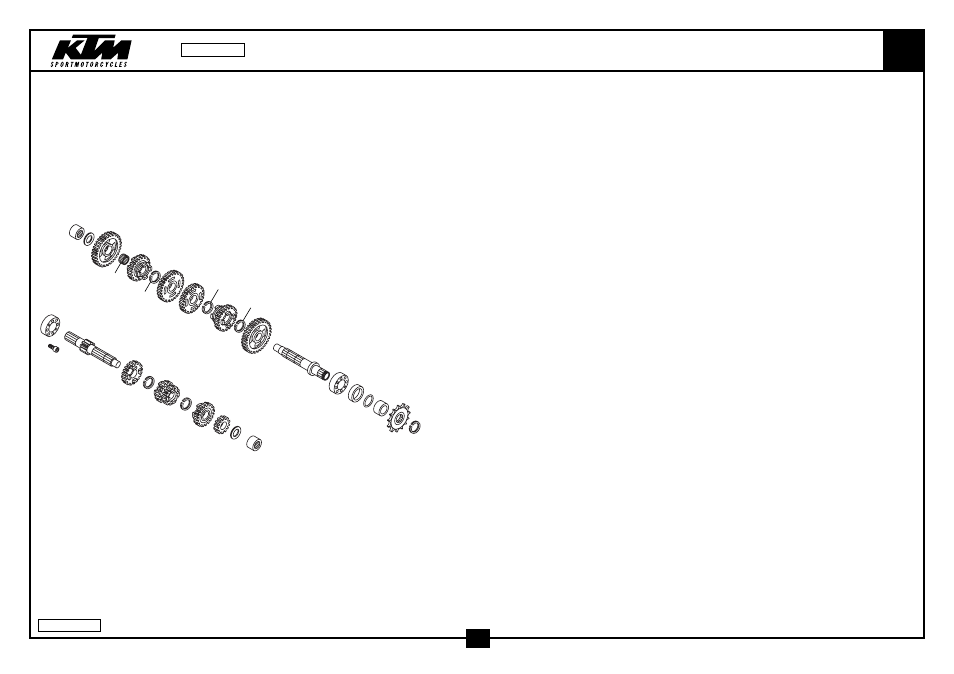

GETRIEBE TRANSMISSION 65
1
2
3
4
5
7
8
9
bk
6
bl
bm
bp
bq
br
bs
bt
ck
ck
cm
cn
co
co
cp
cp
cs
cs
ct
ck
ck
02-461.33.4
30
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 460.33.011.100 LOSRAD 2.GANG 65 SX 2002 IDLER GEAR 2ND GEAR 65 SX 2002 1
2* 460.33.012.200 SCHIEBERAD 6.GANG 65 SX 2002 SLIDING GEAR 6TH GEAR 65 SX 02 1
3* 460.33.013.100 LOSRAD 3.GANG 65 SX 2002 IDLER GEAR 3RD GEAR 65 SX 2002 1
4* 460.33.014.100 LOSRAD 4.GANG 65 SX 2002 IDLER GEAR 4TH GEAR 65 SX 2002 1
5* 460.33.015.200 SCHIEBERAD 5.GANG 65 SX 2002 SLIDING GEAR 5TH GEAR 65 SX 02 1
6* 460.33.016.200 LOSRAD 1.GANG 65 SX 2002 IDLER GEAR 1ST GEAR 65 SX 2002 1
7 460.33.002.100 ABTRIEBSWELLE 65SX 2001 COUNTER SHAFT 65SX 2001 1
8 460.33.001.000 ANTRIEBSWELLE 13-Z MAIN SHAFT 13-T 1
9* 460.33.007.200 LOSRAD 5.GANG 65 SX 2002 IDLER GEAR 5TH GEAR 65 SX 2002 1
10* 460.33.008.200 SCHIEBERAD 3./4.GANG 65SX 2002 SLIDING GEAR 3RD/4TH G.65SX 02 1
11* 460.33.009.200 LOSRAD 6.GANG 65 SX 2002 IDLER GEAR 6TH GEAR 65 SX 2002 1
12 460.33.010.000 FESTRAD 2.GANG 16-Z SOLID GEAR 2ND GEAR 16-T 1
15 460.33.029.013 KETTENRITZEL 13-Z 60/65 SPROCKET 13-T 60/65 X
15* 460.33.029.014 KETTENRITZEL 14-Z 65 SX 2002 SPROCKET 14-T 65 SX 2002 1
16 460.33.030.000 DISTANZBÜCHSE KETTENRITZEL DISTANCE BUSHING SPROCKET 1
17 460.33.031.000 O-RING 18,77X1,78 O-RING 18,77X1,78 1
18 0760 263570 WELLENDICHTRING 26X35X7 B SHAFT SEAL RING 26X35X7 B 1
19 460.33.028.000 RILLENKUGELLAGER 20X42X12 GROOVED BALL BEARING 20X42X12 1
20 490.33.091.000 SEEGERRING AS20X1,75 DIN 471 CIRCLIP AS20X1,75 4
22 460.33.020.000 NADELKRANZ 14X18X8 NEEDLE BEARING 14X18X8 1
23 460.33.023.000 SICH.SCHRAUBE M6X10 SPEZIAL SPECIAL SCREW M6X10 1
24 490.33.013.000 ANLAUFSCHEIBE 12,1X25X1 STOP DISK 12,1X25X1 2
25 460.33.026.000 NADELLAGER NK12/12A 12X19X12 NEEDLE BEARING NK12 12X19X12 2
28 460.33.022.000 SICHERUNGSRING SW=17X1,2 CIRCLIP WS=17X1,2 2
29 460.33.025.000 RILLENKUGELLAGER SKF98203/C3 GROOVED BALL BEAR.SKF98203/C3 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
02-461.33.4
2002
