The FIBRE-Power expansion
G&D FIBREVision · 55
English
Allocating the connection cable for the panel
The connection cable, which is provided in the scope of delivery has to be fixed to the

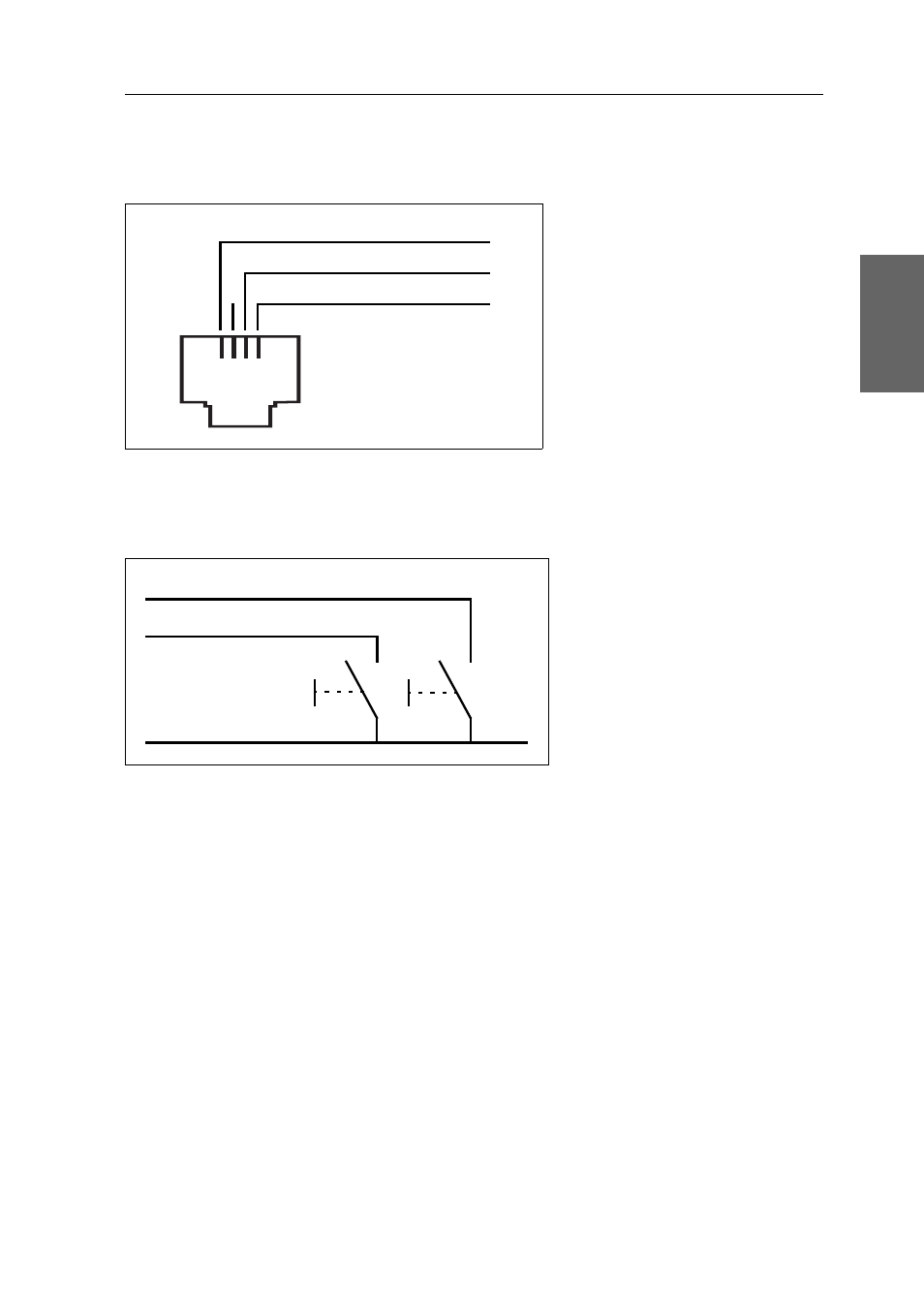

panel. The following figure illustrates how the pins are assigned to the panel’s functions:
To switch one of the ATX-Power or Reset signals, the signal has to be conductively
connected to the shared minus contact (pin 4):
Figure 10: Pin assignment to the functions of the panel
Figure 11: Basic circuit with buttons for ATX-Power and Reset
1 2 3 4
I1 SW1_ATXPWR# (Pin 1)
I2 SW2_RESET# (Pin 3)
- 0V (Pin 4)
I1 SW1_ATXPWR# (Pin 1)
I2 SW2_RESET# (Pin 3)
- 0V (Pin 4)
