13

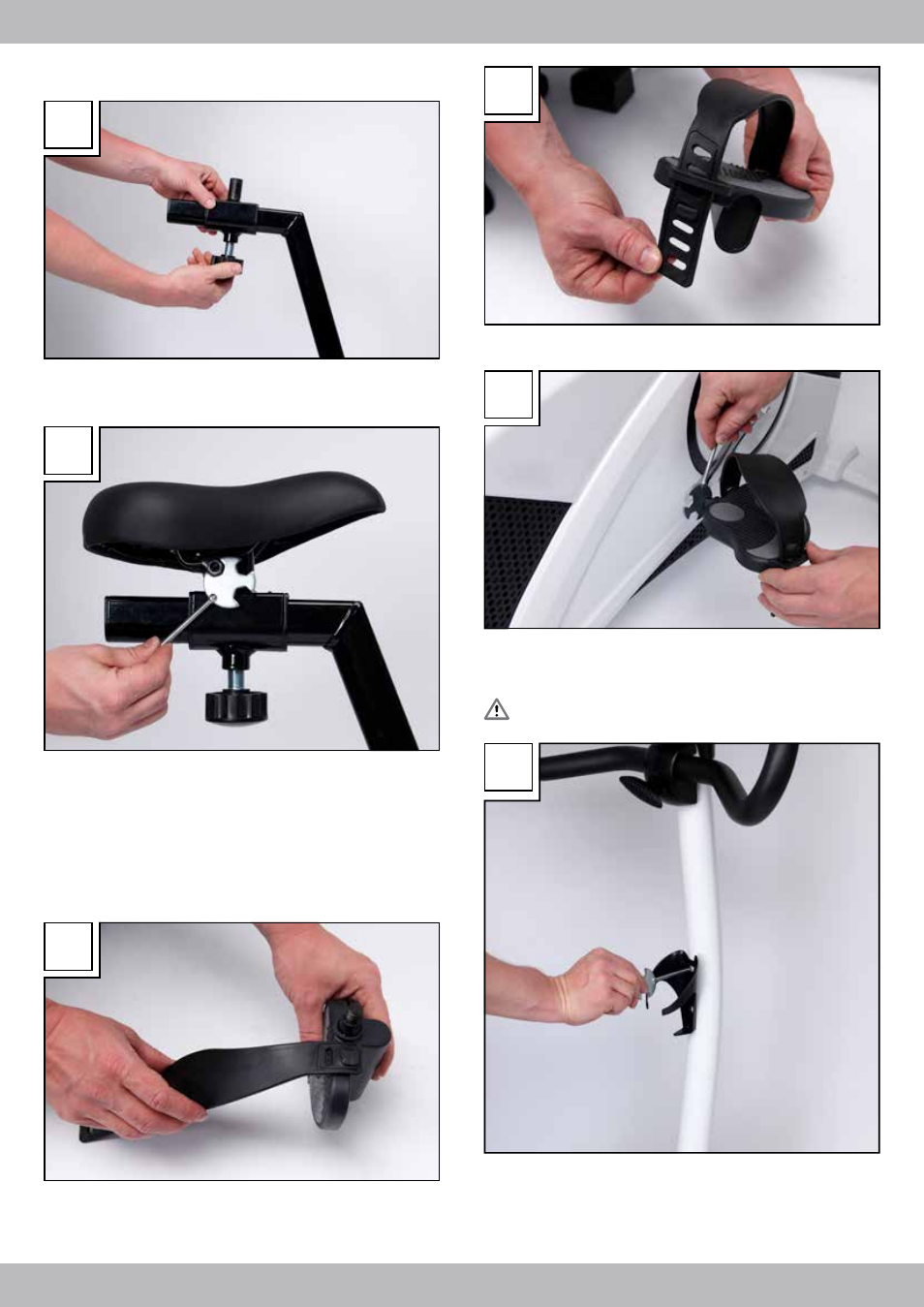

Slide the seat clamp onto the seat tube and securely tighten the adjusting
screw (Fig. 6a).
Now place the seat onto the seat clamp and use the all-purpose tool
to securely tighten the clamping screw located underneath the seat
(Fig. 6b).
Assembling the pedal
To assemble the pedal you will need the pedals (32R, 32L) the pedal
straps (32R, 32L) and the all-purpose tool. First attach the pedal straps to
the pedals, hooking them into the hooks to the left and right of the pedals
(Fig. 7a and 7b). Please note the respective right/left marking on the
pedals and pedal straps.
Assemble the pedal marked “R” to the right hand side of the foot treadle,
looking in the direction of movement, and the pedal marked “L” to the left
side.
Tighten the pedal screws with the all-purpose tool (Fig. 7c). Please note
the pedal on the left side must be tightened counter-clockwise.
Assembling the water bottle holder (16)
Mount the bottle holder (16) to the handle bar support using two screws
(13) (Fig. 8). You can now place the water bottle into the holder.
Wash the water bottle (15) thoroughly before using it for the first
time!
6a
6b
7a
7b
7c
8
GB/IE
