Status displays
17 · G&D FIBREVision-USB 2.0

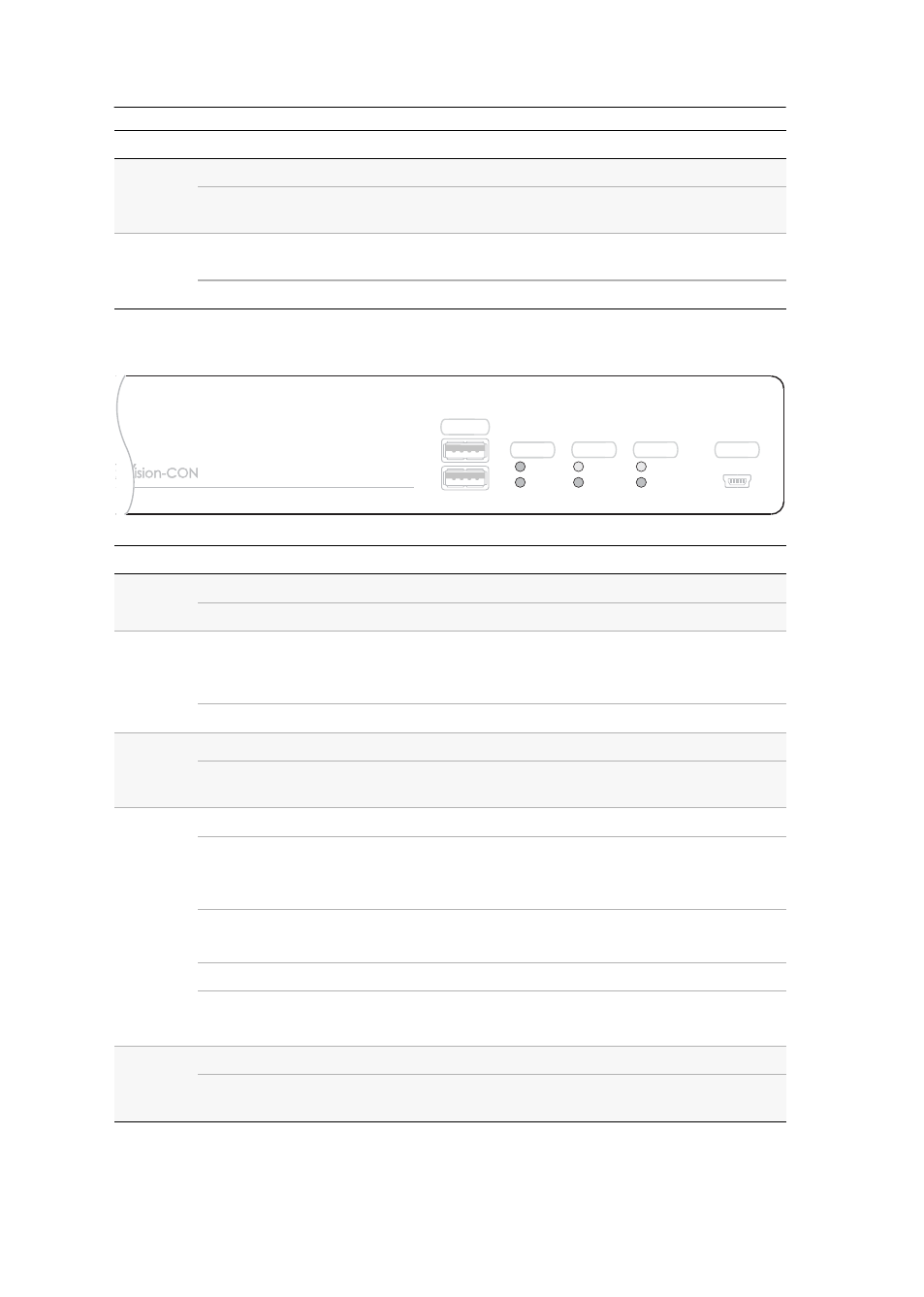

Status displays at the user module
Trans. blinking The communication with the user module could not be established.
on The communication with the user module has been successfully estab-
lished.
Video blinking The video signal coming in from the computer could not be detected or
cannot be processed due to its lacking quality.
on Stable image signal at video input.
LED Status Meaning
K/M blinking No keyboard (PS/2 or USB) was found
on A keyboard (PS/2 or USB) was found.
Main off The power switch is turned off or the connection with the mains could
not be established.
Please check if the power cable is properly connected to the device.
on The main power supply provides the necessary voltage.
Red. off The optional power pack is not (properly) connected.
on The optional power pack is connected and provides the required voltage
(12 Volt).
Sys. blinking Activated setup mode.
cyclic
blinking
The firmware that the update wizard transmitted to the device is being
transmitted to all system components.
This process may take several minutes.
fast
blinking
only -MC4 multichannel variants:
The temperature in the device exceeds the valid values.
on System ready for operation.
slow
blinking
Defective internal communication.
Restart the device.
Trans. blinking The communication with the computer module could not be established.
on The communication with the computer module has been successfully
established.
LED Status Meaning
USB 2.0
Red.
Main
Power Status
Trans.
Sys. Video
K/M
Console Service
