Assembly
For mounting the safety bracket you will require a drill and a Phillips screwdriver.
Door bar assembly also requires a pair of combination pliers or a size 10 spanner.
Parts Overview:

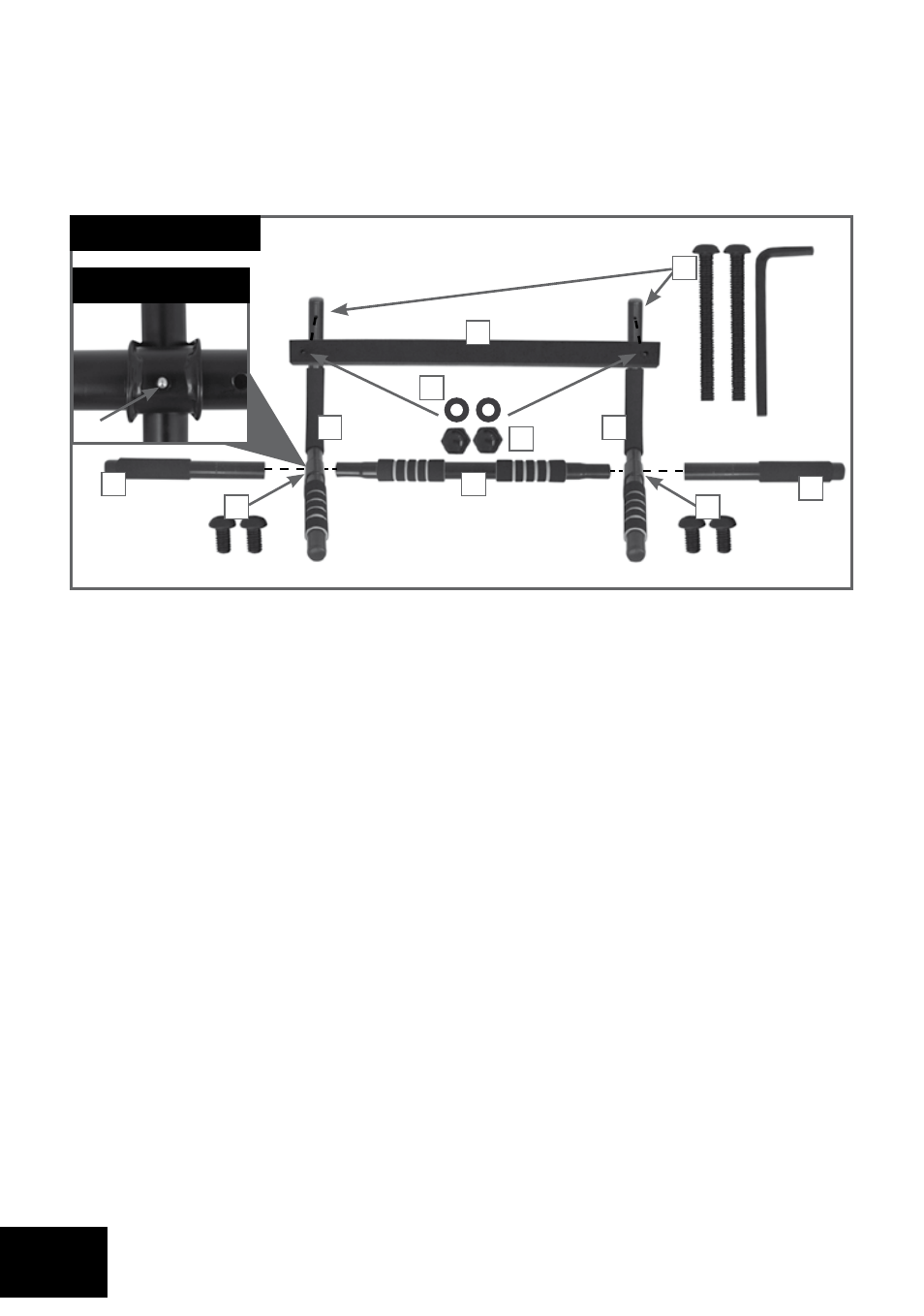

Connect bar A with bar B by pressing the pins in lightly, allowing them to lock into the
docking points of bar B (see Fig. 1b).
Then screw together bars A and C using the screws (E). Then screw bars B and D together
using screws (F) and nuts (G). Place a washer (H) under the nut (G) and tighten.
B B
c A
D
A
Fig. 1a
Fig. 1b
Pin
f
G
e e
H
