CATCenter Installation Guide
3.1.2
Defining the Network Parameters for Network A and/or B
As a final network configuration step, unique settings (e.g. assignment of an IP
address) have to be established for at least one of the network interfaces
located at the back of the CATCenter X8 so that the CATCenter X8 can be
reached.

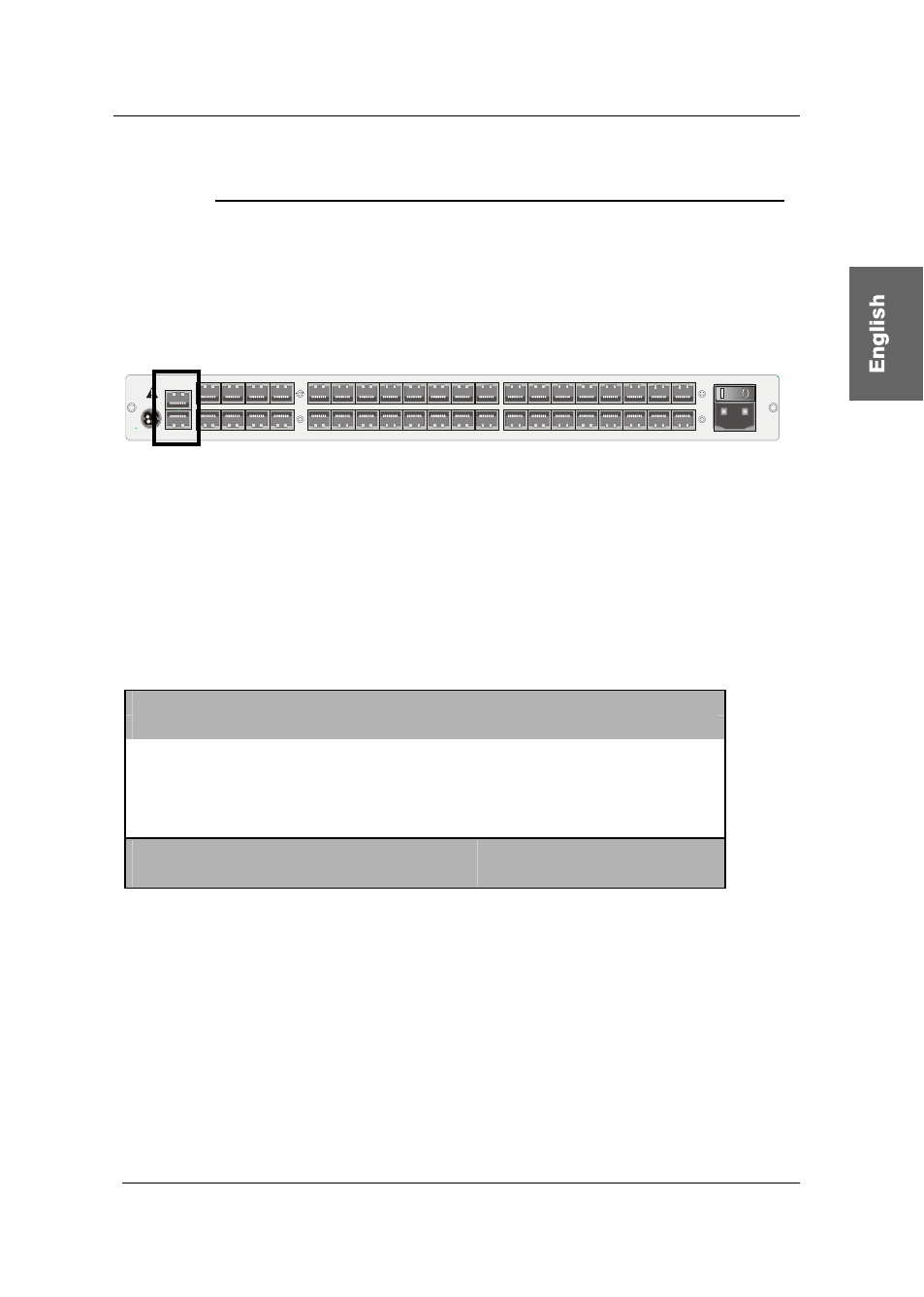

The back of the CATCenter X8 has two network interfaces.
12V DC/3A Network A
Network B
5
6
7
8
Console
1
2
3
4
Console
1
2
3
4
5
6
7
8
CPU
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
CPU
25
26
27
28
29
30
31
32
Red.
Power
Main Power
AC 100-240 V, 47-63 Hz
6
7
2
3
Read instruction
carefully before
installing!
Avoid misuse!
KVM Switch.
Please note that the settings under "Network A" only affect the physical
interface "Network A" on the CATCenter X8.
Since the settings for Network A and Network B are identical, these settings
are explained below using Network A only.
To establish these settings, use the
UP ARROW
and/or
DOWN ARROW
keys
on your keyboard or the mouse to select the entry INTERFACE A in the
NETWORK MANAGEMENT submenu and then press
ENTER
. The following
window opens:
E d i t N e t w o r k A
M A C a d d r e s s
0 0 : 0 F : F 4 : 0 0 : 0 0 : 1 8
Assignment static
Address 1 9 2 . X X X . X X X . X X X
Netmask
2 5 5 . 2 5 5 . 2 5 5 . 0
Connection A u t o
ESC
F2: Save
The second line of the header displays the MAC address of the network
interface Network A. It cannot be edited.
Use the field Assignment to determine whether the CATCenter X8 receives:
•
a static IP address (static)
•
a dynamic IP address (DHCP)
•
no IP address (off)
