Guntermann & Drunck GmbH CATCenter Installation Guide

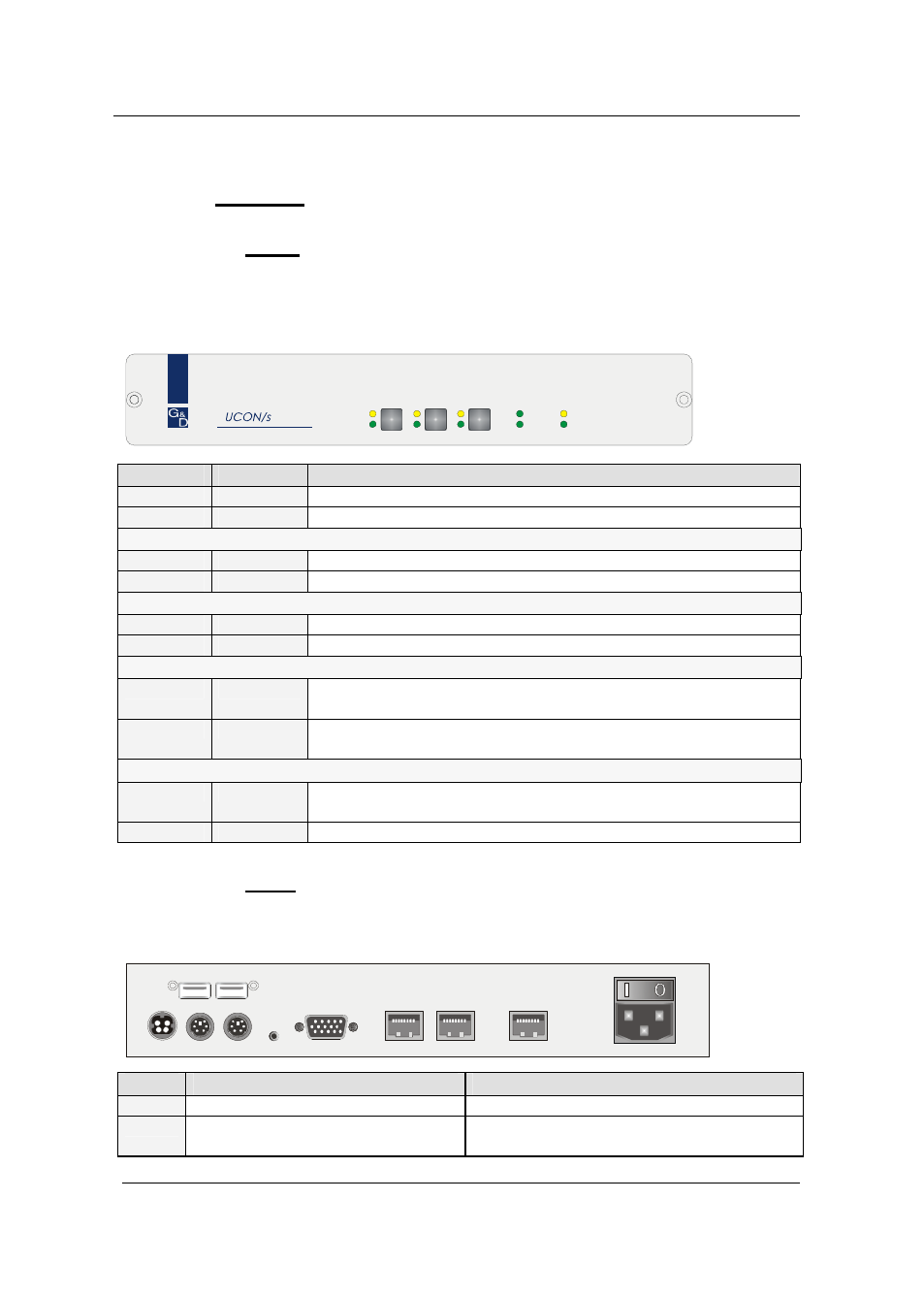

4.3 UCON-s
4.3.1 Front
After connecting the power cable, turn on the UCON-s using the toggle switch
at the back of the device. The LEDs on the front of the UCON-s have the
following meaning:
Red.
Main Active
Status
Remote Power
Status
Active
PC 1 PC 2 Trans
UCON-s
PC1 Active Illuminated when TARGET1 is active.
Status Illuminated when TARGET1 is running.
PC2 Active Illuminated when TARGET2 is active.
Status Illuminated when TARGET2 is running.
Trans Active Illuminated when the CATCenter is being accessed.
Status Illuminated when the CATCenter is running.
Power Red. Illuminated if a redundant power supply is connected and is
supplying 12V.
Main Illuminated if the main power supply is connected and
supplying power.
Remote Active Illuminated when a keyboard has been initialized.
Flashes when no keyboard has been initialized.
Status Always illuminated when the CATCenter is operational.
4.3.2 Back
LEDs for every RJ45 interface are located at the back of the device.
These LEDs have the following meaning:
Mouse Keyb. USB
Keyb. Mouse PS/2
Main Power
AC 100-240 V, 47-63 Hz Monitor PC 1 PC 2 Service Transmission 12V DC/1,2A
Red. Power
Transmission LEDs CPU LEDs
Yellow Port is currently in use by a user Port is currently in use by a user
Green Connection has been established
to the CATCenter.
Connection has been established to the
local CPU via the CATpro2.
Page 32
