26
Left
Links
Gauche
左
L
Right
Rechts
Droite
右
R
Z352
Button Head Screw M3x8mm (Hex Socket)
Flachkopfschraube M3x8mm (Inbus)
Vis tete ronde M3x8mm (six pans creux)
ナベネジ M3x8mm (六角ソケット)
94355
TP. Button Head Screw M3x12mm (Hex Socket)
Flachkopfschneidschraube M3x12mm (Inbus)
Vis TP tete bombee M3x12mm (six pans creux)
T.P. ナベタッピングネジ M3x12mm
Z341
Cap Head Screw 4-40x14mm
Inbusschraube 4-40x14mm
Vis tete cylindrique 4-40x14mm
キャップネジ 4-40x14mm
Z203
Washer M3x6mm
M3x6mm Unterlagscheibe
Rondelle M3x6mm
ワッシャーM3x6mm

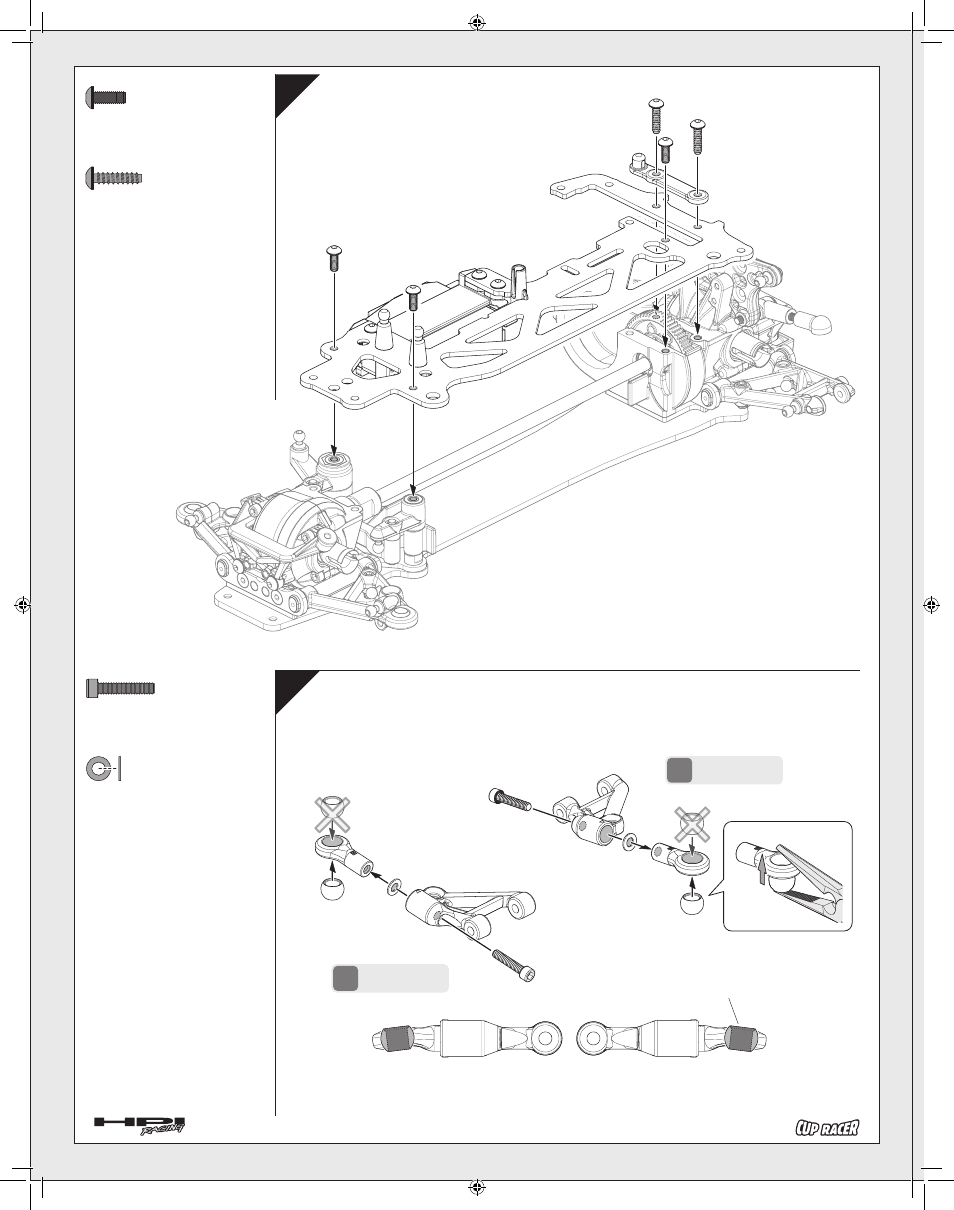

14 Mise en place de la platine supérieure
アッパーデッキの取付け
Upper Deck Installation
Montage des Topdecks
15 Montage du bras supérieur avant
フロントアッパーアームの組立て
Front Upper Arm Assembly
Zusammenbau der oberen Querlenker
Note Direction
Richtung Beachten.
Notez bien la direction.
向きに注意
x3
x2
x2
Z352
Z352
Z203
Z203
86220
86220 86220
86220
Z352
94355
94355
85278 ❽
x2
Z341
Z341
85280 ❷
85280 ❷ 85280 ❽
85280 ❽
