Target modules » DVI-CPU-UC
G&D DVICenter DP32 · 36
Installation

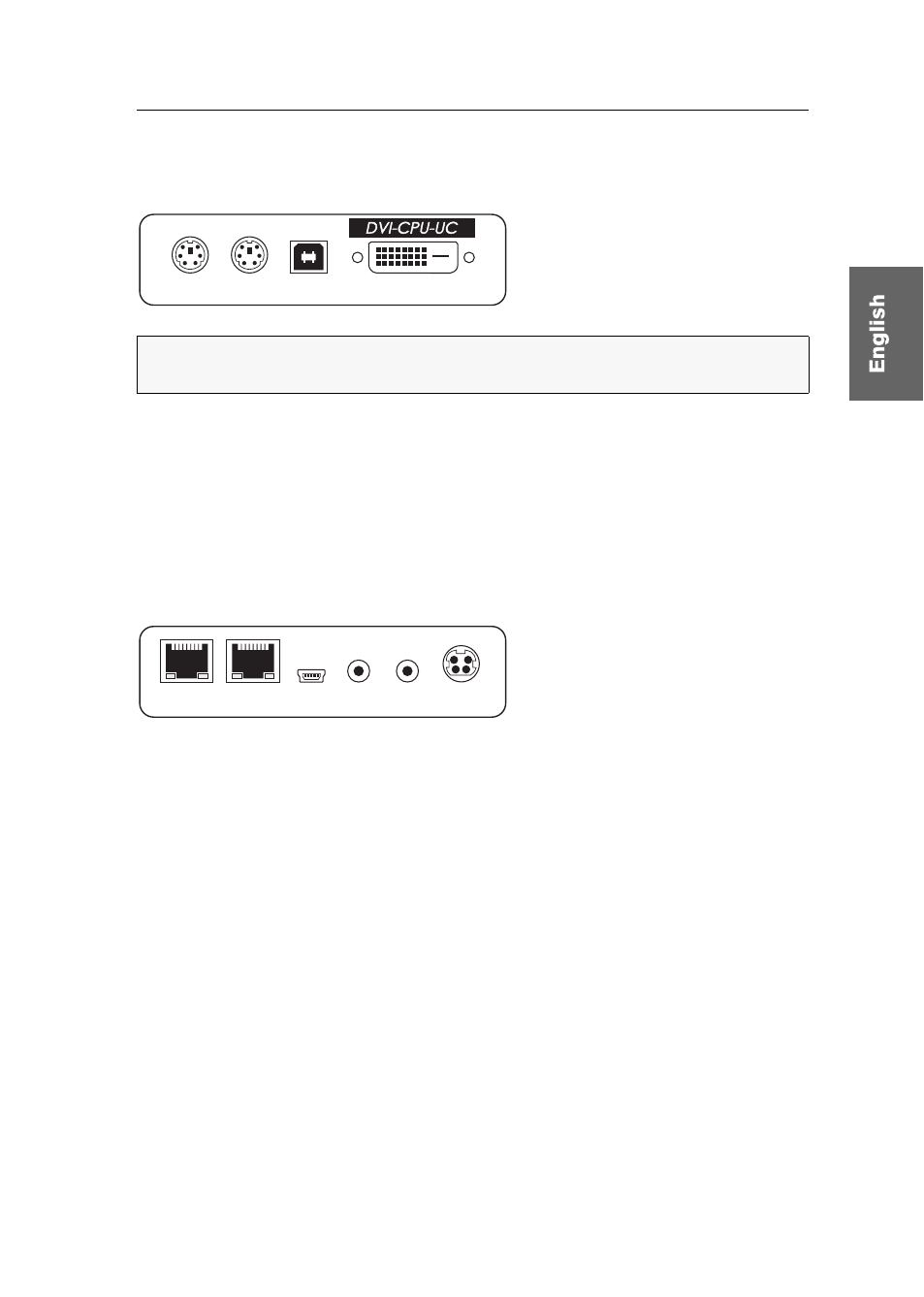

Connecting the target computer
Keyb.: Use the purple plug of a Twin-PS/2 cable to connect the purple PS/2 socket
(keyboard) to this port.
Mouse: Use the green plug of a Twin-PS/2 cable to connect the green PS/2 socket
(mouse) of the computer to this port.
USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this
port.
DVI-D CPU: Use the video cable to connect the digital video output of the computer to
this port.
Line In: Use an audio cable to connect the computer’s Line-Out interface to this port.
Line Out: Use an audio cable to connect the computer’s Line-In interface to this port.
NOTE: Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB ports.
Mouse Keyb. DVI-D CPU USB K/M
Service Trans. 1 Line In Line Out Power In Trans. 2
