Installation « Central Module
5 · G&D DVICenter DP32
Configuration and signalling of the port assignment
In the default settings, the ports 1 to 8 are configured for connecting user modules.
Ports 9 to 32, however, are configured for connecting target modules.

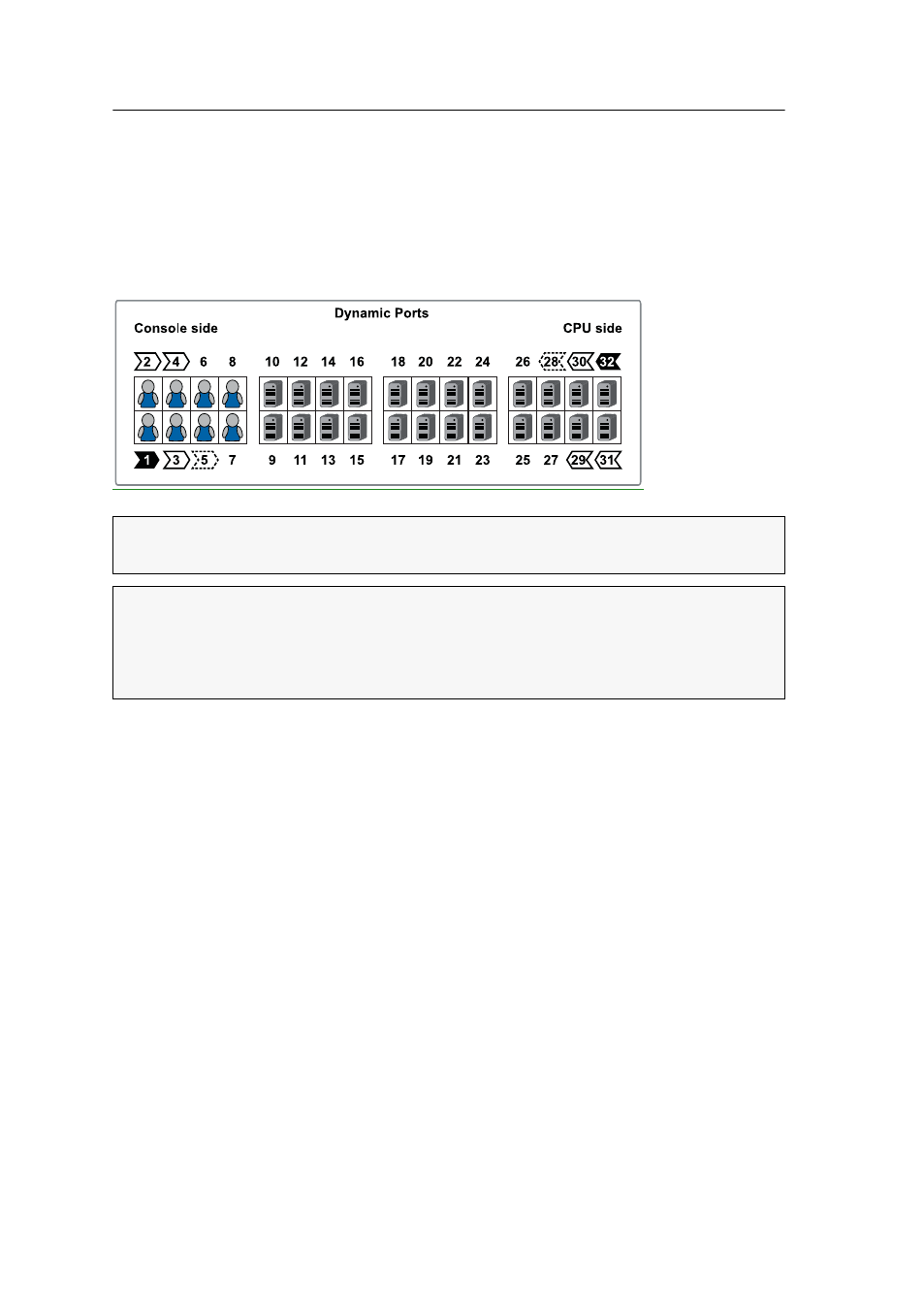

The following screenshot shows the default port assignment. Ports for the user mod-
ules are marked with a user icon. The computer icon, however, marks the ports for
connecting target modules:
NOTE: You can change or enable the port assignment in the web application as
described on page 14.
ADVICE: To facilitate the installation, you can enable the signalling of the port
assignment (see page 15).
The LEDs at the Dynamic Ports light up in yellow or green when connecting the
target modules or the user modules.
