Central Module » Installation
G&D DVICenter DP32 · 6
Installing and connecting user modules
Connecting console devices to user modules
Connect the console devices to the different user modules.
This step is described in the paragraph User module on page 43.
Connecting user modules to the central module
Connect the Transmission interfaces of the user modules to the Dynamic Port that is
configured for connecting a user module. In the default, these are ports 1 to 8.
Use a category 5e (or better) twisted-pair cabling for connecting the devices.
IMPORTANT:
You can place user modules up to 140 metres away from the central
module.
NOTE:
If required, enable the signalling in the Dynamic Ports modes (see page 15).

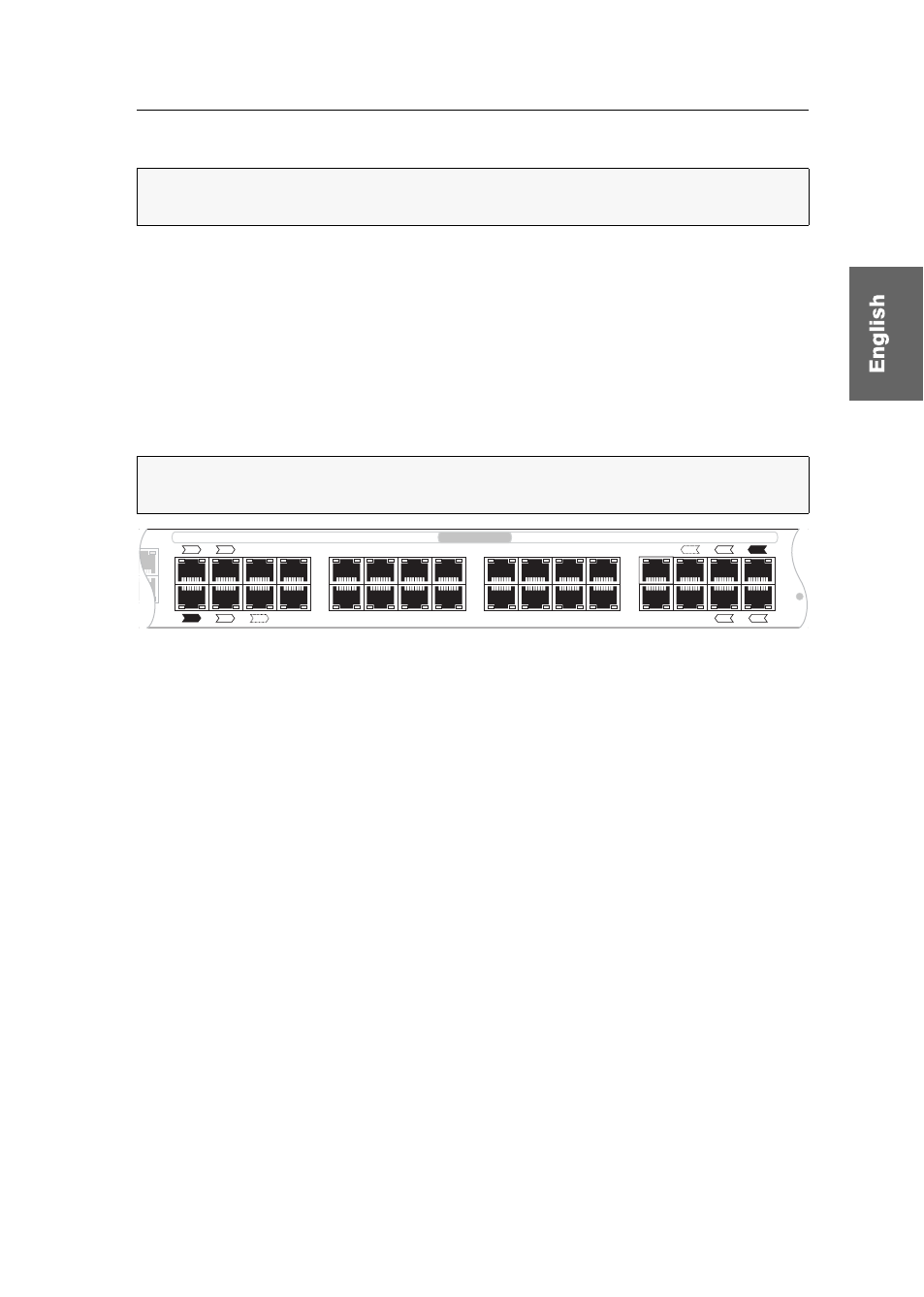

The Dynamic Ports for connecting the user modules are marked by green LEDs.
us In
s Out
Ident.
16
14
12
10
15
13
11
9
24
22
20
18
23
21
19
17
7
3
5
1
6
8
4
2
26
28
32
30
27
25
31
29
Console side
CPU side
Dynamic Ports
